Addressing Modes
11.5 Z8 DIRECT ADDRESSING (DA)
The Direct Addressing mode, as shown in Figure 11-6, specifies
the address of the next instruction to be executed. Only the Con-
11-6
ditional Jump (JP) and Call (CALL) instructions use this ad-
dressing mode.
Program Memory
Lower Addr. Byte
Upper Addr. Byte
Op Code

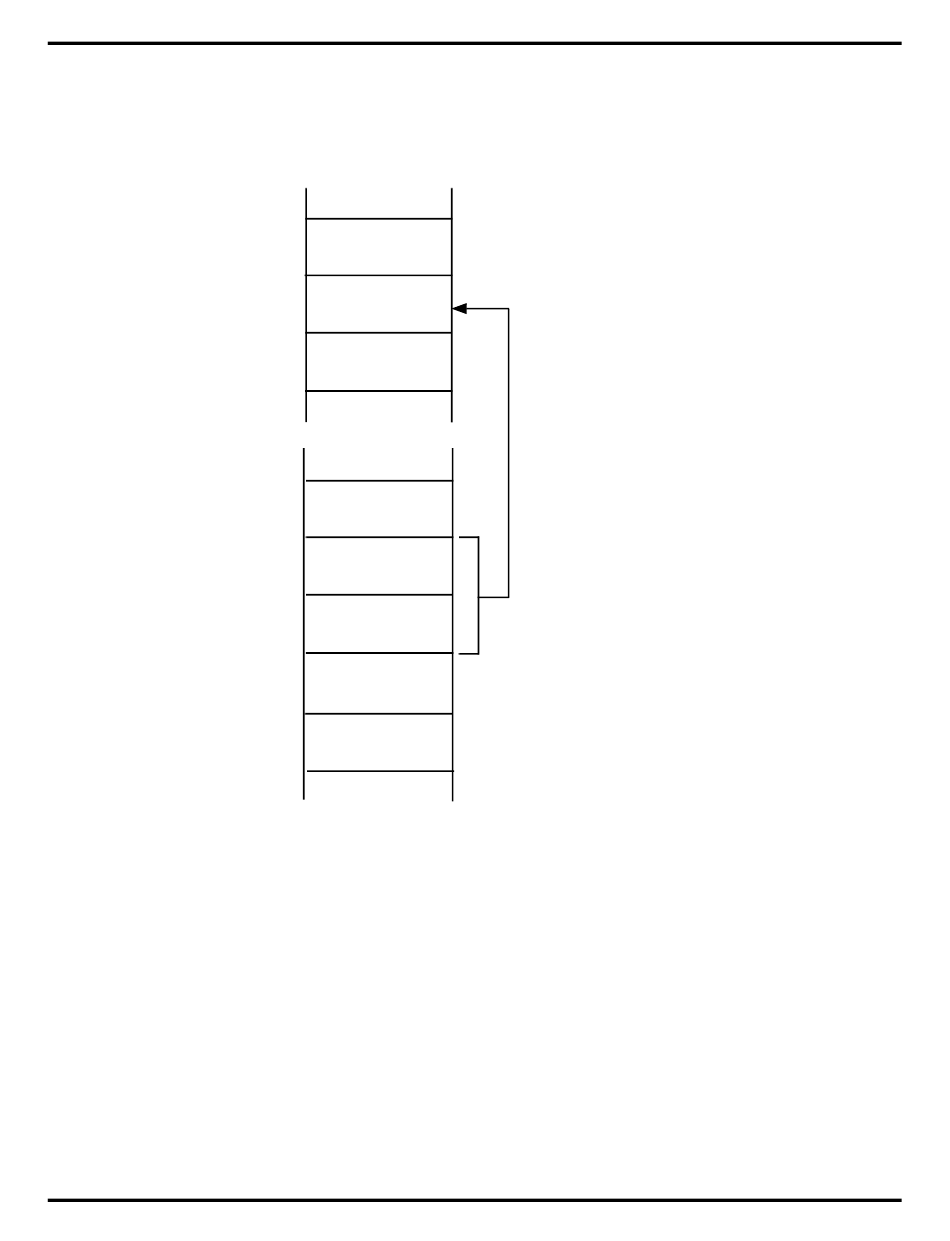

Figure 11-6. Direct Addressing
Program Memory
Address Used
ZiLOG
UM001601-0803
