2.3.7 Activity and Link LEDs

2.3.7.1 Verifying the Network Connectivity and Data Rate
When you plug in the Ethernet cable or power supply to the Intercom, the following occurs:
•
•
Operations Guide
The square, GREEN Link/Activity LED blinks when there is network activity (see
The square, AMBER 100Mb Link LED above the Ethernet port indicates that a 100Mb network
connection has been established (see
Installing the SIP-enabled h.264 Video Outdoor Intercom with Keypad
Figure 2-12).

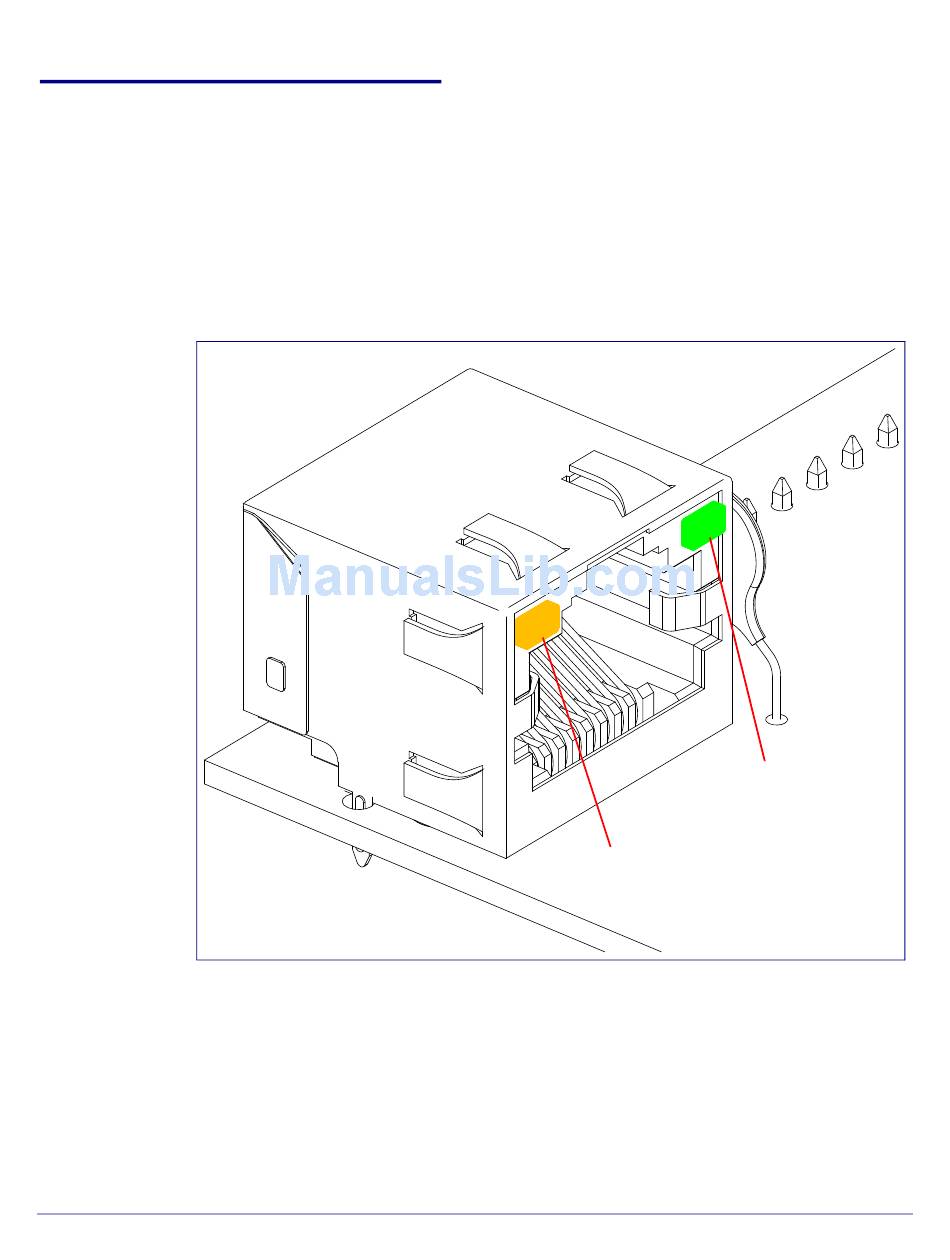

Figure 2-12. Activity and Link LED
100Mb Link
LED (AMBER)
931338B
Intercom Setup
Figure 2-12).
Link/Activity
LED (GREEN)
