2.3.5 Activity and Link LEDs

2.3.5.1 Verifying the Network Connectivity and Data Rate
When you plug in the Ethernet cable or power supply to the Intercom, the following occurs:
•
•
Activit
Operations Guide
The square, YELLOW Activity LED blinks when there is network activity (see
The square, GREEN Link LED above the Ethernet port indicates that the network connection
has been established (see
Link
Figure 2-8).

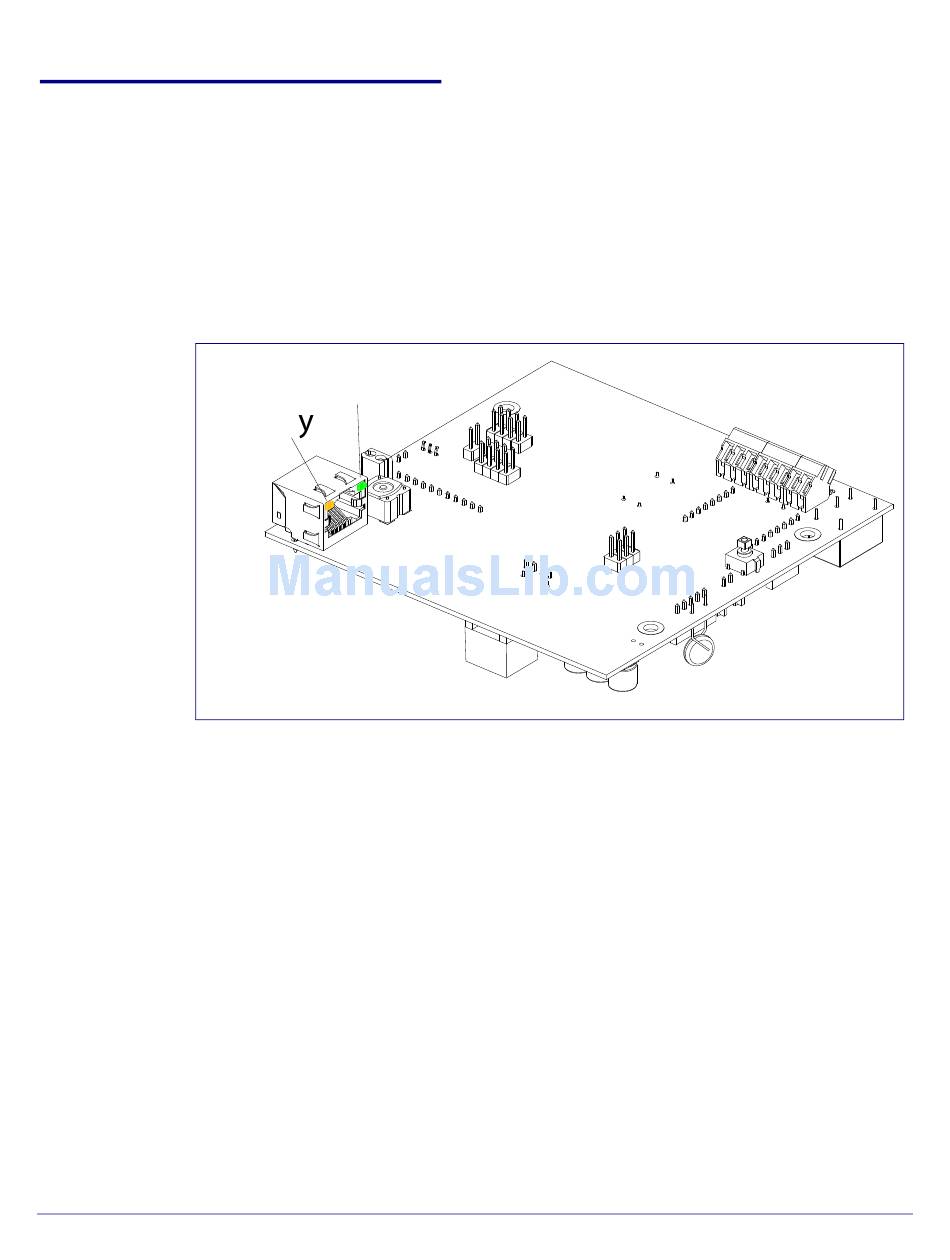

Figure 2-8. Activity and Link LED
