SmartFusion2 Dual-Axis Motor Control Starter Kit
The GUI installers are available for download at:
http://soc.microsemi.com/download/rsc/?f=m2s_dg0598_liberov11p8sp2_gui
The GUI installer files include:
• GUI installer
• readme.txt
For the first time users, the GUI and drivers should be installed. The GUI can be installed using the GUI
installer and the drivers can be installed using the instructions provided in
page 5. If a previous version of the GUI is installed, then SF2 Dual Axis Motor Control GUI.exe
file must be executed to run the GUI.
2.4

Demo Design Features

The demo design runs:
• A single permanent-magnet synchronous motor (PMSM) using sensor less field oriented control
(FOC) algorithm
• A single stepper motor using the micro-stepping algorithm
The GUI provided with the demo is used to configure and control the motors. The GUI can also plot
certain debug variables and display motor speed and current values.
2.5

Setting Up the Demo Design

This following sections describe how to setup the demo design.
2.5.1

Setting Up the Hardware

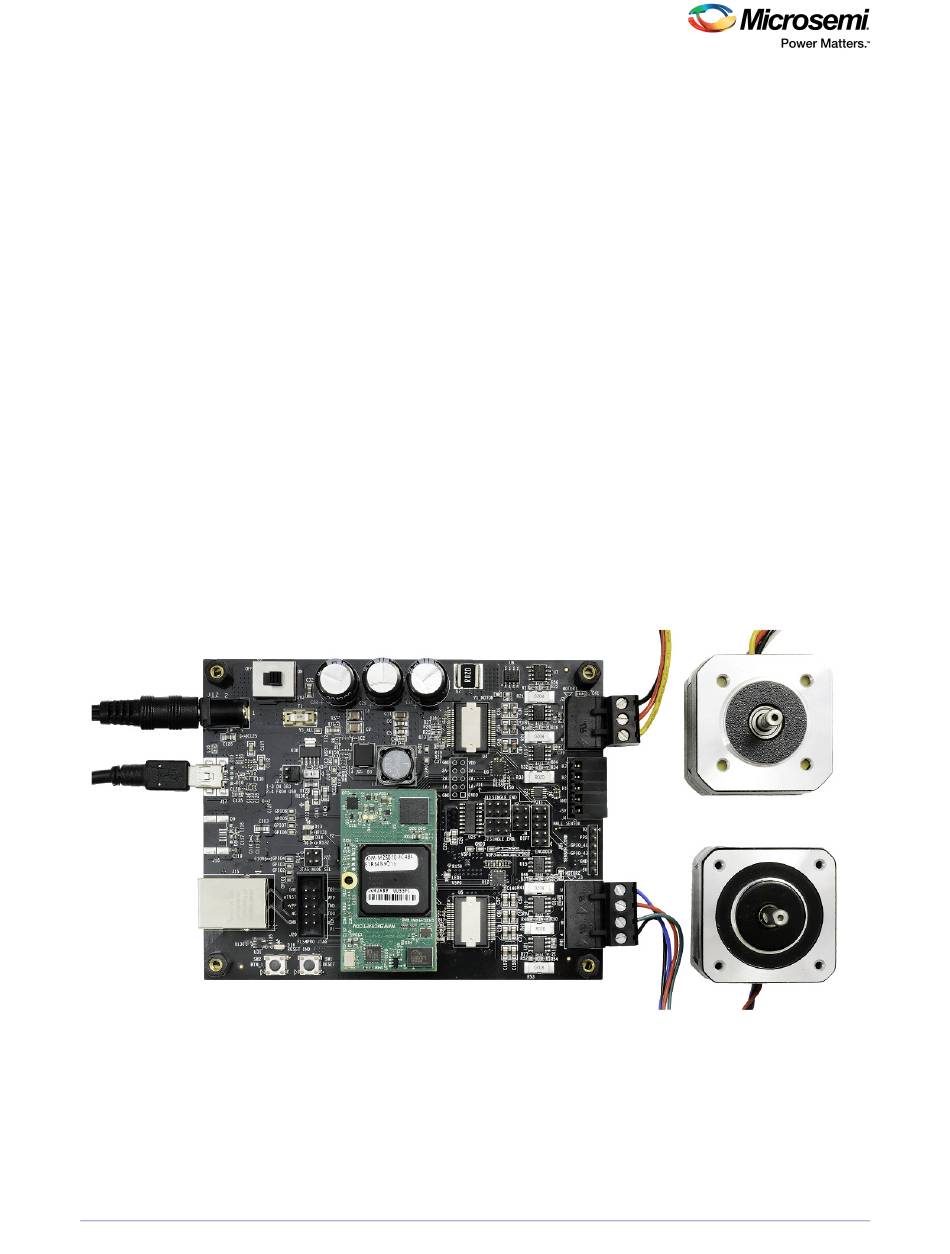

The following figure shows the hardware setup for one BLDC motor in sensorless FOC and a stepper
motor in FOC.
Figure 1 • SmartFusion2 Dual Axis Motor Control Demo Hardware Setup
DG0598 Demo Guide Revision 7.0
GUI Driver Configuration,
