SmartFusion2 Dual-Axis Motor Control Starter Kit
2.
In the SmartFusion2 Motor Control GUI, select the USB device with VID 0x1514 and PID 0x2015
(USB0::0x1514::0x2015..) from the USB DEVICE drop-down list.

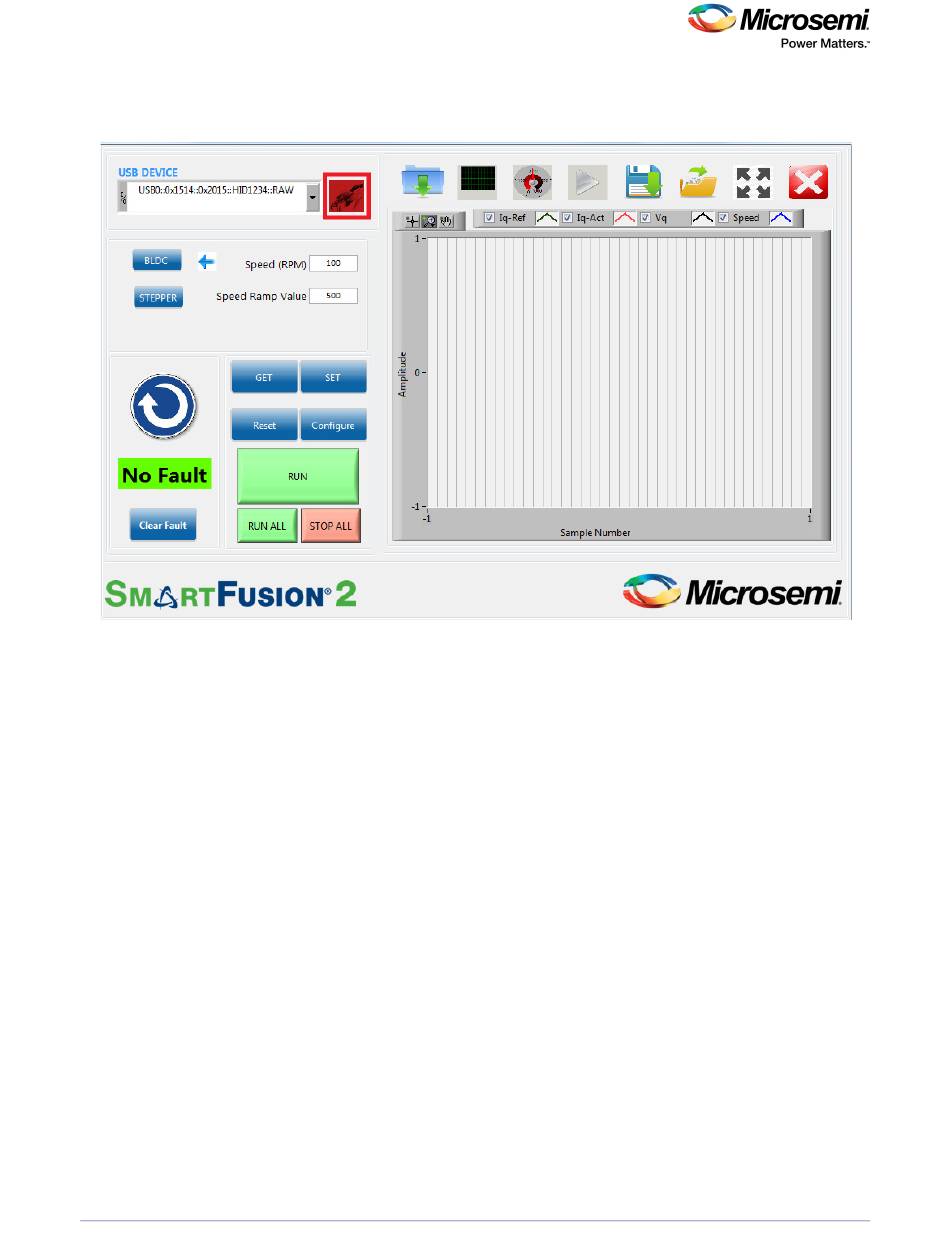

Figure 14 • SmartFusion2 Motor Control GUI - Launch Window
3.
Click Connect. On successful connection, the Connect button (highlighted in
turns green.
DG0598 Demo Guide Revision 7.0
Figure 14,
page 13)
13
