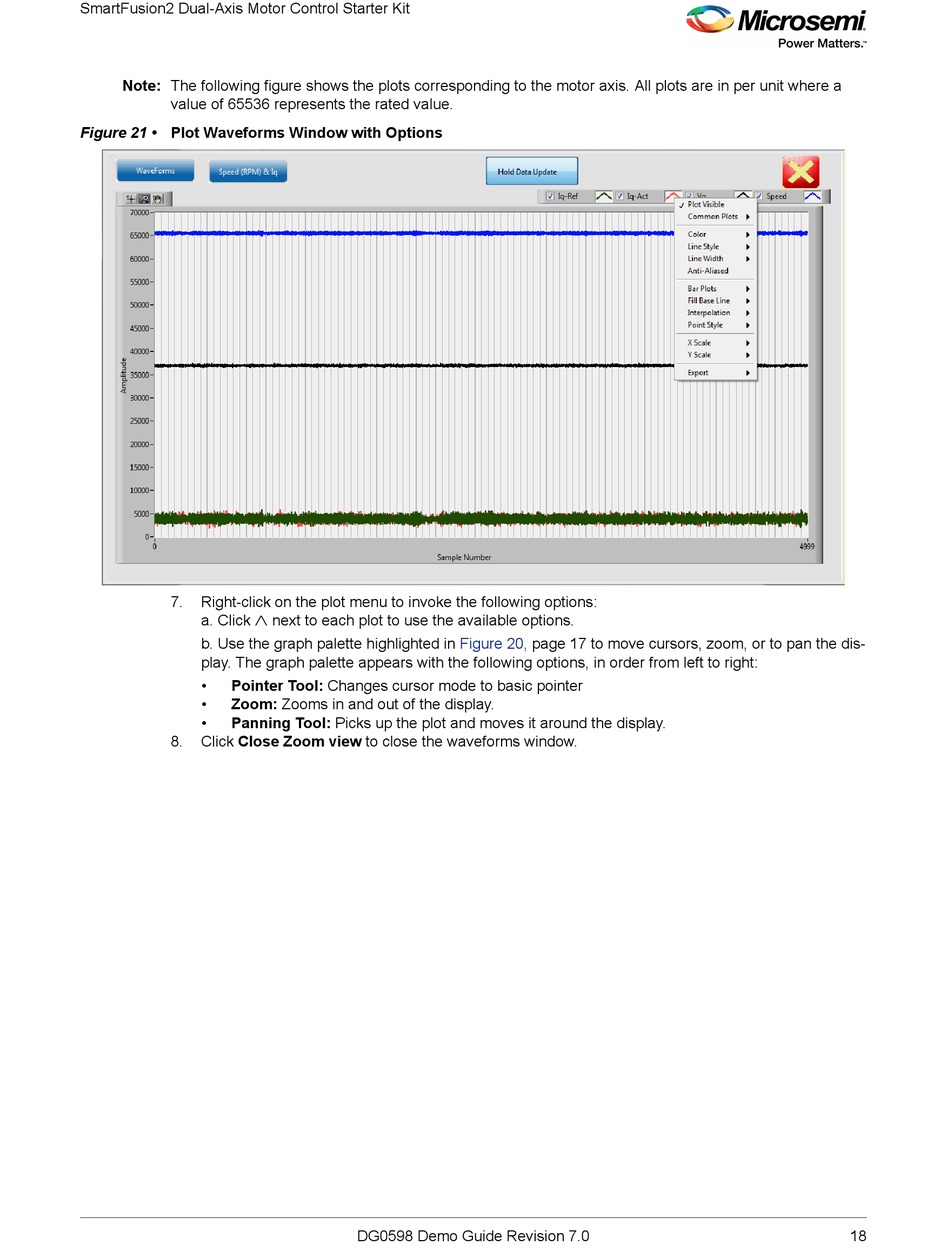

Note: The following figure shows the plots corresponding to the motor axis. All plots are in per unit where a
value of 65536 represents the rated value.
Figure 21 • Plot Waveforms Window with Options
7. Right-click on the plot menu to invoke the following options:

a. Click
b. Use the graph palette highlighted in
play. The graph palette appears with the following options, in order from left to right:
• Pointer Tool: Changes cursor mode to basic pointer
• Zoom: Zooms in and out of the display.
• Panning Tool: Picks up the plot and moves it around the display.
8. Click Close Zoom view to close the waveforms window.
next to each plot to use the available options.
DG0598 Demo Guide Revision 7.0
Figure 20, page 17 to move cursors, zoom, or to pan the dis-
