SmartFusion2 Dual-Axis Motor Control Starter Kit
2.9
Register Dump Feature
The register dump feature generates a csv file with data to be programmed in each FPGA register, which
is calculated based on motor configuration inputs.
1.

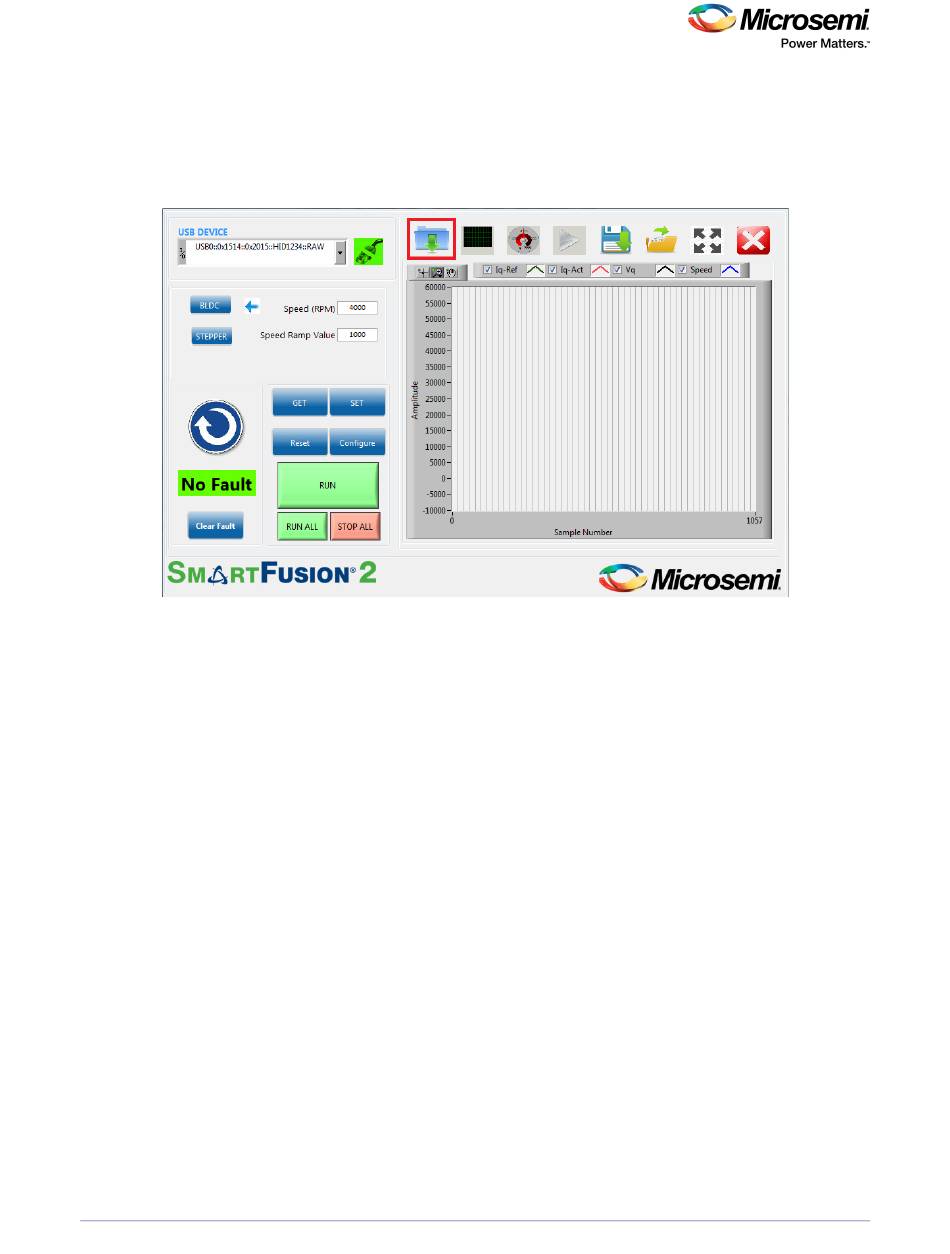

Click the icon marked in the following figure to open the Register Dump window.
Figure 27 • Register Dump window
DG0598 Demo Guide Revision 7.0
24
