SmartFusion2 Dual-Axis Motor Control Starter Kit

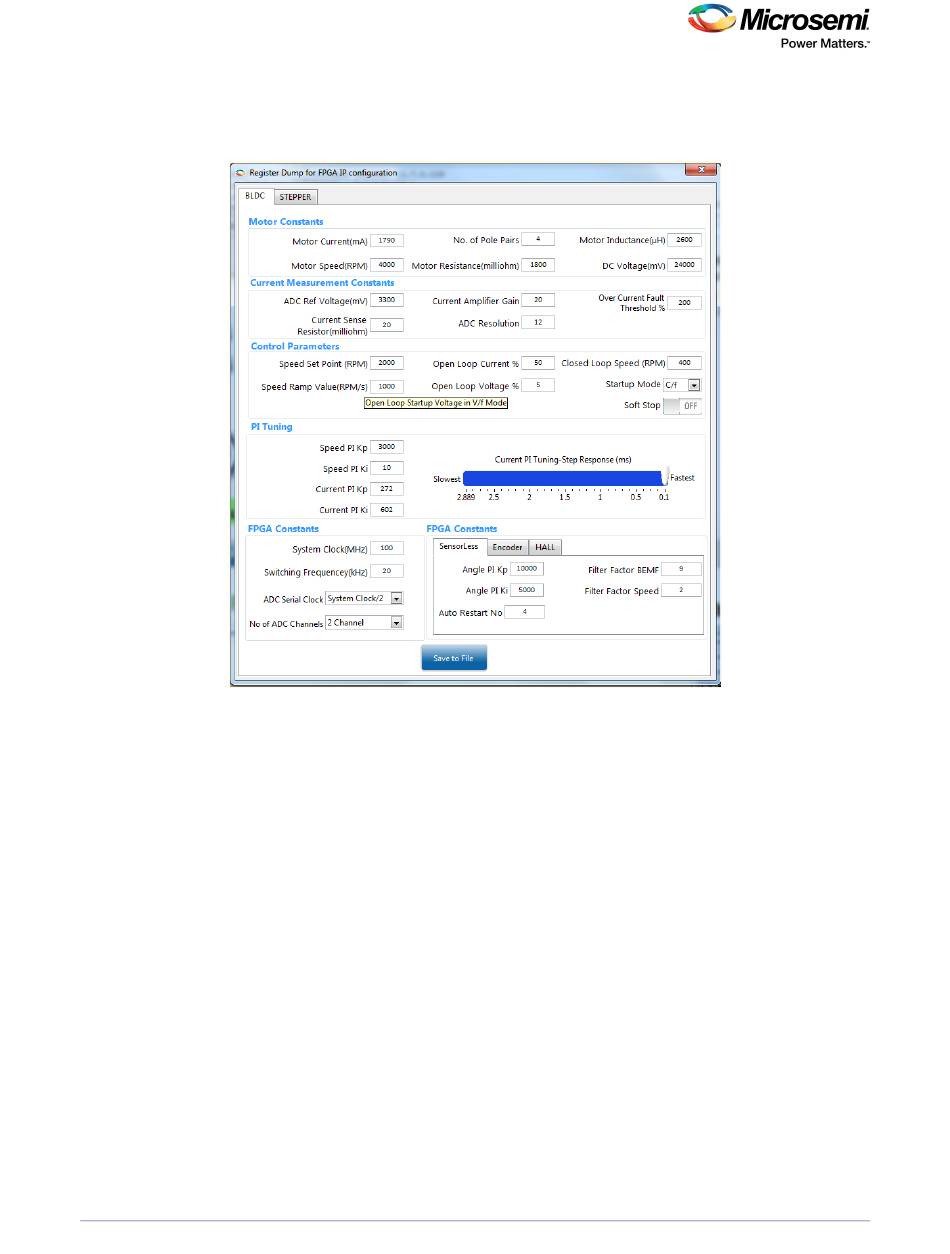

The following figure shows the BLDC tab of the register dump window. The Save to File button

opens a dialog box to specify the location and the name of the csv file. The generated csv file

contains only the data corresponding to the BLDC blocks.

Figure 28 • Register Dump window—BLDC Tab

DG0598 Demo Guide Revision 7.0
