SmartFusion2 Dual-Axis Motor Control Starter Kit

The following figure shows the Stepper tab of the register dump window. The Save to File button

opens a dialog box to specify the location and the name of the csv file. The generated csv file

contains only the data corresponding to the stepper blocks.

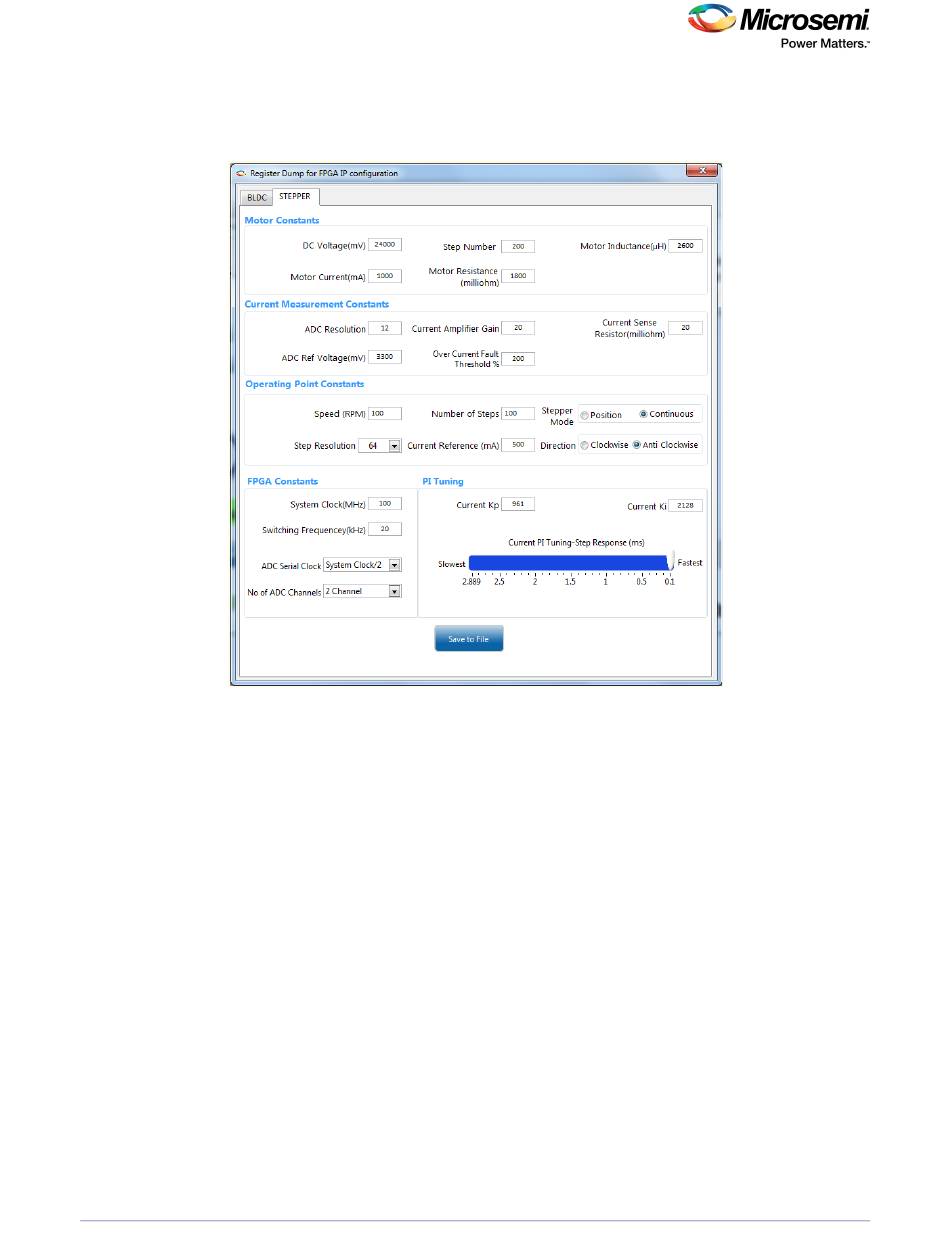

Figure 29 • Register Dump window—Stepper Tab

DG0598 Demo Guide Revision 7.0
