SmartFusion2 Dual-Axis Motor Control Starter Kit
3.
Click Configure to open the Configure Stepper Motor Parameters window, as shown in the
following figure.

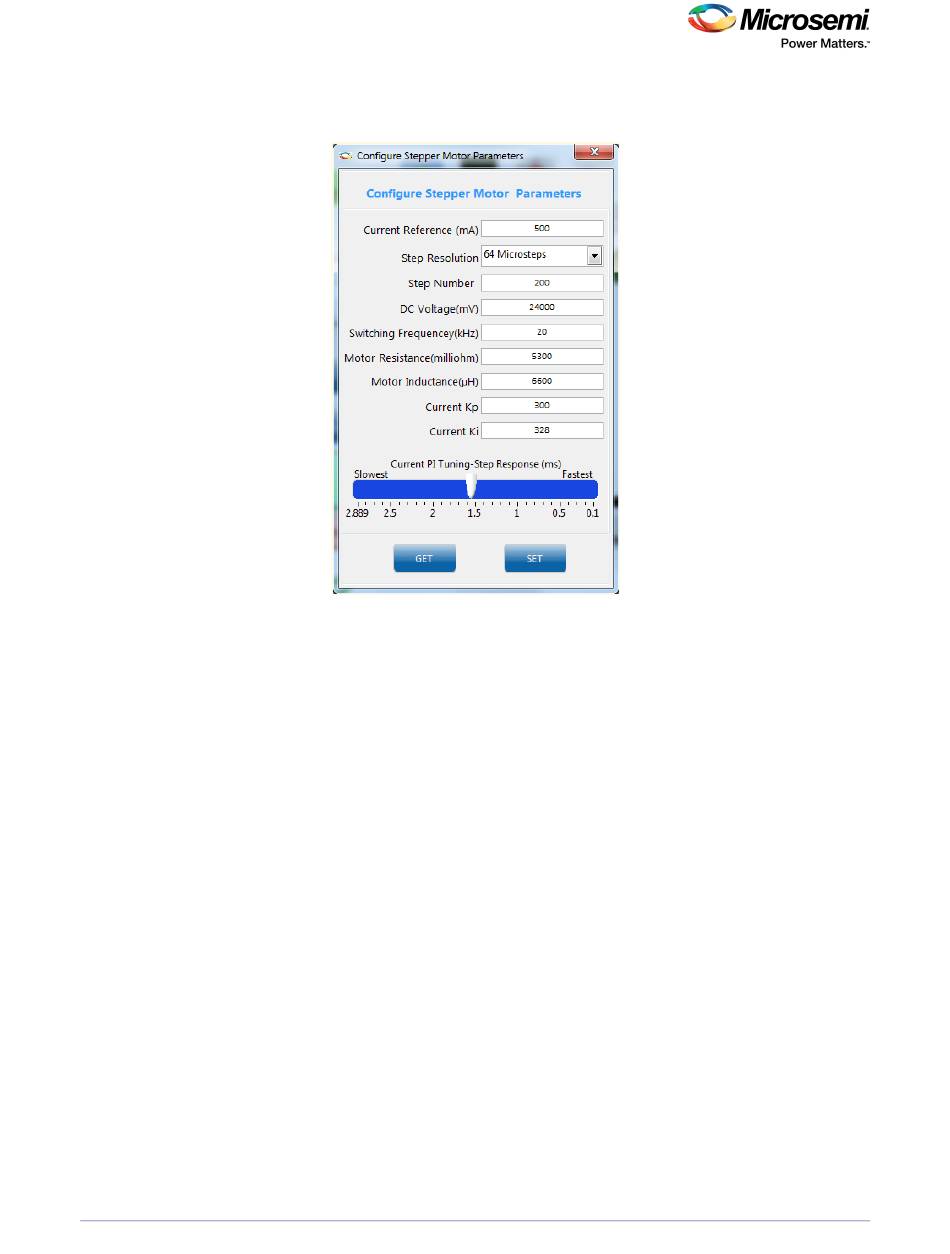

Figure 26 • Configure Stepper Motor Parameters Window
4.
Click STOP to stop the motor/de-energize the motor.
5.
Click EXIT to exit the SmartFusion2 Motor Control GUI.
DG0598 Demo Guide Revision 7.0
23
