SmartFusion2 Dual-Axis Motor Control Starter Kit
8. Check if NI-VISA USB devices appears in the device manager as shown in the following figure. If
they are configured, skip to

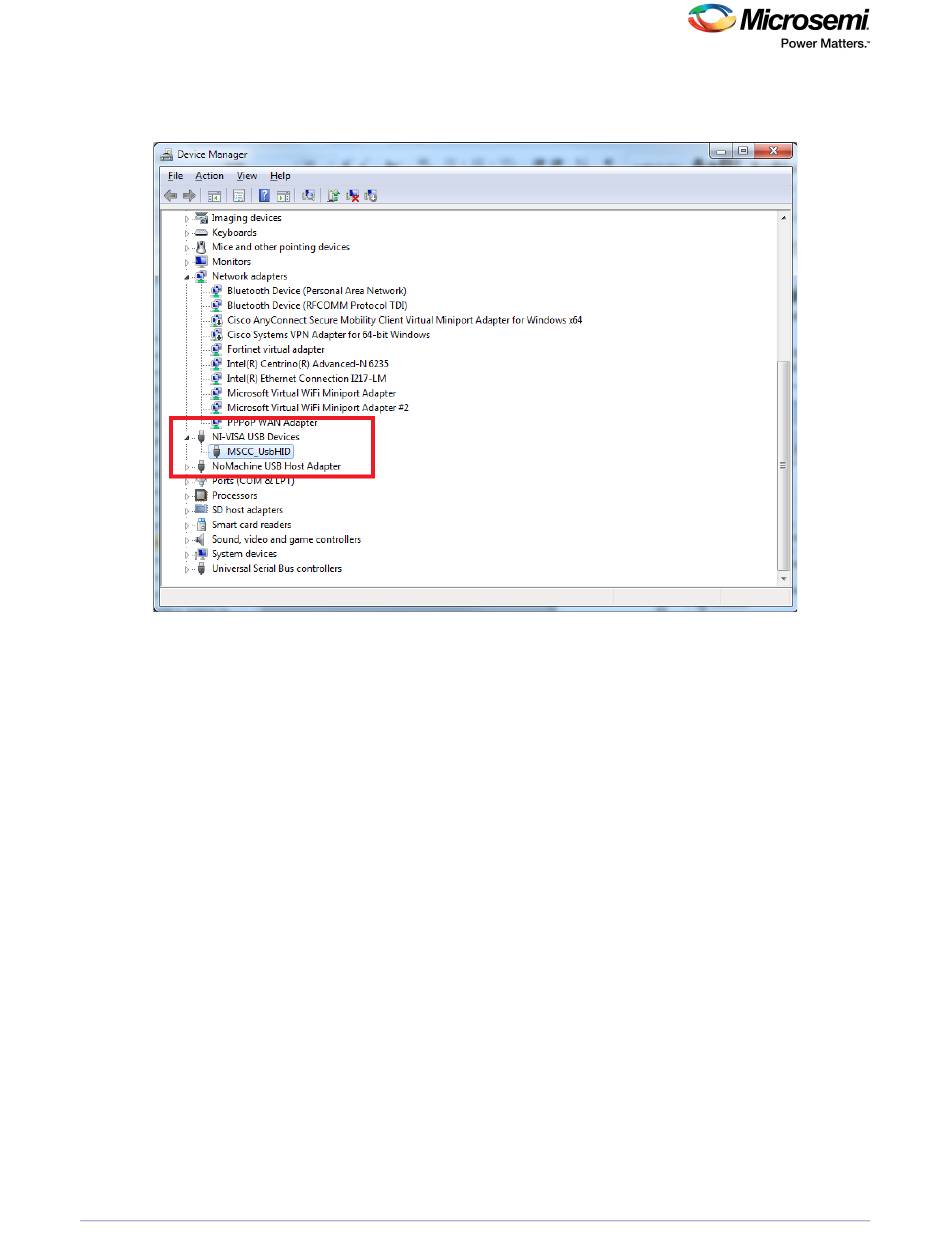

Figure 2 • Identifying the SmartFusion2 Motor Control Kit USB Driver
2.5.2.1 GUI Driver Configuration
The following steps describe how to install the GUI driver on the host PC that has Windows 7 or above
installed. The downloaded programming file must be programmed on the board before proceeding for
driver installation.
1. Connect the host PC to the J17 connector on the SmartFusion2 Motor Control Kit using the USB A
to mini-B USB cable.
2. Connect the power adapter to the kit and switch ON the SW3 switch.
Running the Demo Design,
DG0598 Demo Guide Revision 7.0
page 12.
