SmartFusion2 SoC FPGA Security Evaluation Kit

Quickstart Card

Kit Contents—M2S090TS-EVAL-KIT

Quantity

Description

SmartFusion

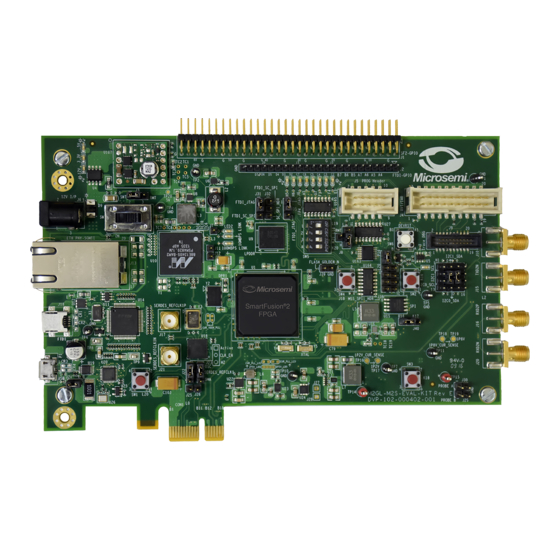

M2S090TS-1FGG484 Evaluation Board

USB 2.0 A-Male to mini-B cable

12 V, 2 A AC power adapter

Quickstart card

Software ID letter for Libero Gold License

FlashPro4 programmer

2 system-on-chip (SoC) FPGA 90K LE

Table of Contents

Need help?

Do you have a question about the SmartFusion2 and is the answer not in the manual?

Page 1 SmartFusion2 SoC FPGA Security Evaluation Kit Quickstart Card Kit Contents—M2S090TS-EVAL-KIT Quantity Description SmartFusion 2 system-on-chip (SoC) FPGA 90K LE ® M2S090TS-1FGG484 Evaluation Board USB 2.0 A-Male to mini-B cable 12 V, 2 A AC power adapter Quickstart card Software ID letter for Libero Gold License...
Page 2: Hardware Features
Quickstart Card Overview Microsemi’s SmartFusion2 Security Evaluation Kit makes it easy to develop secure embedded systems and provides the best-in-class solutions for both Design Security—when protecting your design IP is critical; and Data Security—when protecting application data is necessary. The kit provides a cost effective SoC field programmable gate array (FPGA) platform for developing SoC FPGA designs using Microsemi’s SmartFusion2 SoC FPGAs, which integrates inherently reliable flash-based FPGA fabric, a...
Page 3 SmartFusion2 SoC FPGA Security Evaluation Kit Quickstart Card Evaluation Board Block Diagram...
Page 4 Microsemi. It is the Buyer’s responsibility to independently determine suitability of any products and to test and verify the same. The information reserved. Microsemi and the Microsemi logo are provided by Microsemi hereunder is provided “as is, where is” and with all faults, and the entire risk associated with such information is entirely with the Buyer. registered trademarks of Microsemi Corporation.
