SmartFusion2 Dual-Axis Motor Control Starter Kit
In the event of a fault occurrence, it is indicated in the indicator above the Clear Fault button. To clear a
Fault, click Clear Fault highlighted in the following figure.

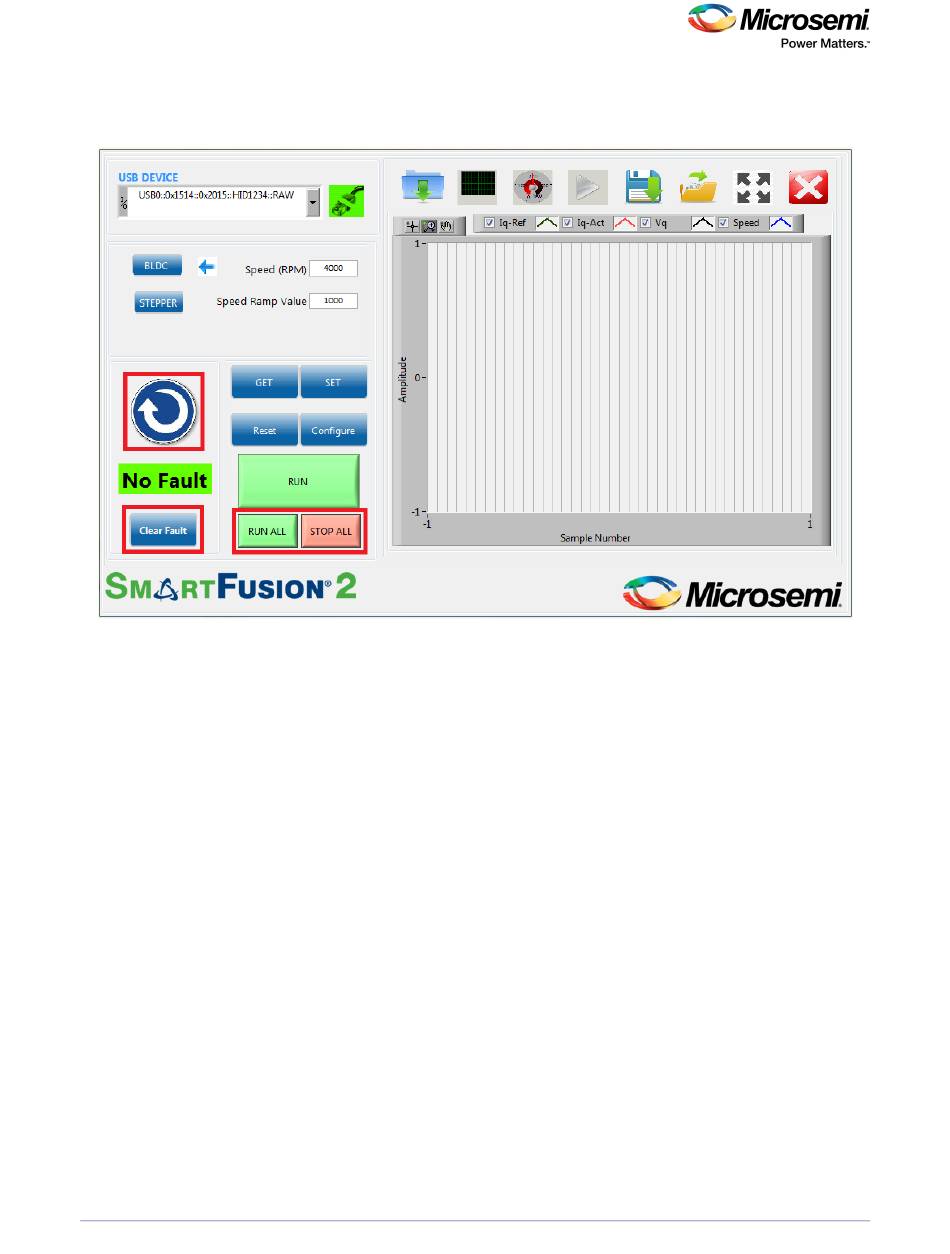

Figure 18 • SmartFusion2 Motor Control GUI - Run or Stop All Motors
Click Motor Direction to set the motor direction. This button also indicates the current motor direction.
DG0598 Demo Guide Revision 7.0
16
