SmartFusion2 Dual-Axis Motor Control Starter Kit
9.
To view the motor speed on a tachometer dial, click RPM and Current as highlighted in the following
figure.

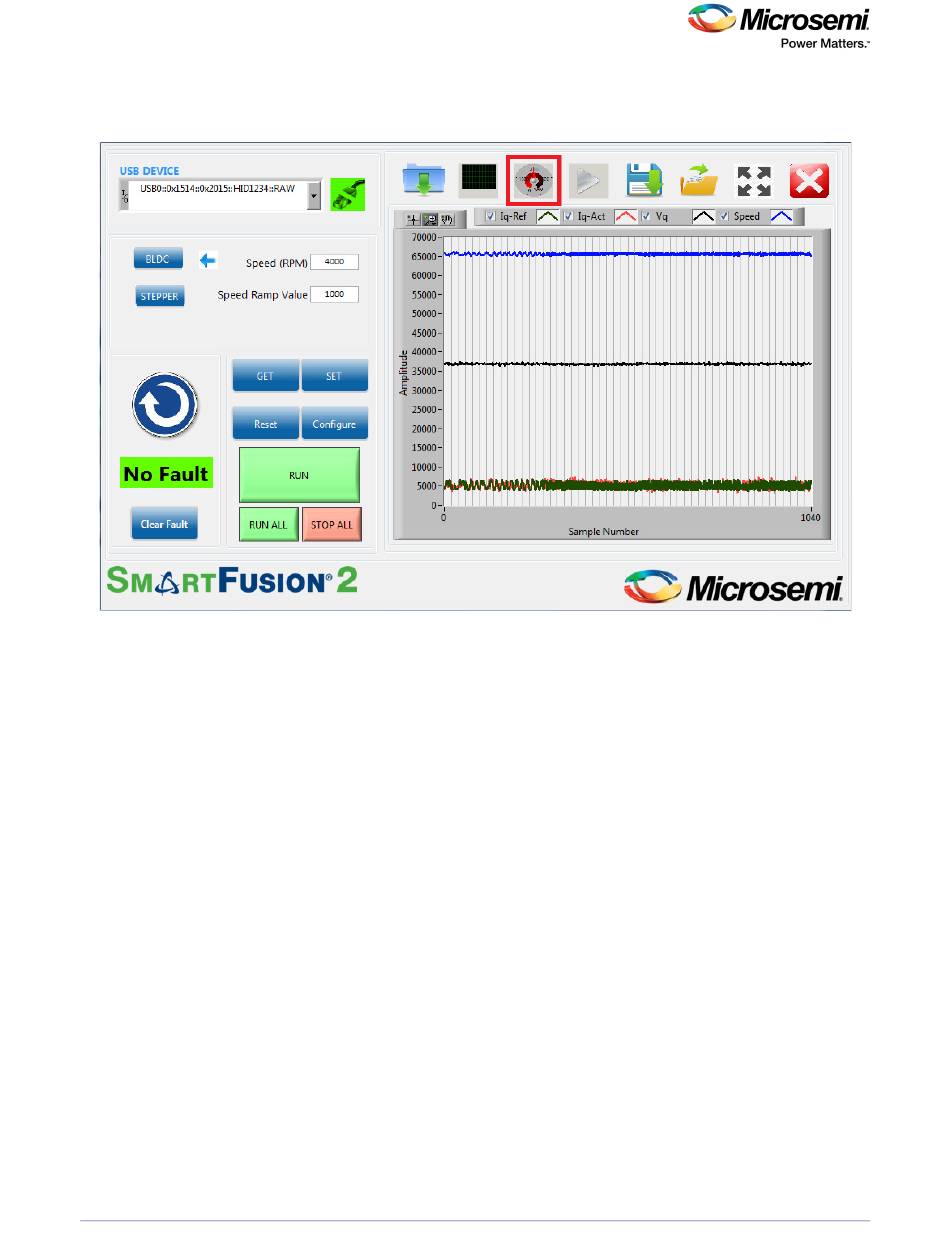

Figure 22 • SmartFusion2 Motor Control GUI - Displaying Speed and Current
DG0598 Demo Guide Revision 7.0
19
