SmartFusion2 Dual-Axis Motor Control Starter Kit
5.
The GUI automatically plots waveforms when motor starts running. The plotting can be paused by
clicking the pause button highlighted in the following figure.

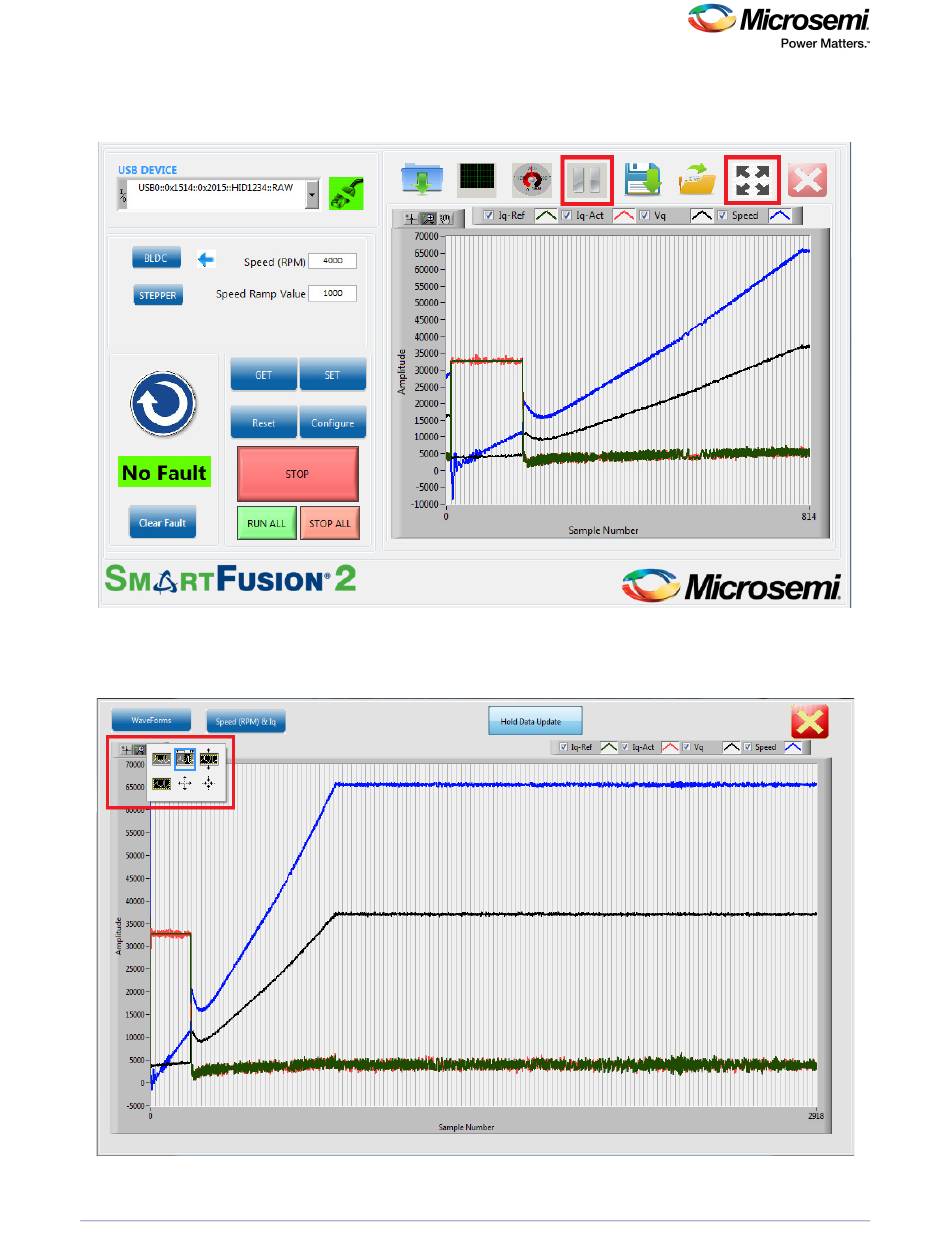

Figure 19 • SmartFusion2 Motor Control GUI - Start Plotting
6.
Click Expand Plot Window to display the debug waveforms in a separate window as shown in the
following figure. Use the graph palette highlighted in the following figure to expand and analyze the
waveforms.
Figure 20 • Plot Waveforms Window
DG0598 Demo Guide Revision 7.0
17
