Appendix: Connecting the Motor Terminals

4 Appendix: Connecting the Motor Terminals
4.1

BLDC Motor Connections

The following steps describe how to connect to the BLDC motor:
1. Identify and isolate the BLDC Motor Terminals (set of 3) and Hall Sensor Terminals (set of 5), as
shown in the following figure. These terminals are tied together.
2. Connect the BLDC Motor Terminals to the three pin plug.
3. Connect the Hall Sensor Terminals to the five pin plug.

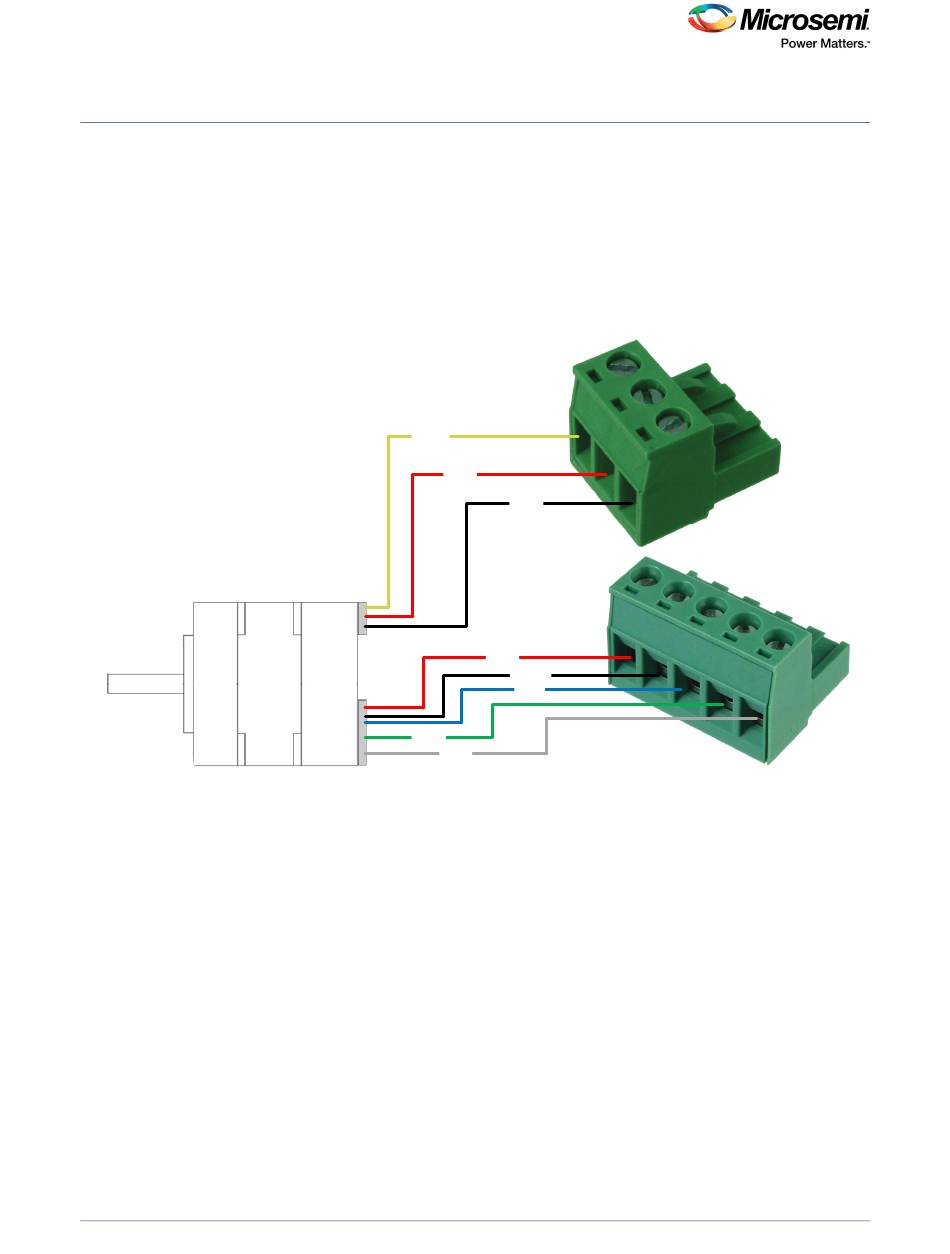

Figure 32 • Wiring Diagram for BLDC Motor Connectors
BLDC Motor
(QBL 4208-41-04-006)
BLDC Motor Terminals
(AWG20)
Yellow
W phase
Red
V phase
Black
U phase
Red +5V
Black GND
Blue H1
Green H2
White H3
Hall Sensor Terminals
(AWG26)
