Appendix: Jumper Settings

3 Appendix: Jumper Settings
The following table lists the jumpers that are required to be set on the SmartFusion2 Starter Kit board.
Table 2 • Jumper Settings on the SmartFusion2 Starter Kit Board
Jumper Function
Power Supply
J23 SOM power source
J22 JTAG Mode
J7, J13 Encoder – Single Ended selection
J8 Encoder – Differential selection
J19 Shunt resistor for power measurement Open
J11 Encoder

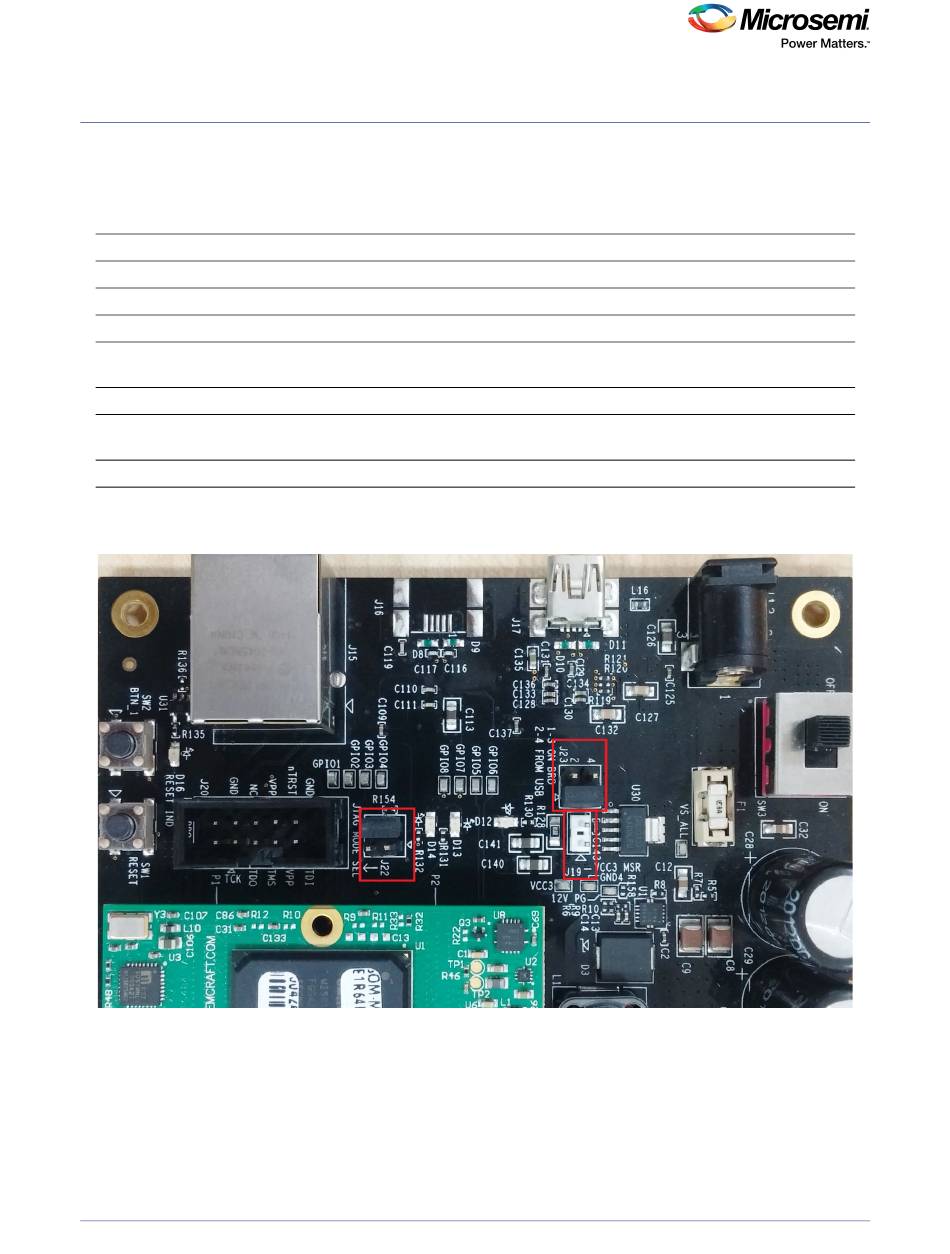

The following figure shows the Jumpers on SmartFusion2 Starter Kit.
Figure 31 • Jumpers on SmartFusion2 Starter Kit
Default Settings Notes
1-3 Closed
3-4 Closed
Open
Open
Open
DG0598 Demo Guide Revision 7.0
On-board power to SOM
JTAG VPP to 3.3 V
To be set for single ended
encoder
To be set for differential encoder
Voltage can be measured across
shunt
Port to connect encoder
