SmartFusion2 Dual-Axis Motor Control Starter Kit
On clicking, Configure Motor Specification highlighted in the following figure, Motor Specifications
Configuration window opens, which allows to change the listed parameters.

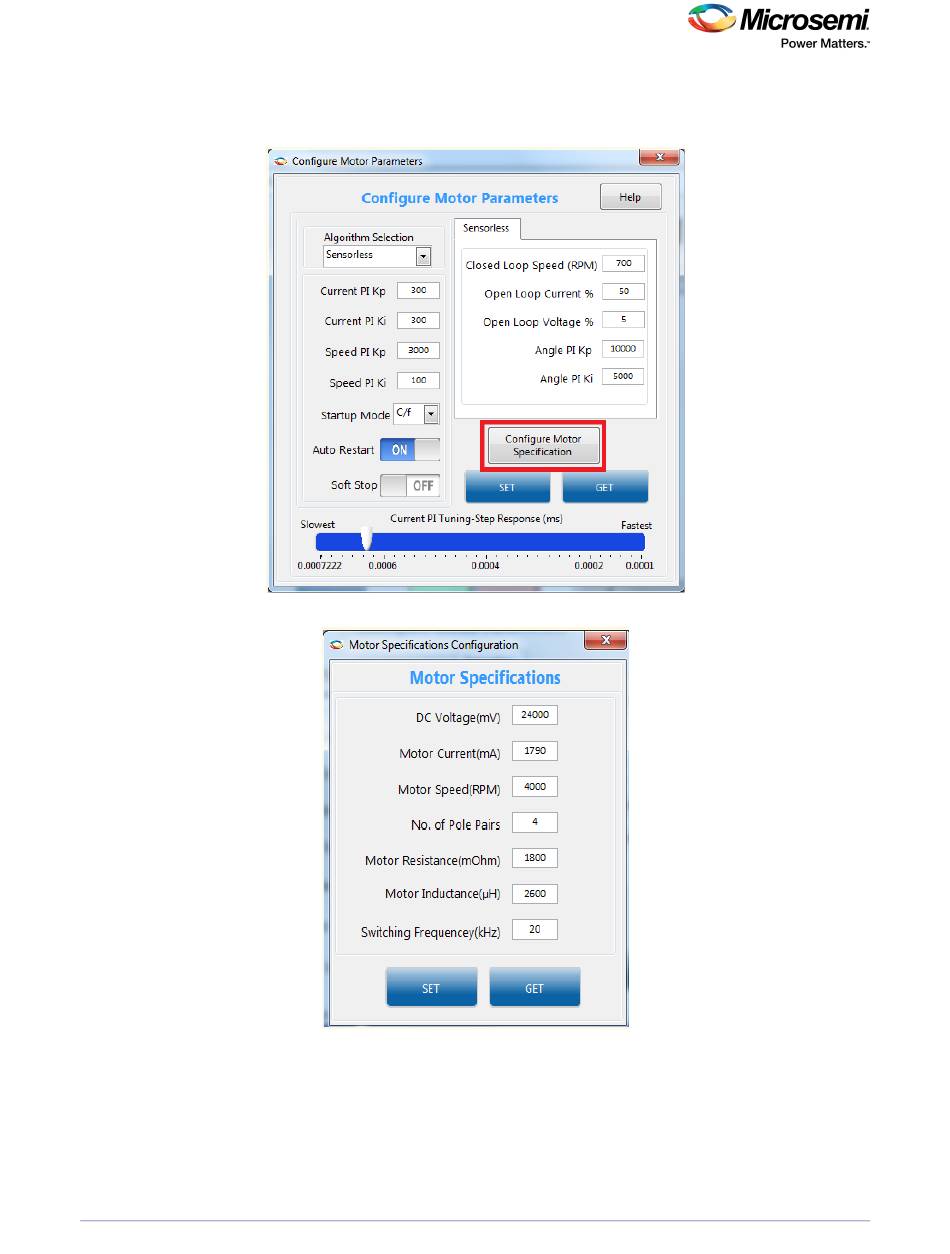

Figure 16 • Configuring Motor Parameters Window
Figure 17 • Motor Specifications Configuration Window
•
To modify a parameter, change the required field and click SET.
•
To check the data in the hardware corresponding to each parameter, click GET.
•
To run the motor, click RUN and to stop the motor, click STOP.
4.
Click Run All to run all the motors and click Stop All to stop all the running motors. These buttons
are highlighted in the following figure.
