SmartFusion2 Dual-Axis Motor Control Starter Kit
10. Click Save Waveform to save the current waveform in the GUI as a.tdms file. The saved waveform
can be reloaded by using the Load Waveform option and loading the.tdms file.

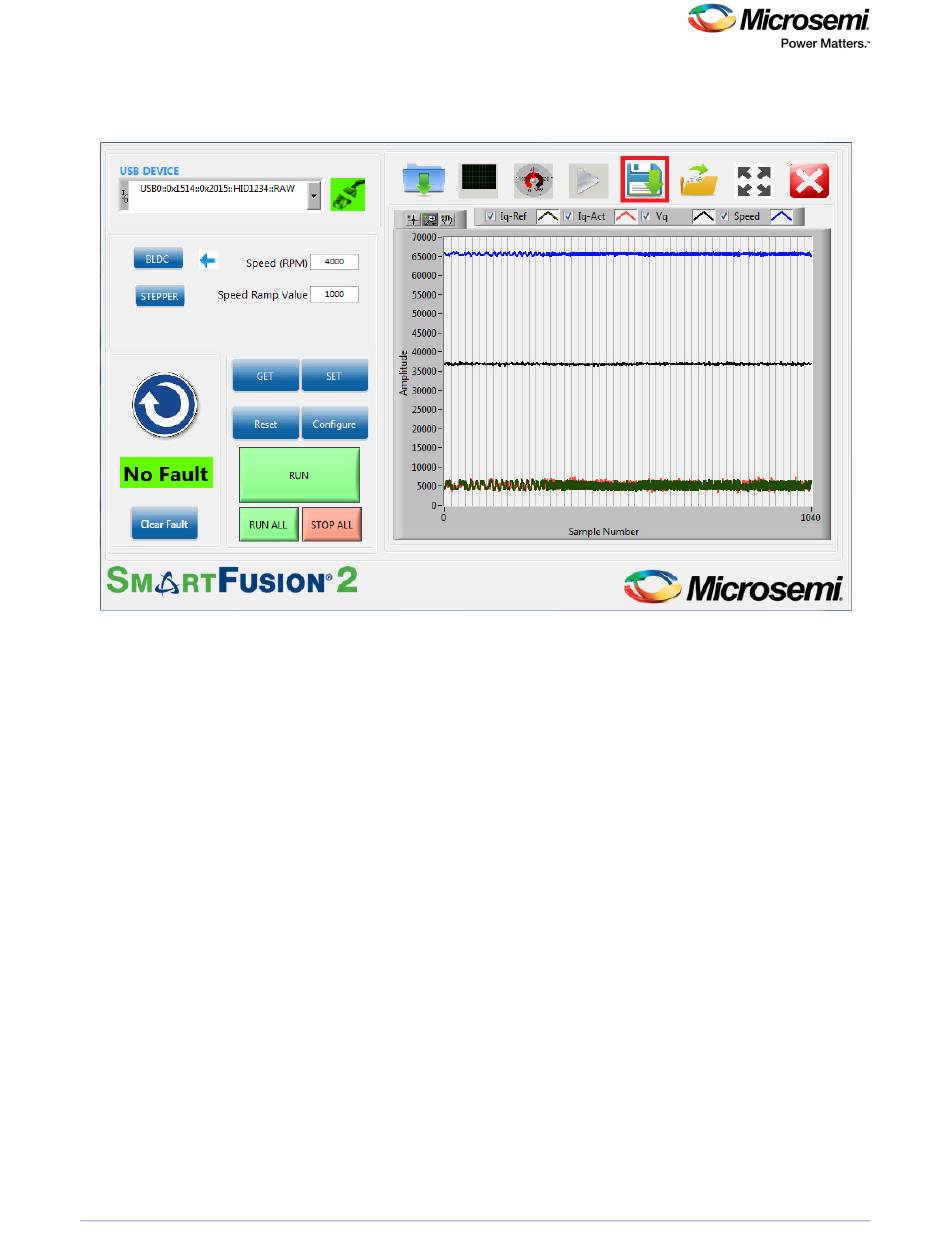

Figure 23 • SmartFusion2 Motor Control GUI - Saving and Loading Waveforms
2.8
Running Stepper Motors
This design runs stepper motors in Continuous Mode and Position Mode:
Note: The Continuous Mode is selected by default.
DG0598 Demo Guide Revision 7.0
