The Output block for low wattage load should not be used when the current consumption of the connected
output equipment (load) is above the rated current of 42 mA
(1.0 W, 24 VDC).
If used, the SI unit will malfunction.
The Output block for high wattage load and a Power block must be used when the current consumption
exceeds the rated load current of 42 mA.

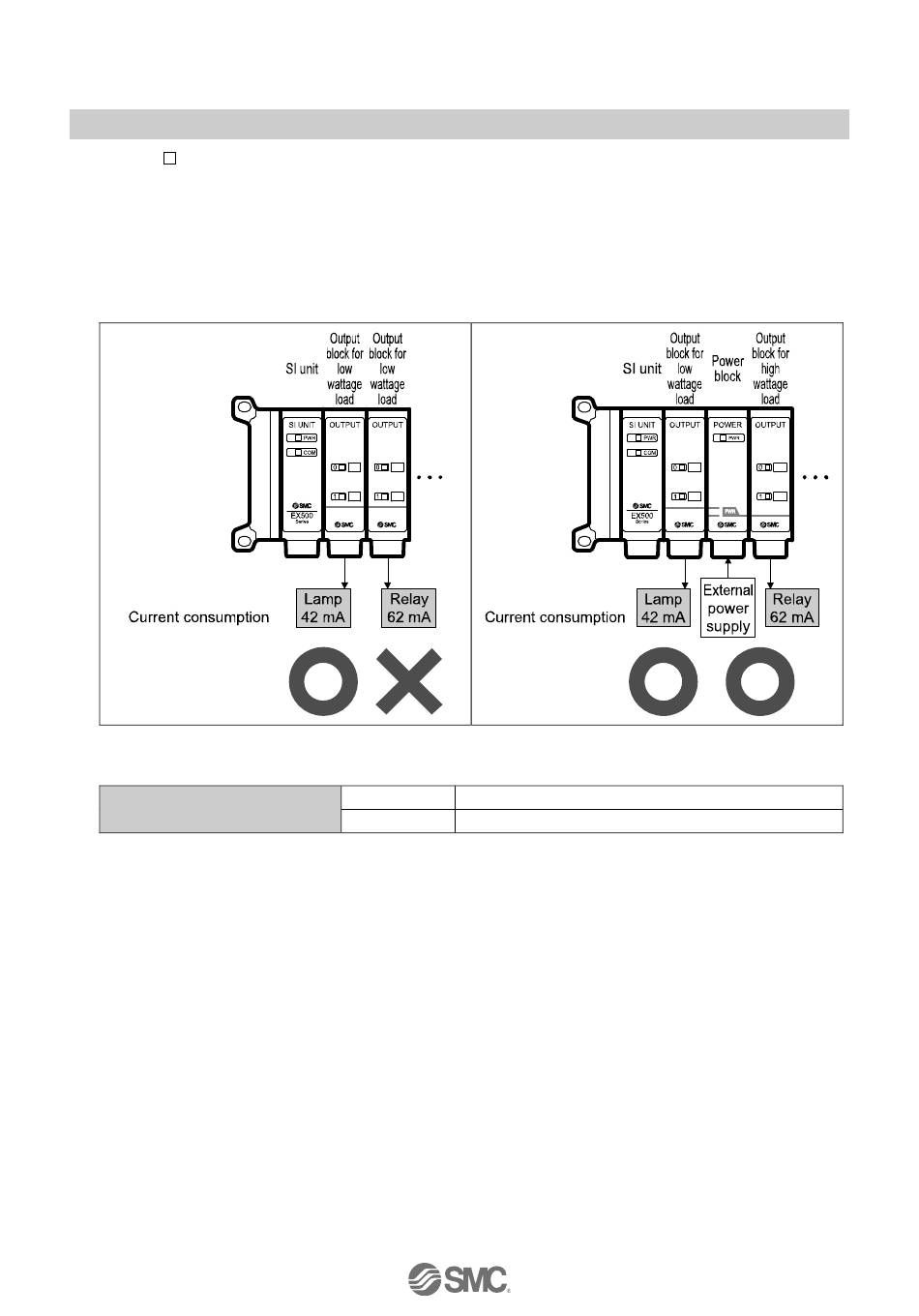

[Example]
Current consumption of the load
(output equipment)
42 mA or less
Use Output block for low wattage load
Over 42 mA
Use Output block for high wattage load + Power block
-12-
○: This is possible to use it.
×: This is not possible to use it.
