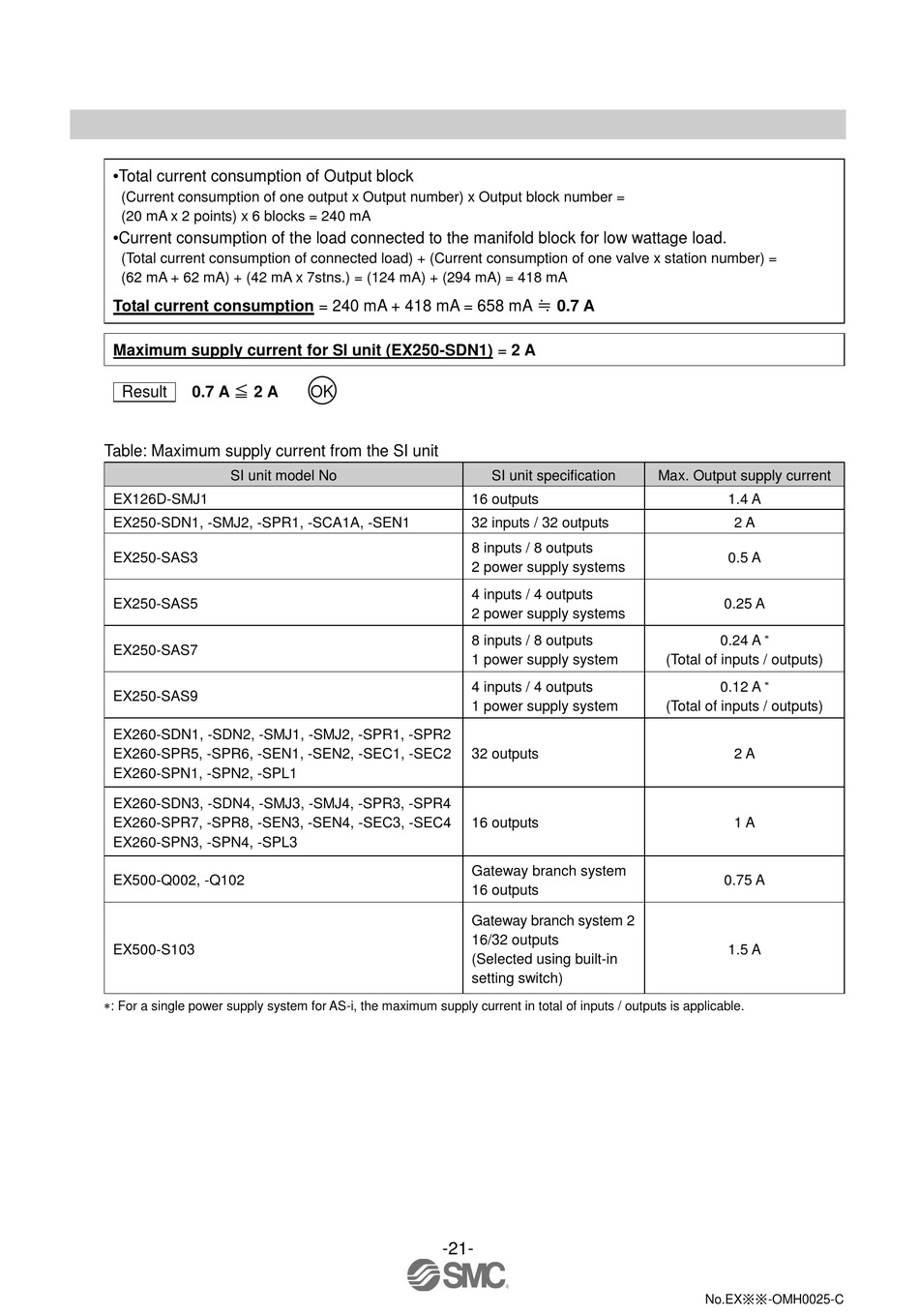

•Total current consumption of Output block
(Current consumption of one output x Output number) x Output block number =
(20 mA x 2 points) x 6 blocks = 240 mA
•Current consumption of the load connected to the manifold block for low wattage load.
(Total current consumption of connected load) + (Current consumption of one valve x station number) =
(62 mA + 62 mA) + (42 mA x 7stns.) = (124 mA) + (294 mA) = 418 mA
Total current consumption = 240 mA + 418 mA = 658 mA ≒ 0.7 A
Maximum supply current for SI unit (EX250-SDN1) = 2 A
0.7 A ≦ 2 A
Result
Table: Maximum supply current from the SI unit
SI unit model No
EX126D-SMJ1
EX250-SDN1, -SMJ2, -SPR1, -SCA1A, -SEN1
EX250-SAS3
EX250-SAS5
EX250-SAS7
EX250-SAS9
EX260-SDN1, -SDN2, -SMJ1, -SMJ2, -SPR1, -SPR2
EX260-SPR5, -SPR6, -SEN1, -SEN2, -SEC1, -SEC2
EX260-SPN1, -SPN2, -SPL1
EX260-SDN3, -SDN4, -SMJ3, -SMJ4, -SPR3, -SPR4
EX260-SPR7, -SPR8, -SEN3, -SEN4, -SEC3, -SEC4
EX260-SPN3, -SPN4, -SPL3
EX500-Q002, -Q102
EX500-S103
: For a single power supply system for AS-i, the maximum supply current in total of inputs / outputs is applicable.
OK
16 outputs
32 inputs / 32 outputs
8 inputs / 8 outputs
2 power supply systems
4 inputs / 4 outputs
2 power supply systems
8 inputs / 8 outputs
1 power supply system
4 inputs / 4 outputs
1 power supply system
32 outputs
16 outputs
Gateway branch system
16 outputs
Gateway branch system 2
16/32 outputs
(Selected using built-in
setting switch)
-21-
SI unit specification Max. Output supply current
1.4 A
2 A
0.5 A
0.25 A

0.24 A
(Total of inputs / outputs)

0.12 A
(Total of inputs / outputs)
2 A
1 A
0.75 A
1.5 A
