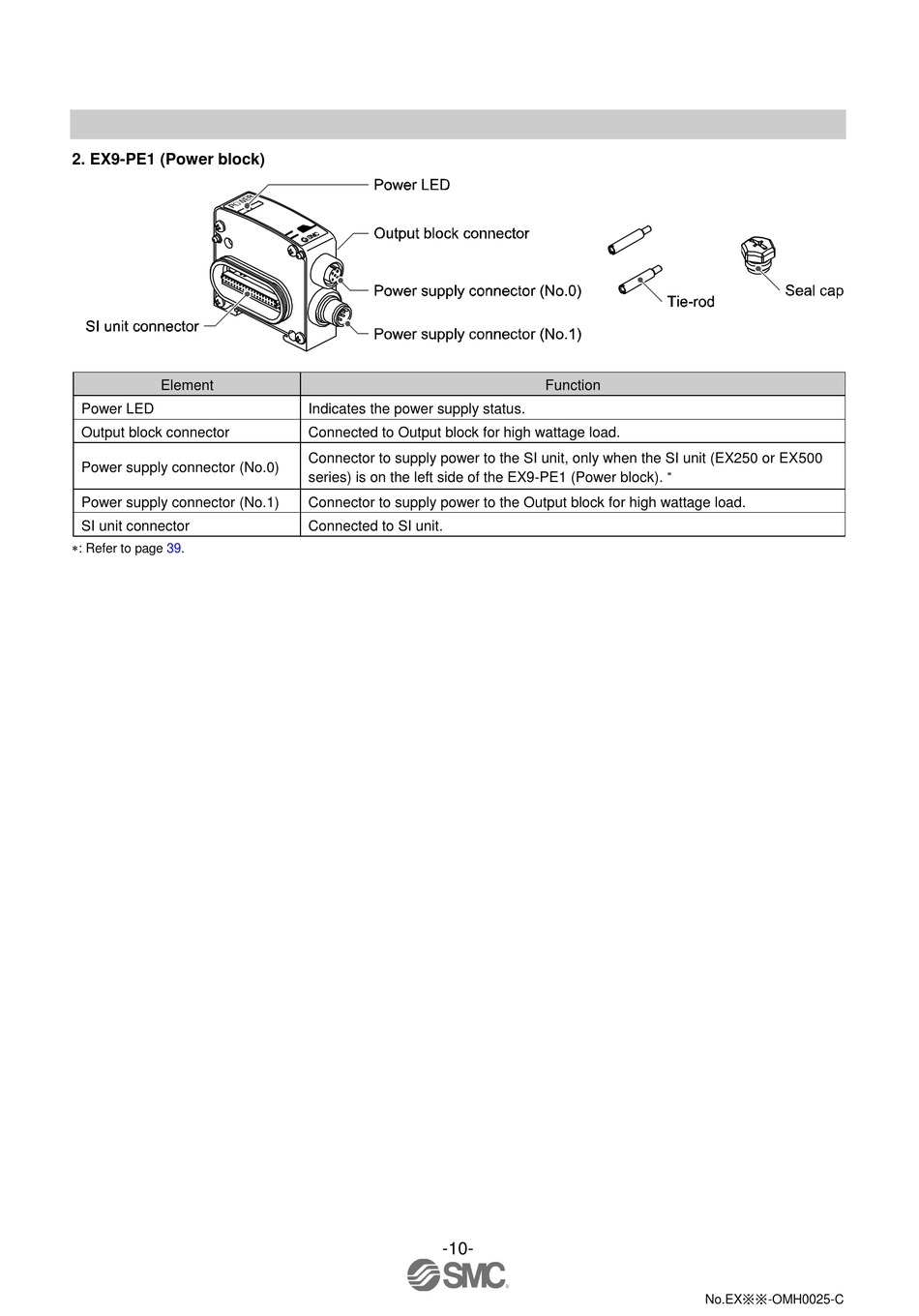

2. EX9-PE1 (Power block)
Element
Power LED
Output block connector
Power supply connector (No.0)
Power supply connector (No.1)
SI unit connector
: Refer to page 39.
Indicates the power supply status.
Connected to Output block for high wattage load.
Connector to supply power to the SI unit, only when the SI unit (EX250 or EX500
series) is on the left side of the EX9-PE1 (Power block).
Connector to supply power to the Output block for high wattage load.
Connected to SI unit.
-10-
Function
No.EX※※-OMH0025-C
