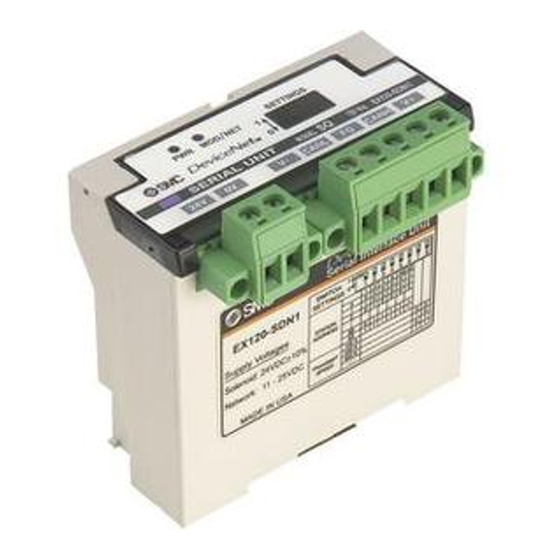

For Output
EX120/121/122
Small unit compatible with maximum 16 outputs
Compatible with a variety of communication networks
EX120
Series
SV1000/2000/3000/4000
VQ1000/2000
SY3000/5000/7000
0
1
Flat ribbon cable DIN rail mounting
2
Series
EX121
Series
SY3000/5000
How to Order SI Unit
EX12
0
Valve interface
Plug-in
Plug-in DIN rail mounting
EX122
SY3000/5000
S
DN1
Communication protocol
DN1
DeviceNet
DN1-X26
DeviceNet
MJ1
CC-Link
CS1
OMRON Corp.: CompoBus/S (16 outputs)
CS2
OMRON Corp.: CompoBus/S (8 outputs)
SL1
Panasonic Industrial Devices SUNX Co., Ltd.: S-LINK (16 outputs)
SL2
Panasonic Industrial Devices SUNX Co., Ltd.: S-LINK (8 outputs)
UW1
NKE Corp.: Fieldbus System
UH1
NKE Corp.: Fieldbus H System
CM1
CompoNet™ NPN (Positive common)
CM3
CompoNet™ PNP (Negative common)
Note 1) DN1's occupied points are 16 inputs and 16 outputs, while
DN1-X26 has 0 inputs and 16 outputs.
Note 2) Please consult SMC for networks other than those above.
Series
CE-compliant
Note 1)
Note 1)
EX12
EX12
EX140
EX180
EX260
EX250
EX600
EX500
EX510
PCA
EX
—
—
—
—
777
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks EX120-SCM1
Summary of Contents for SMC Networks EX120-SCM1
- Page 1 For Output EX120/121/122 Series Small unit compatible with maximum 16 outputs Compatible with a variety of communication networks EX120 EX121 EX122 Series Series Series SV1000/2000/3000/4000 SY3000/5000 SY3000/5000 EX12 EX12 EX140 EX180 VQ1000/2000 EX260 EX250 EX600 EX500 EX510 SY3000/5000/7000 EX How to Order SI Unit EX12 Valve interface Communication protocol...
- Page 2 I/O occupation area (Inputs/Outputs) 0/16 Terminating resistor Not provided Note) For details about the communication speed or each setting instruction, check the operation manual that can be downloaded from SMC website. SI Unit Specifications Model EX120-SCM1 EX121-SCM1 EX122-SCM1 EX120-SCM3 EX121-SCM3 EX122-SCM3 For unit 14 to 26.4 VDC...
- Page 3 EX120/121/122 Series For Output SI Unit Dimensions/Parts Description EX120 EX120-SMJ1, SCS, EX120-SDN1(-X26) EX120-SCM SSL, SUW1, SUH1 Position indicator LED Position indicator LED Position indicator LED Terminal block cover Terminal block cover Terminal block cover Power supply connector Valve power supply Screw terminal block Communication connector Communication connector...
- Page 4 EX120/121/122 Series How to Order Options (For EX12-SCM) Communication connector: Press-in connector for flat cable. Use this connector for the standard dedicated flat cable. The communication connector does not come with this product. EX9-CCM1 Cable identification label Black (Flat cable: Black, blue, white, red) Lock lever Communication connector: Terminal block connector for round cable (VCTF).
- Page 5 For Output EX123/124/126 Series Enclosure IP65 (EX123, EX124), IP67 (EX126) Maximum 16 outputs EX123 EX124 EX126 Series Series Series VQ2000/4000/5000 VQ2000/4000/5000 SY3000/5000/7000 EX12 EX12 EX140 SV1000/2000/3000 VQC1000/2000/4000/5000 EX180 EX260 EX250 EX600 EX500 How to Order SI Unit EX510 EX12 EX Unit specifications Communication protocol CE-compliant...
- Page 6 EX123/124/126 Series How to Order Options Fuse for replacement A fuse for replacement used for EX126D-SMJ1. EX9 FU20 Fuse Applicable model EX126D-SMJ1 Rated current 2.0 A Dripproof plug assembly Use for the unused wiring entry (G1/2). Incorrect handling of the wiring entry may allow foreign matter to enter the SI unit, which will lead to a malfunction and damage to the SI unit. AXT100 B04A SI Unit Specifications The electrical specification is the same for EX12.
- Page 7 EX123/124/126 Series For Output SI Unit Dimensions/Parts Description EX123-S, EX124-S Screw terminal block Position indicator LED 56.4 Housing cover Housing cover diagram EX12 EX12 EX123: 2 x G1/2 EX140 EX124: 4 x G1/2 Wiring entry EX180 EX260 EX250 EX600 Note) The housing cover of the EX124U/D-SMJ1 is the same as that of the EX126D-SMJ1.
- Page 8 For Output EX140 Series Thinner unit with low height Maximum 16 outputs SZ3000 SQ1000/2000 How to Order SI Unit EX140 S Communication protocol CE-compliant DeviceNet ™ CC-Link OMRON Corp.: CompoBus/S (16 outputs) OMRON Corp.: CompoBus/S (8 outputs) ...
- Page 9 EX140 Series For Output SI Unit Specifications EX140-SCS1 EX140-SSL1 EX140-SDN1 EX140-SMJ1 EX140-SUW1 EX140-SUH1 Model EX140-SCS2 EX140-SSL2 Panasonic Industrial OMRON Corp.: NKE Corp.: NKE Corp.: DeviceNet™ CC-Link Protocol Devices SUNX Co., Ltd.: CompoBus/S Fieldbus System Fieldbus H System Applicable S-Link system Version Note 1) Release 2.0...
- Page 10 For Output EX180 Series ® Thinner unit with low height Maximum 32 outputs RoHS SJ2000/3000 S0700 Note) S0700 is not yet UL-compatible. How to Order SI Unit EX180 S Communication protocol Communication connector type DeviceNet™ (32 points Sink/NPN (Positive common)) T-branch type DeviceNet™...
- Page 11 EX180 Series For Output SI Unit Specifications EX180-SDN3 EX180-SDN5 EX180-SMJ3 EX180-SMJ5 Model EX180-SDN4 EX180-SDN6 DeviceNet ™ Protocol CC-Link Applicable system Release 2.0 Ver. 1.10 Version Note 1) 156 k/625 kbps Communication speed 125 k/250 k/500 kbps 2.5 M/5 M/10 Mbps Configuration file Note 2) EDS file...
- Page 12 EX180 Series SI Unit Dimensions/Parts Description EX180-SMJ3, SMJ5 Communication connector Power supply connector (Control unit power supply for SI unit) Power supply connector (For solenoid valve) 93.3 Ground terminal Before mounting connector (accessory) EX180-SDN3, SDN4, SDN5, SDN6 Communication connector Power supply connector (For solenoid valve) 93.3 Ground terminal...
