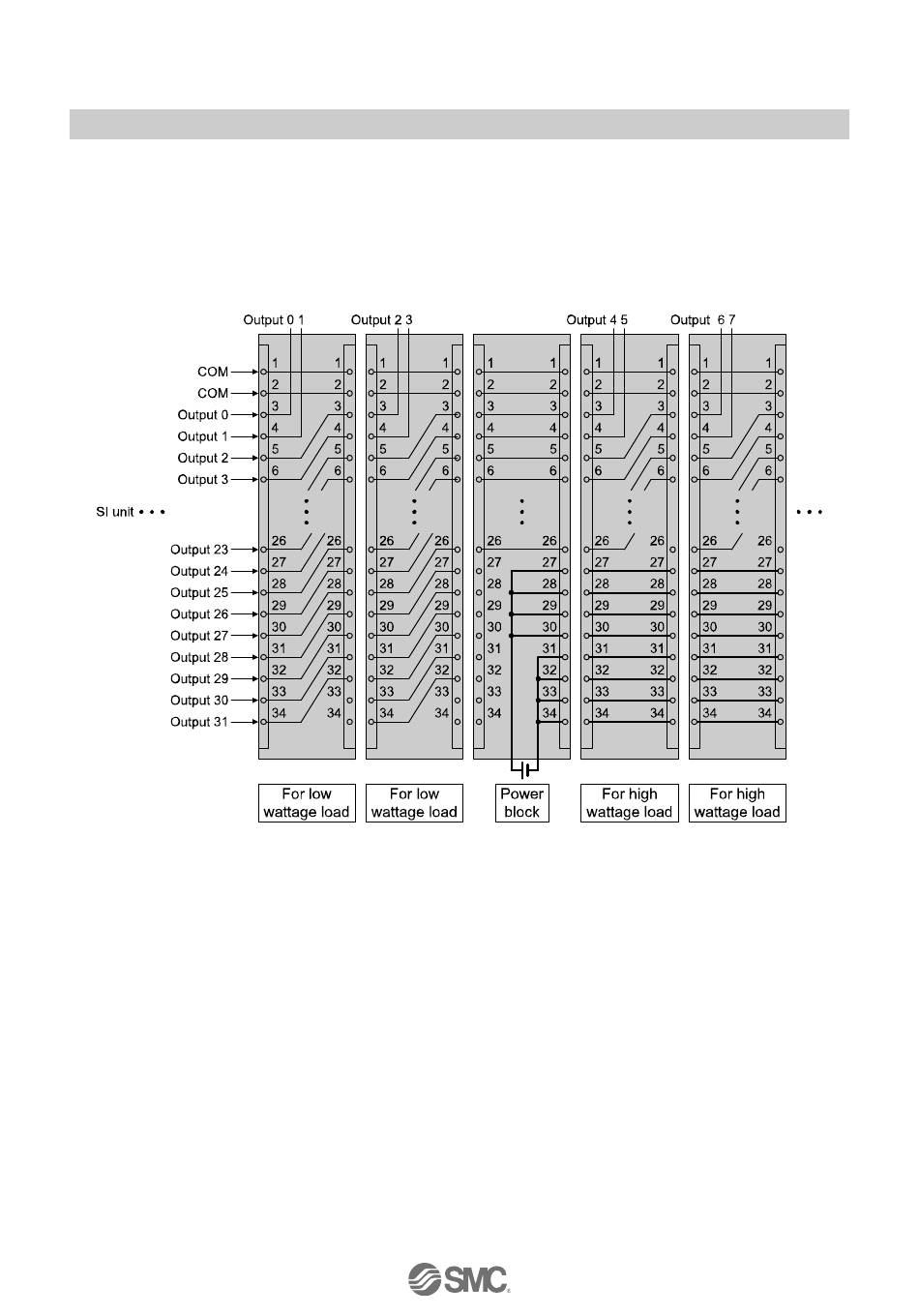

Limit of output points when the Output block for high wattage load and Power block are used
•EX250-SDN1, -SMJ2, -SPR1, -SCA1A, -SEN1
The maximum output points of the Output block for low wattage load is 32 (for connector pin No. 3 to 34)
When an Output block for high wattage load and Power block are used, the number of output points of the
Output block (on the right of the Power block) is limited to 24 points (connector pin No. 3 to 26). This is
because 8 points (connector pin No.27 to 34) are used to output the power supply from the Power block to
the Output block for high wattage load (32 points - 8 points =24 points).
-16-
No.EX※※-OMH0025-C
