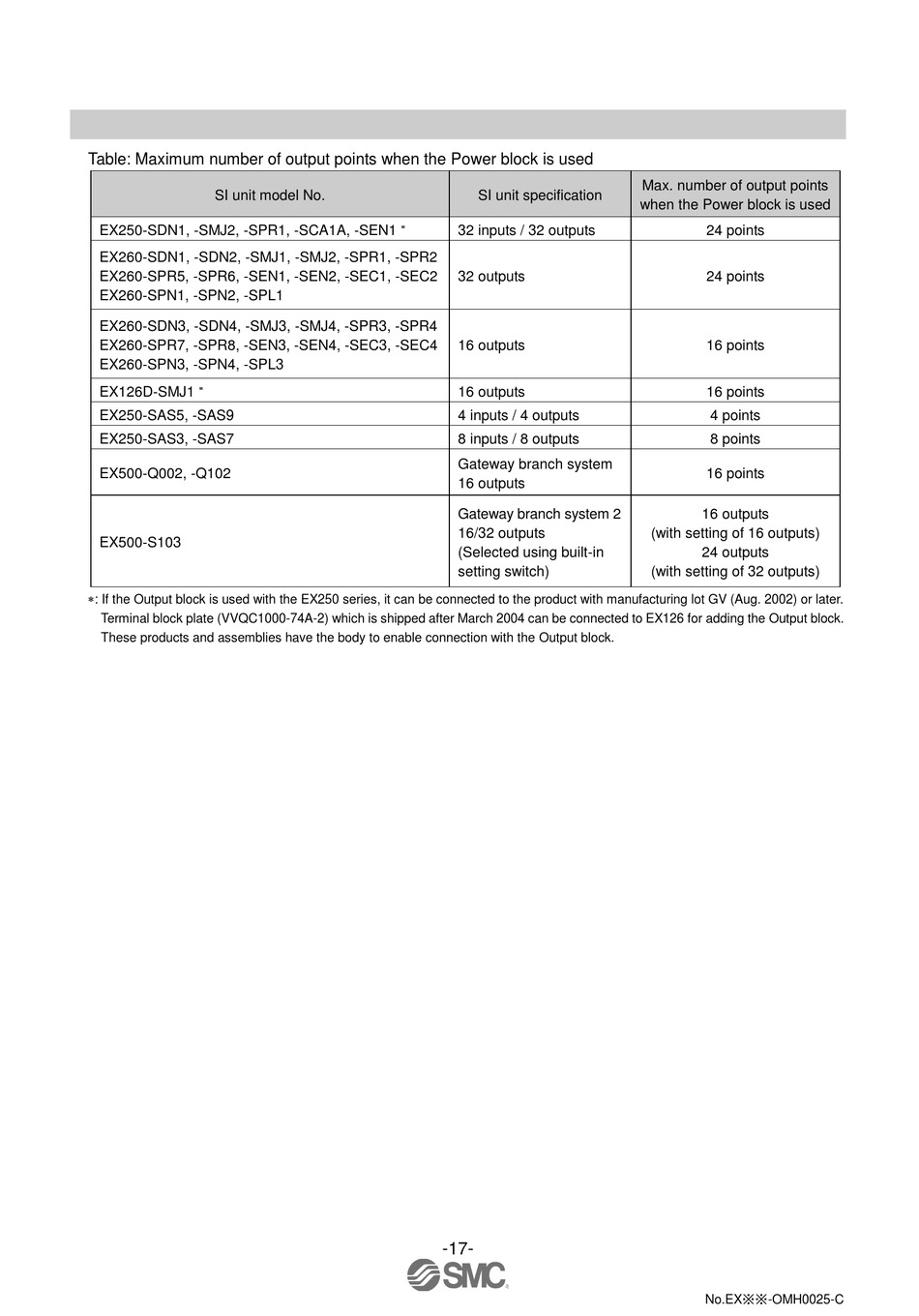

Table: Maximum number of output points when the Power block is used
SI unit model No.
EX250-SDN1, -SMJ2, -SPR1, -SCA1A, -SEN1
EX260-SDN1, -SDN2, -SMJ1, -SMJ2, -SPR1, -SPR2
EX260-SPR5, -SPR6, -SEN1, -SEN2, -SEC1, -SEC2
EX260-SPN1, -SPN2, -SPL1
EX260-SDN3, -SDN4, -SMJ3, -SMJ4, -SPR3, -SPR4
EX260-SPR7, -SPR8, -SEN3, -SEN4, -SEC3, -SEC4
EX260-SPN3, -SPN4, -SPL3

EX126D-SMJ1
EX250-SAS5, -SAS9
EX250-SAS3, -SAS7
EX500-Q002, -Q102
EX500-S103
: If the Output block is used with the EX250 series, it can be connected to the product with manufacturing lot GV (Aug. 2002) or later.
Terminal block plate (VVQC1000-74A-2) which is shipped after March 2004 can be connected to EX126 for adding the Output block.
These products and assemblies have the body to enable connection with the Output block.
SI unit specification

32 inputs / 32 outputs
32 outputs
16 outputs
16 outputs
4 inputs / 4 outputs
8 inputs / 8 outputs
Gateway branch system
16 outputs
Gateway branch system 2
16/32 outputs
(Selected using built-in
setting switch)
-17-
Max. number of output points
when the Power block is used
24 points
24 points
16 points
16 points
4 points
8 points
16 points
16 outputs
(with setting of 16 outputs)
24 outputs
(with setting of 32 outputs)
No.EX※※-OMH0025-C
