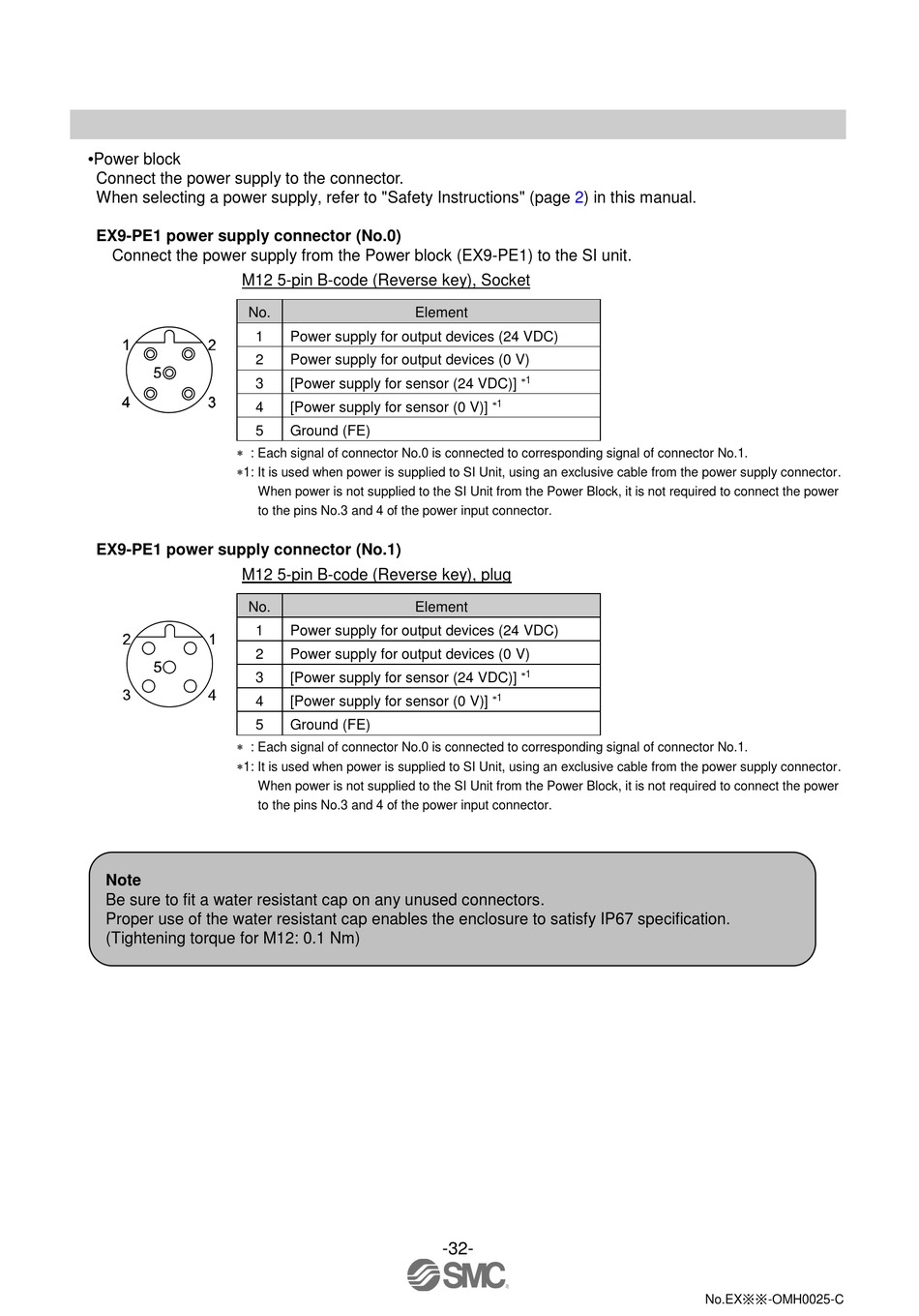

SMC Networks EX9-OET1 Operation Manual page 33

•Power block
Connect the power supply to the connector.
When selecting a power supply, refer to "Safety Instructions" (page 2) in this manual.
EX9-PE1 power supply connector (No.0)
Connect the power supply from the Power block (EX9-PE1) to the SI unit.
M12 5-pin B-code (Reverse key), Socket
No.
1
2
3
4
5
: Each signal of connector No.0 is connected to corresponding signal of connector No.1.
1: It is used when power is supplied to SI Unit, using an exclusive cable from the power supply connector.
When power is not supplied to the SI Unit from the Power Block, it is not required to connect the power
to the pins No.3 and 4 of the power input connector.
EX9-PE1 power supply connector (No.1)
M12 5-pin B-code (Reverse key), plug
No.
1
2
3
4
5
: Each signal of connector No.0 is connected to corresponding signal of connector No.1.
1: It is used when power is supplied to SI Unit, using an exclusive cable from the power supply connector.
When power is not supplied to the SI Unit from the Power Block, it is not required to connect the power
to the pins No.3 and 4 of the power input connector.
Note
Be sure to fit a water resistant cap on any unused connectors.
Proper use of the water resistant cap enables the enclosure to satisfy IP67 specification.
(Tightening torque for M12: 0.1 Nm)
Element
Power supply for output devices (24 VDC)
Power supply for output devices (0 V)
[Power supply for sensor (24 VDC)]
[Power supply for sensor (0 V)]
Ground (FE)
Element
Power supply for output devices (24 VDC)
Power supply for output devices (0 V)
[Power supply for sensor (24 VDC)]
[Power supply for sensor (0 V)]
Ground (FE)
