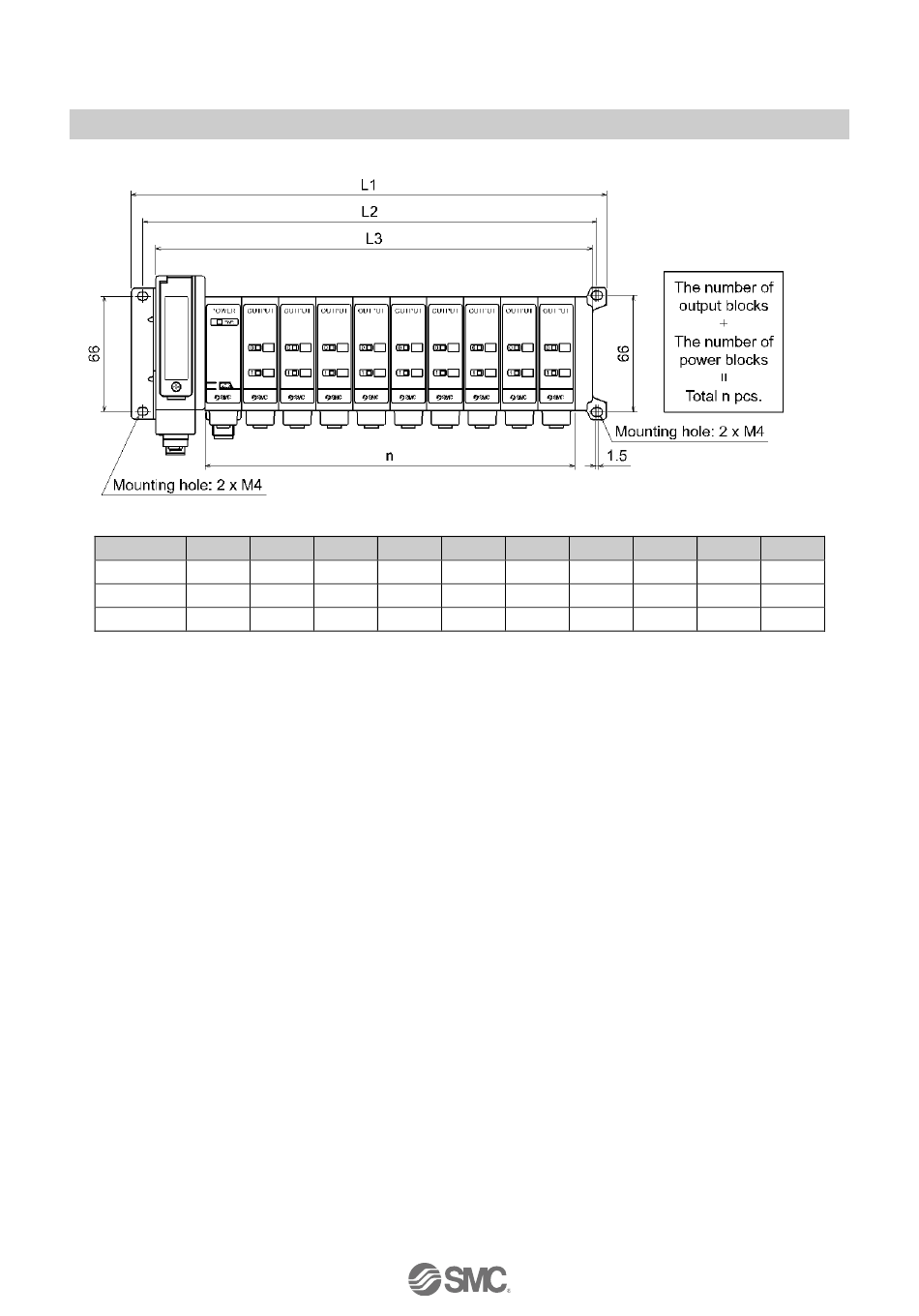

•Dimensions when EX260 or EX500-S103 is used
L dimensions
n 1
L1 [mm] 81.2
L2 [mm] 69.2
L3 [mm] 59.2
2 3 4
102.2 123.2 144.2
90.2 111.2 132.2
80.2 101.2 122.2
5 6 7
165.2 186.2 207.2
153.2 174.2 195.2
143.2 164.2 185.2
-48-
8 9 10
228.2 249.2 270.2
216.2 237.2 258.2
206.2 227.2 248.2
