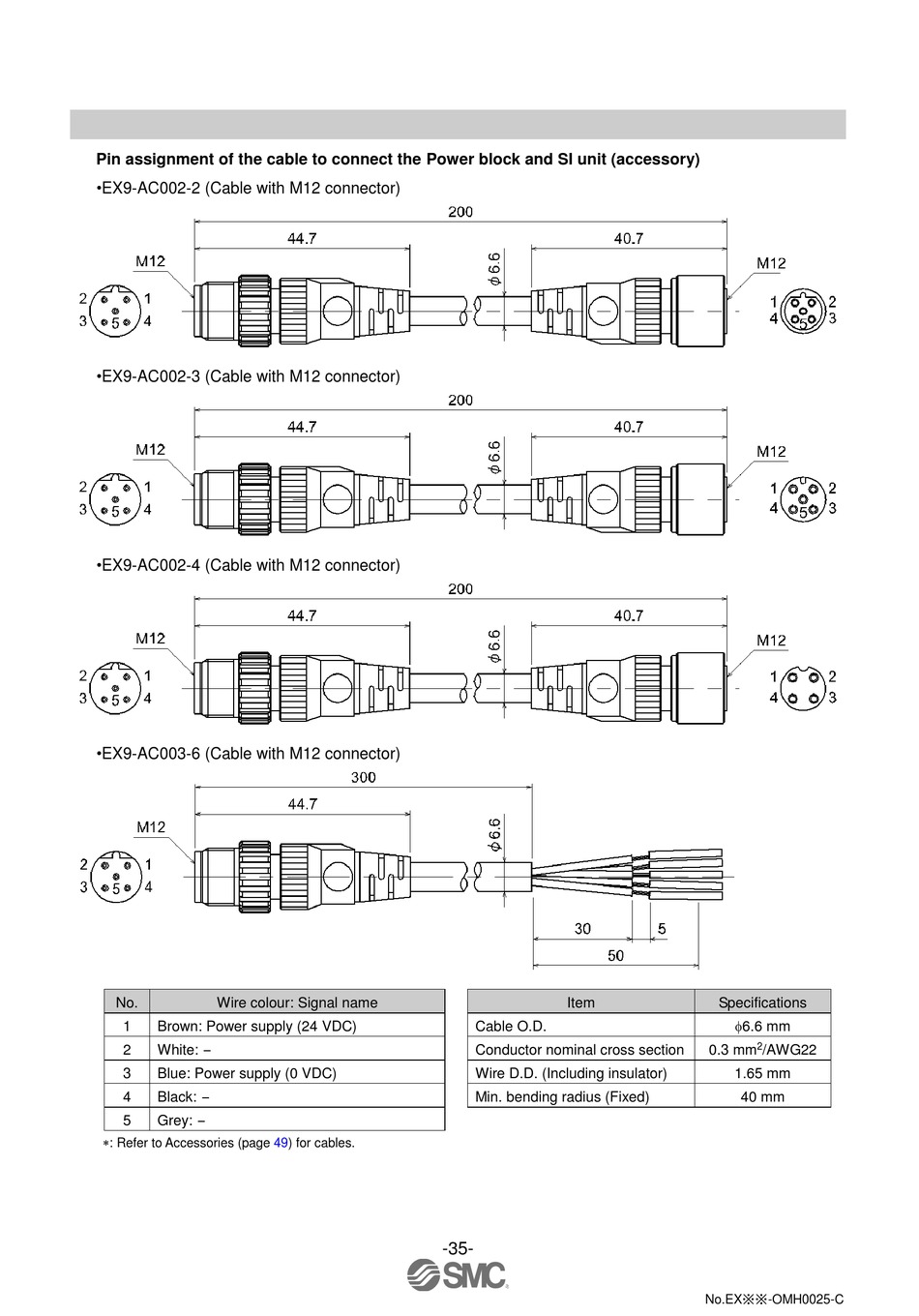

Pin assignment of the cable to connect the Power block and SI unit (accessory)
•EX9-AC002-2 (Cable with M12 connector)
•EX9-AC002-3 (Cable with M12 connector)
•EX9-AC002-4 (Cable with M12 connector)
•EX9-AC003-6 (Cable with M12 connector)
No. Wire colour: Signal name
1 Brown: Power supply (24 VDC)
2 White: -
3 Blue: Power supply (0 VDC)
4 Black: -
5 Grey: -
: Refer to Accessories (page 49) for cables.
Item
Cable O.D.
Conductor nominal cross section
Wire D.D. (Including insulator)
Min. bending radius (Fixed)
-35-
Specifications
6.6 mm
2
0.3 mm /AWG22
1.65 mm
40 mm
