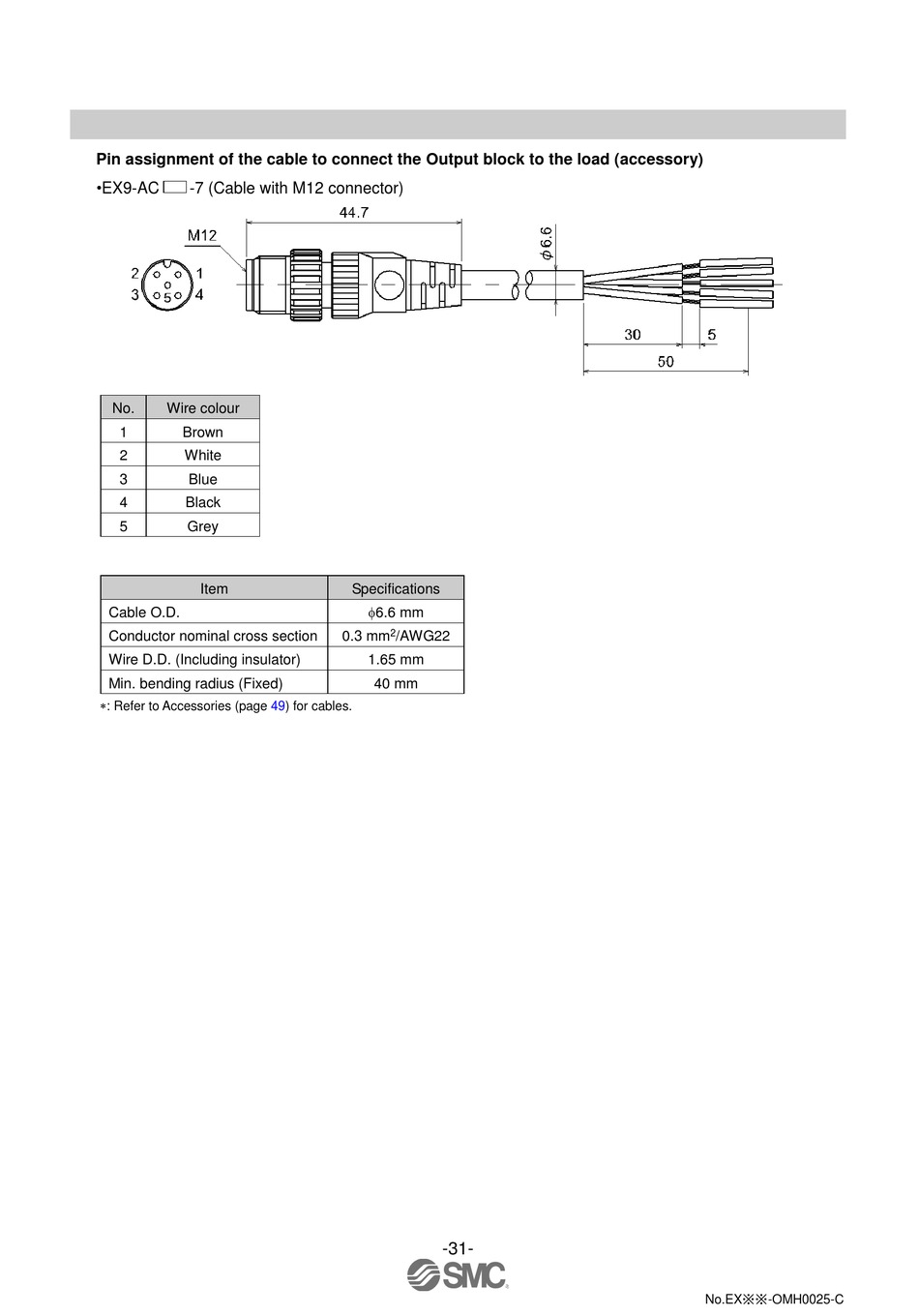

Pin assignment of the cable to connect the Output block to the load (accessory)
•EX9-AC
-7 (Cable with M12 connector)
No. Wire colour
1 Brown
2 White
3 Blue
4 Black
5 Grey
Item
Cable O.D.
Conductor nominal cross section
Wire D.D. (Including insulator)
Min. bending radius (Fixed)
: Refer to Accessories (page 49) for cables.
Specifications
6.6 mm
2
0.3 mm /AWG22
1.65 mm
40 mm
-31-
No.EX※※-OMH0025-C
