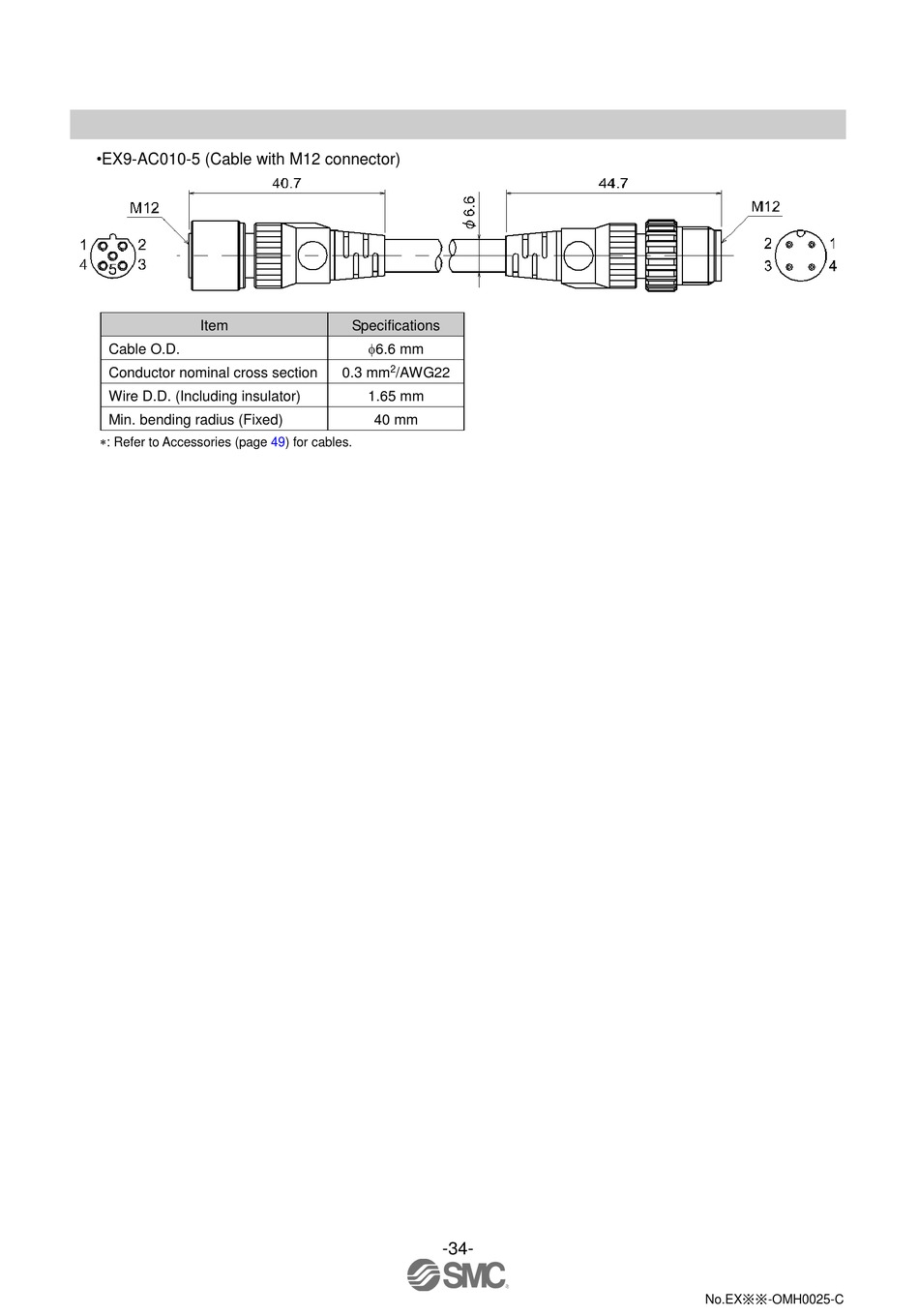

•EX9-AC010-5 (Cable with M12 connector)
Item
Cable O.D.
Conductor nominal cross section
Wire D.D. (Including insulator)
Min. bending radius (Fixed)
: Refer to Accessories (page 49) for cables.
Specifications
6.6 mm
2
0.3 mm
/AWG22
1.65 mm
40 mm
-34-
No.EX※※-OMH0025-C
