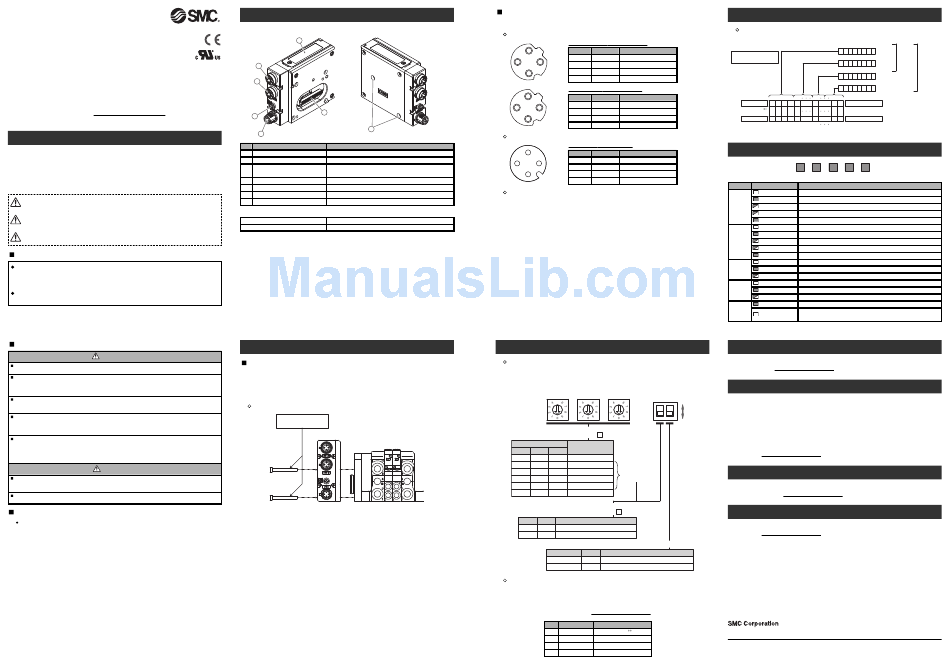

SMC Networks EX260 Series Operation Manual

Fieldbus device
Operation Manual
EX260 Series for EtherNet/IP TM
Thank you for purchasing an SMC EX260 Series Fieldbus device (Hereinafter
referred to as "SI unit" ).
Please read this manual carefully before operating the product and make sure you
understand its capabilities and limitations.
Please keep this manual handy for future reference.
To obtain more detailed information about operating this product, please
refer to the SMC website (URL http://www.smcworld.com) or contact SMC
directly.
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or
equipment damage.
These instructions indicate the level of potential hazard with the labels of
"Caution", "Warning" or "Danger". They are all important notes for safety and must
be followed in addition to International standards (ISO/IEC) and other safety
regulations.
Caution: CAUTION indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate injury.
WARNING indicates a hazard with a medium level of risk
Warning:
which, if not avoided, could result in death or serious injury.
DANGER indicates a hazard with a high level of risk which, if
Danger:
not avoided, will result in death or serious injury.
Operator
This operation manual is intended for those who have knowledge of machinery
using pneumatic equipment, and have sufficient knowledge of assembly,
operation and maintenance of such equipment. Only those persons are
allowed to perform assembly, operation and maintenance.
Read and understand this operation manual carefully before assembling,
operating or providing maintenance to the product.
Safety Instructions
Warning
Do not disassemble, modify (including changing the printed circuit board) or repair.
An injury or failure can result.
Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Verify the specifications before use.
Do not operate in an atmosphere containing flammable or explosive gases.
Fire or an explosion can result.
This product is not designed to be explosion proof.
If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical system.
•Check the product regularly for proper operation.
Otherwise malfunction can result, causing an accident.
The following instructions must be followed during maintenance:
•Turn off the power supply.
•Stop the air supply, exhaust the residual pressure and verify that the air is released before performing
maintenance.
Otherwise an injury can result.
Caution
After maintenance is complete, perform appropriate functional inspections.
Stop operation if the equipment does not function properly.
Safety cannot be assured in the case of unexpected malfunction.
Provide grounding to assure the safety and noise resistance of the Serial system.
Individual grounding should be provided close to the product with a short cable.
NOTE
The direct current power supply to combine should be UL1310 Class2 power
supply when conformity to UL is necessary.

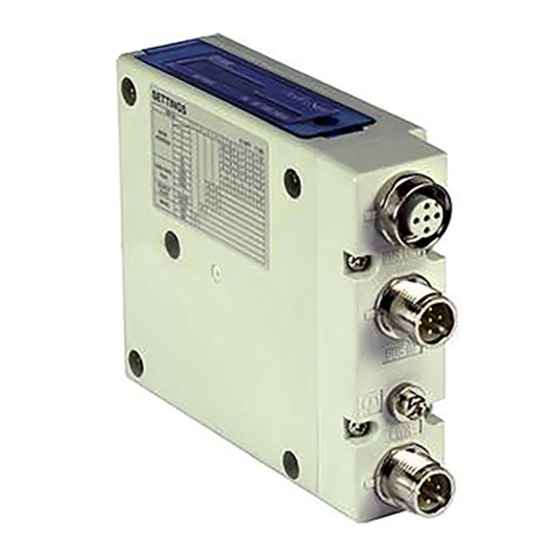

Summary of Product elements
<EX260-SEN1/-SEN2/-SEN3/-SEN4>
6
1
2
5
4
7
3
No. Element Description
1 Fieldbus interface connector (BUS OUT) EtherNet/IP TM connection PORT 2 (M12 4-pin socket, D-coded)
2 Fieldbus interface connector (BUS IN) EtherNet/IP TM connection PORT 1 (M12 4-pin socket, D-coded)
Power supply with load voltage for valves and operating voltage for SI unit
3 Power supply connector
(M12 4-pin plug, A-coded)
4 Ground terminal Functional earth (M3 screw)
5 Output connector Output signal interface for valve manifold
6 LED Bus status−specific and SI unit−specific LEDs
7 Mounting hole Mounting hole for connection to the valve manifold
Accessories
Hexagon socket head cap screw 2 pcs. M3 x 30 screw for connection to the valve manifold
Seal cap 1 pc. seal cap for unused fieldbus interface connector (BUS OUT)
Installation
General instructions on installation and maintenance
Connect valve manifold to the SI unit.
Connectable valve manifolds are the same as for EX250 series SI unit.
Refer to the EX250 series valve manifold section in the valve catalogue for valve
manifold dimensions.
Assembly and disassembly of the SI unit
M3 hexagon screw
Tightening torque 0.6 Nm
∗: Thread size: M3 x 30
Valve manifold
Replacement of the SI unit
•Remove the M3 hexagon screws from the SI unit and release the SI unit from the
valve manifold.
•Replace the SI unit.
•Tighten the screws with the specified tightening torque. (0.6 Nm)
Precautions for maintenance
•Be sure to switch off the power.
•Check there is no foreign matter inside the SI unit.
•Check there is no damage and no foreign matter on the gasket.
•Be sure to tighten the screws with the specified torque.
If the SI unit is not assembled properly, inside PCBs may be damaged or liquid and/or
dust may enter into the unit.
Connecting cables
Select the appropriate cables to mate with the connectors mounted on the SI unit.
Fieldbus interface connector layout
BUS OUT: M12 4-pin socket D-coded
1
No. Designation Description
4
1 TD+ Transmit Data +
2
2 RD+ Receive Data +
3
3 TD- Transmit Data -
4 RD- Receive Data -
BUS IN: M12 4-pin socket D-coded
1
No. Designation Description
4
2
1 TD+ Transmit Data +
2 RD+ Receive Data +
3
3 TD- Transmit Data -
4 RD- Receive Data -
Power supply connector layout
PWR: M12 4-pin plug A-coded
3
No. Designation Description
4 2
1 SI24 V +24 V for SI unit operation
2 SV24 V +24 V for solenoid valve
1
3 SI0 V 0 V for SI unit operation
4 SV0 V 0 V for solenoid valve
Ground terminal
Connect the ground terminal to ground.
Resistance to ground should be 100 ohms or less.
Setting
Switch setting
The switches should only be set with the power supply turned off.
Open the cover and set the rotary switches and DIP switch with a small flat blade
screwdriver.
IP address x
x100 ×10 ×1
DIP SW
5 5 5
1 2
IP address
192.168. Y . X
Setting
X
×100 ×10 ×1
0 0 0 Remote control
0 0 1 1
0 0 2 2
Manual set up
of IP address
: : : :
2 5 4 254
2 5 5 DHCP mode
∗: The values of 256 or more are not used.
IP address
192.168. Y . X
Y No.1 Description
1 ON The IP address is set to "192.168.1.X.
0 OFF The IP address is set to "192.168.0.X.
HOLD/CLEAR setting
HOLD/CLEAR No.2 Description
HOLD ON Hold the last state before communication error.
CLEAR OFF Clear all outputs.
Configuration
In order to configure the SI unit for the EtherNet/IP TM network, the appropriate device
master file (EDS file) for the SI unit will be required.
Technical documentation giving detailed configuration information and the EDS file can
be found on the SMC website (URL http://www.smcworld.com).
EDS file
Model number EDS file
1 EX260-SEN1 ex260_sen1_24_v .eds
2 EX260-SEN2 ex260_sen2_24_v ** .eds
3 EX260-SEN3 ex260_sen3_22_v ** .eds
4 EX260-SEN4 ex260_sen4_22_v ** .eds
Setting
Output number assignment
Output numbering starts at zero and refers to the solenoid position on the manifold.
Bit: 7
0: Solenoid valve: OFF
Bit: 7
1: Solenoid valve: ON
Bit: 7
Bit: 7
Bit No. 0 2 4 6 0 0 4 6
Output No. 0 2 4 6 8 16 28 30 Solenoid on side A
Side D
(SI unit side)
Output No. 1 3 5 7 9 17 29 31 Solenoid on side B
Bit No. 1 3 5 7 1 1 5 7
Valve manifold
LED indication
NS MS L/A1 L/A2 PWR(V)
LED LED Status Description
OFF The SI unit operating voltage is not supplied or the IP address is not set.
Green ON EtherNet/IP TM communications established.
NS Green flashing EtherNet/IP TM communications not established.
Red flashing EtherNet/IP TM communications time out.
Red ON IP address duplicated.
OFF The SI unit operating valtage is not supplied.
Green ON Operating normally.
MS Green flashing Setting error.
Red flashing
Recoverable error.
Red ON
Unrecoverable error.
OFF
BUS IN side: No Link, No Activity
Green ON
L/A1 BUS IN side: Link, No Activity
Green flashing
BUS IN side: Link, Activity
OFF
BUS OUT side: No Link, No Activity
Green ON
L/A2 BUS OUT side: Link, No Activity
Green flashing
BUS OUT side: Link, Activity
Green ON
Load voltage for the valve is supplied
PWR(V)
Load voltage for the valve is not supplied or is outside the tolerance range
OFF
(19 V or less)
Troubleshooting
Technical documentation giving detailed troubleshooting information can be found on the
SMC website (URL http://www.smcworld.com).
Specifications
Connected load: 24 VDC Solenoid valve with surge voltage suppressor of 1.5 W or less
ON
(manufactured by SMC)
Current consumption of power supply for SI unit operation: 0.1 A max.
OFF
Ambient temperature for operation: -10 to 50 o C
Ambient temperature for storage: -20 to 60 o C
Pollution degree 3: (UL508)
Technical documentation giving detailed specification information can be found on the SMC
website (URL http://www.smcworld.com).
Outline Dimensions
Technical documentation giving detailed outline dimensions information can be found on
the SMC website (URL http://www.smcworld.com).
Accessories
Technical documentation giving detailed accessories information can be found on the SMC
website (URL http://www.smcworld.com).
URL http://www.smcworld.com
Akihabara UDX 15F, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, JAPAN
Phone: +81 3-5207-8249 Fax: +81 3-5298-5362
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
EtherNet/IP TM is a trademark of ODVA.
© 2012 SMC Corporation All Rights Reserved
0
Byte
0 Offset
16 outputs
0 Byte
type
1 Offset
32 outputs
0 type
Byte
2 Offset
0
Byte
3 Offset
