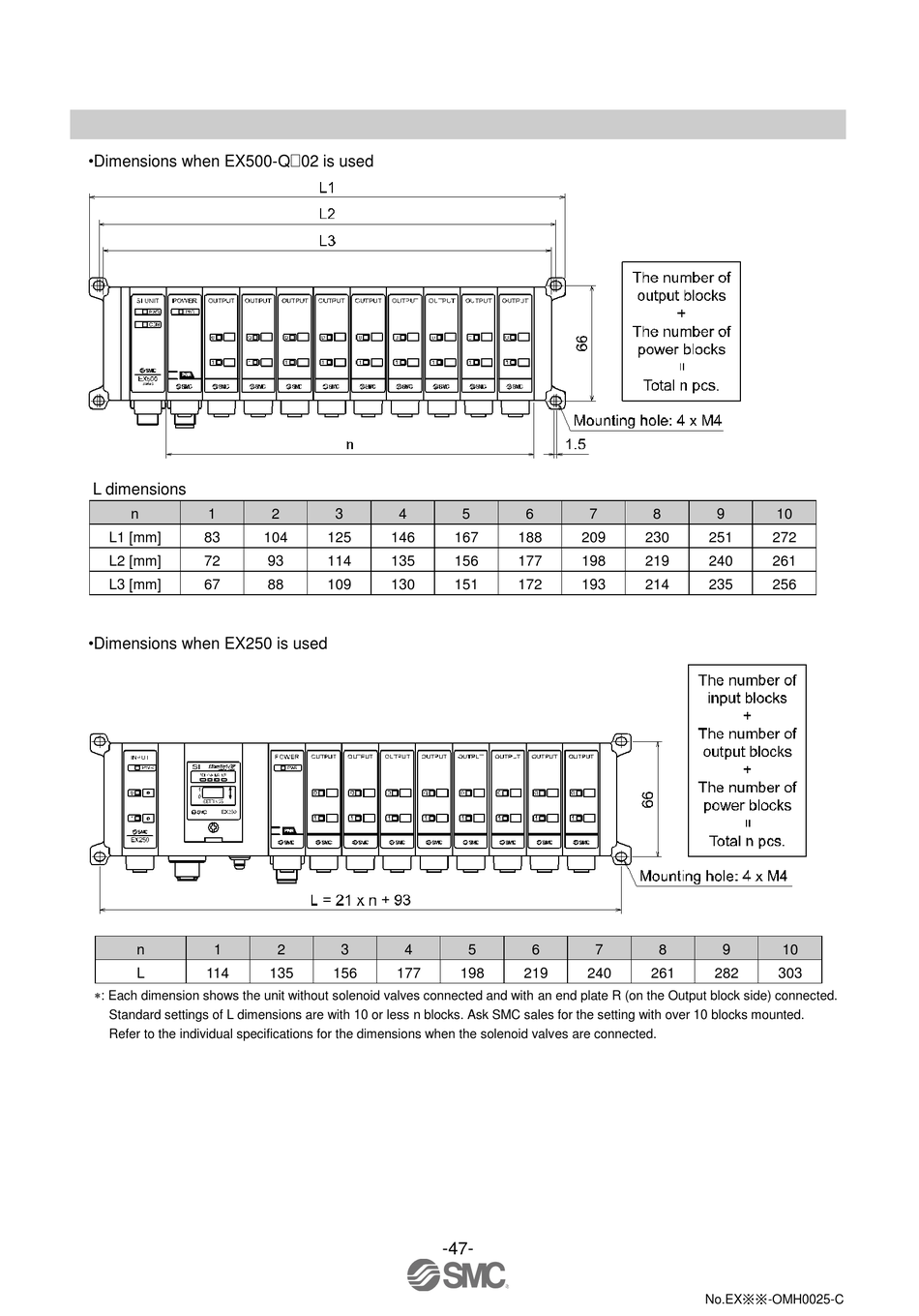

•Dimensions when EX500-Q 02 is used
L dimensions
n 1
L1 [mm] 83
L2 [mm] 72
L3 [mm] 67
•Dimensions when EX250 is used
n 1
L 114
: Each dimension shows the unit without solenoid valves connected and with an end plate R (on the Output block side) connected.
Standard settings of L dimensions are with 10 or less n blocks. Ask SMC sales for the setting with over 10 blocks mounted.
Refer to the individual specifications for the dimensions when the solenoid valves are connected.
2 3 4
104 125 146
93 114 135
88 109 130
2 3 4
135 156 177
5 6 7
167 188 209
156 177 198
151 172 193
5 6 7
198 219 240
-47-
8 9 10
230 251 272
219 240 261
214 235 256
8 9 10
261 282 303
