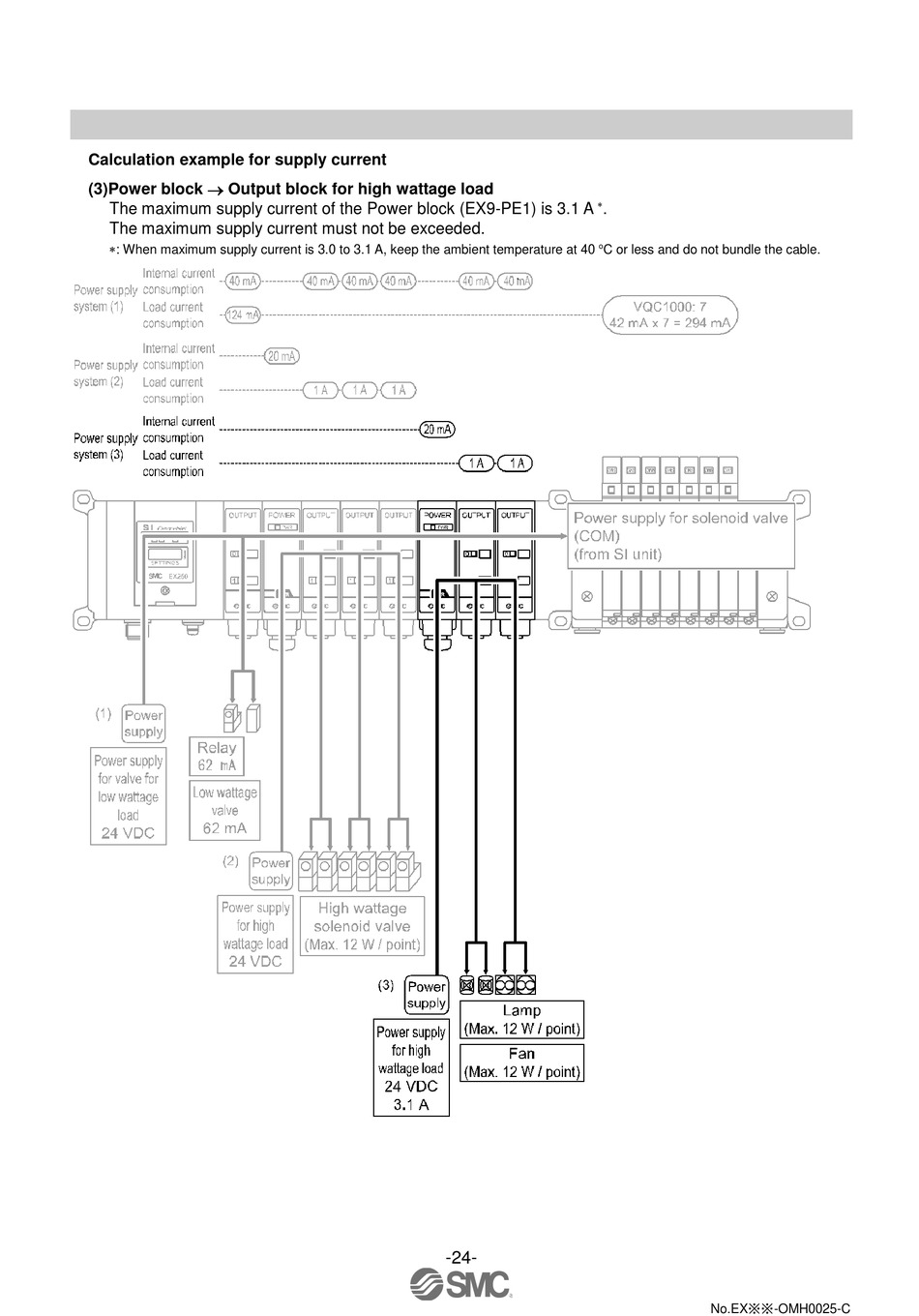

Calculation example for supply current
(3)Power block Output block for high wattage load
The maximum supply current of the Power block (EX9-PE1) is 3.1 A
The maximum supply current must not be exceeded.
: When maximum supply current is 3.0 to 3.1 A, keep the ambient temperature at 40
.
o
C or less and do not bundle the cable.
-24-
No.EX※※-OMH0025-C
