Technical data

18 Technical data
18.1

General information

Parameter
Ambient temperature:
Storage temperature:
Electrical connection:
Degree of protection:
Degree of contamination:
Overvoltage category:
Weight:
18.2

Electrical data

Fuses
Component
Mains fuse: 1.6 AT 250 VAC, 5 x 20 mm, H = high-performance fuses (high
switch-off capacity)
Output terminal XP1 fuse: 10 AT, 250 VAC, 5 x 20 mm; H = high-performance
fuses (high switch-off capacity).
Maximum load: 8 A (due to ambient temperature of up to 50 °C)
Output relay XR4 fuse (relay 4), XR5 (relay 5, relay 6): 10 AT, 250 VAC, 5 x
20 mm, H = high-performance fuses (high switch-off capacity).
Maximum load: 8 A (due to ambient temperature of up to 50 °C)
104
Value
-5 ... 50 °C (for use indoors or with a protective enclosure).
Requires a low voltage cable with a temperature resistance of ≧ 70 °C.
-20 ... 70 °C
90 ... 253 V AC, 50/60 Hz, 42 W
Wall-mounted: IP66/IP67 (closed) // IP20 (open)
3 (standard IEC 61010)
2 (DIN VDE 010/IEC publication 664)
approx. 7.5 kg with packaging and accessories.
approx. 4.67 kg without packaging and accessories.
The electrical data for the individual modules can be found at
Ä Chapter 6.3.4 'Terminal diagram' on page 47 .

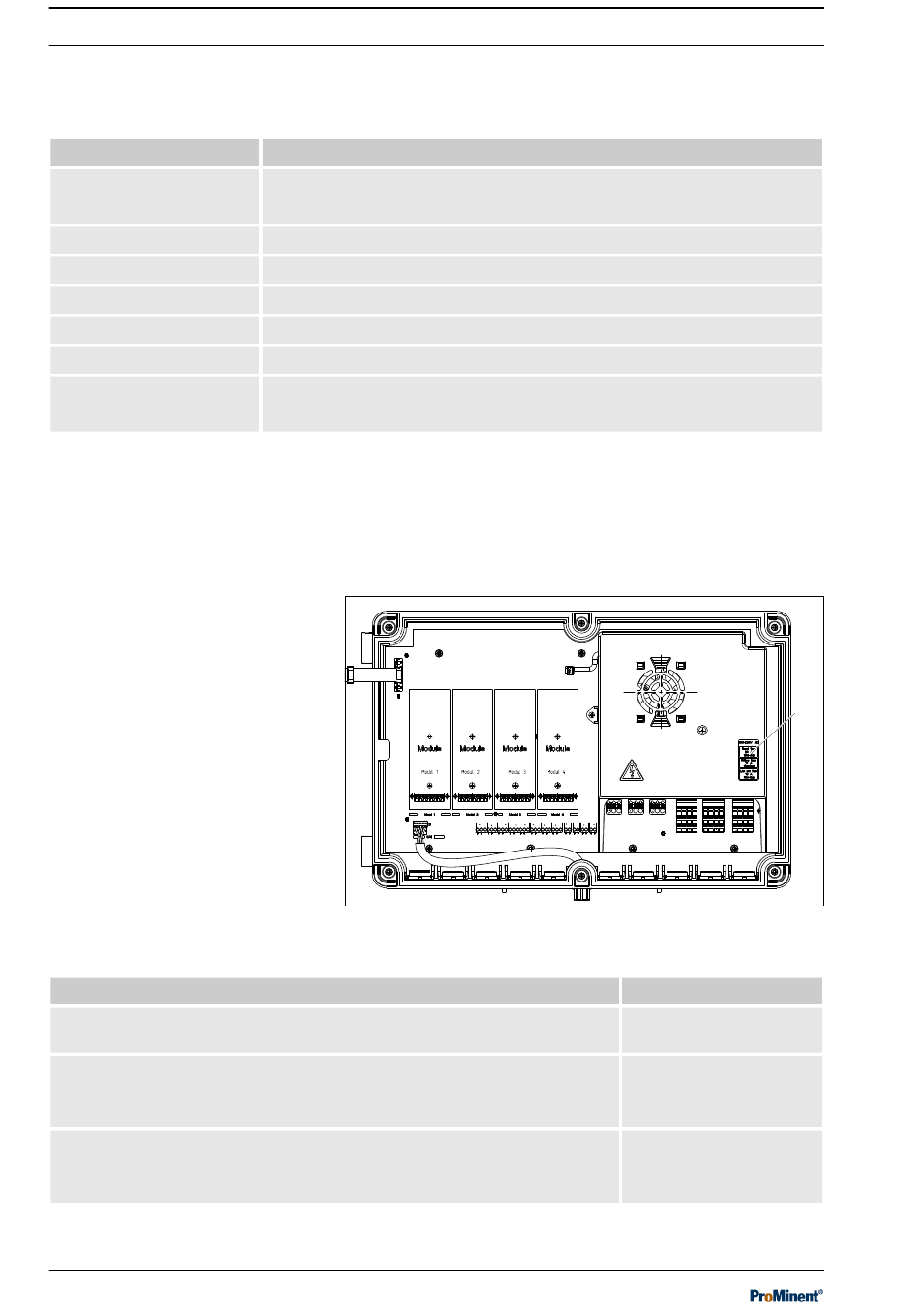

Fig. 57: Fuses (1)
1
Part number
732411
733855
733855
A2602
