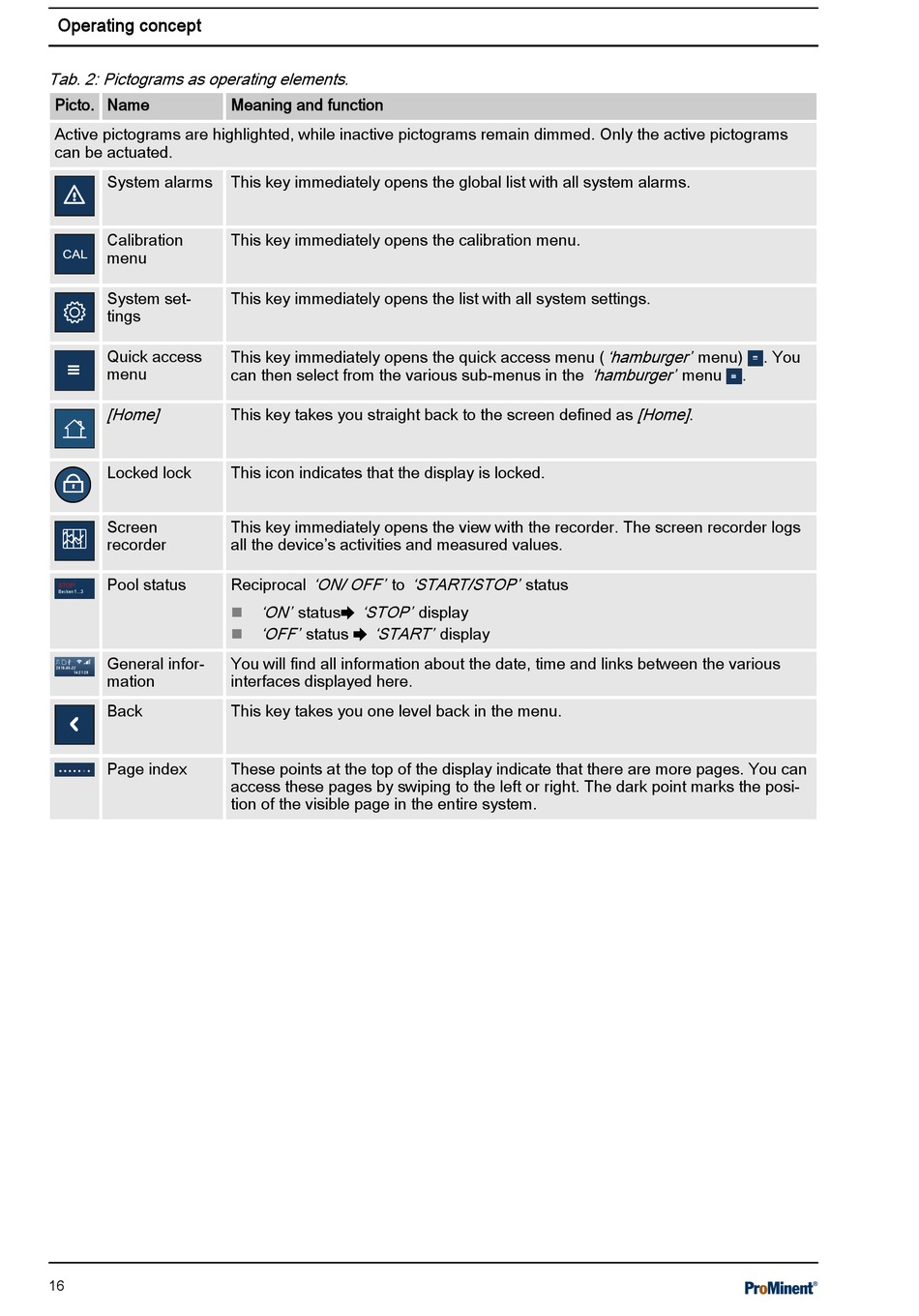

Operating concept
Tab. 2: Pictograms as operating elements.
Picto. Name
Active pictograms are highlighted, while inactive pictograms remain dimmed. Only the active pictograms
can be actuated.
System alarms
Calibration
menu
System set‐
tings
Quick access
menu
[Home]
Locked lock
Screen
recorder
Pool status
Becken 1...3
General infor‐
2018-06-22
14:21:28 mation
Back
Page index
16
Meaning and function
This key immediately opens the global list with all system alarms.
This key immediately opens the calibration menu.
This key immediately opens the list with all system settings.
This key immediately opens the quick access menu (
can then select from the various sub-menus in the
This key takes you straight back to the screen defined as
This icon indicates that the display is locked.
This key immediately opens the view with the recorder. The screen recorder logs
all the device's activities and measured values.
'ON/ OFF' to 'START/STOP' status
Reciprocal
'ON' status➨ 'STOP' display
n
'OFF' status ➨ 'START' display
n
You will find all information about the date, time and links between the various
interfaces displayed here.
This key takes you one level back in the menu.
These points at the top of the display indicate that there are more pages. You can
access these pages by swiping to the left or right. The dark point marks the posi‐
tion of the visible page in the entire system.
'hamburger' menu) . You
'hamburger' menu .
[Home] .
