Installation
5. Installation
5.1 Mounting
The linescanner protective housing requires a solid vibration-free mounting stand. The protective
housing comes with a mounting bracket, adjustable 90° in all 3 axes. To mount the protective housing
onto the sensor stand, e.g. on a tower, make a mounting plate with two 8.5 mm (0.31 in.) diameter
mounting holes, as shown below. The mounting bracket is 150 mm (5.9 in) high.
Protective Housing
Bottom view
Bottom view

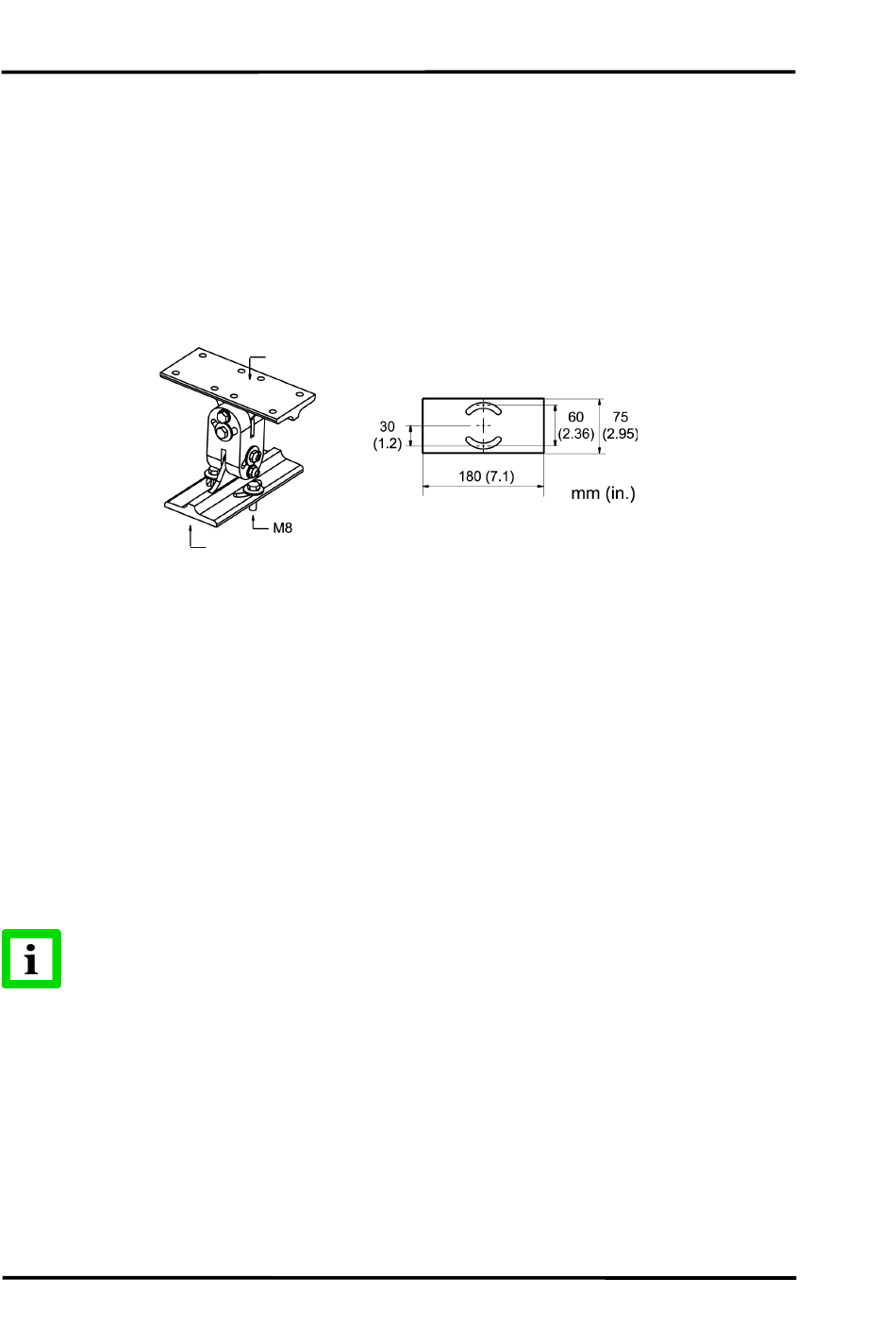

Figure 4: Protective housing's 3-axis mounting bracket
Preparing the protective housing to be mounted on the sensor stand
Open the protective housing from the back to access to the internal components. On the bottom of the
box, there is a rail/carrier system on which the linescanner will be mounted. Open the latches on both
sides of the rail, loosen the bolt on top of the carrier and take off the carrier. Mount the linescanner
onto the carrier using the 4 M6 x 12 screws provided. Connect the earth ground to the top of the
linescanner. To install the ground on the left mounting thread, use a M6 x 12 hex head screw with
washer and lock washer.
Mounting the protective channel and the window
Open the front door of the protective housing. Mount the protective field-of-view channel on the front
side by using 6 M4 x 12 bolts. The slotted side of the protection channel faces downwards. The bolts
must be inserted from inside the box (i.e. the nuts are outside).
Make sure that the drain hole for rain water in the protective channel faces downwards!
18
CS210
Rev. B4 Feb 2015
