Appendix – Technical Data

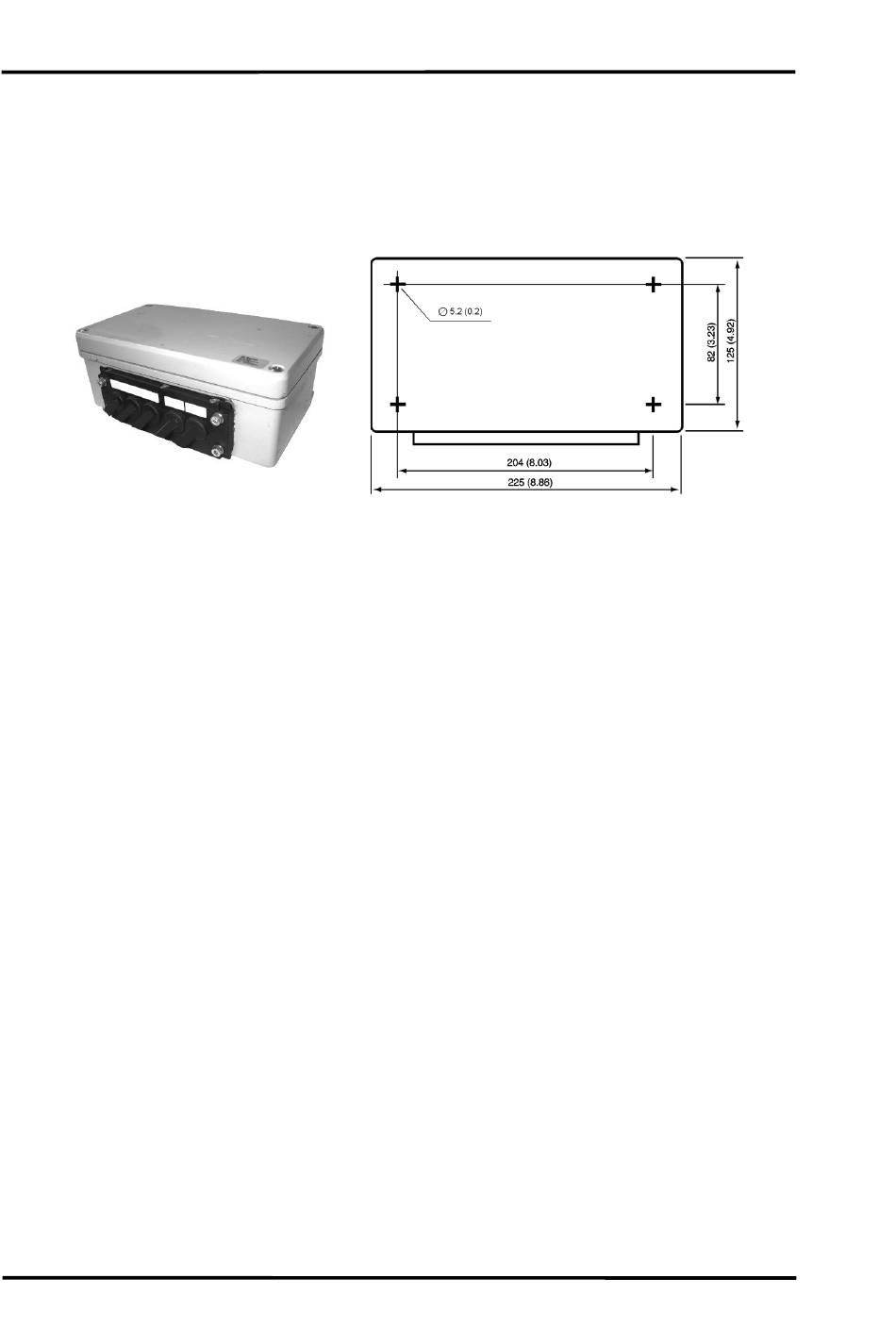

14.4 Connection Box for Accessories

The connection box connects the cables of a field device (shadow pyrometer, burning zone pyrometer,
or LRM) with the customer cables in the field.
All connection boxes come with the same housing but have different internal electrical wiring.
Part No.
XXXCS200MRCON
XXXCS200MICON
Technical Data:
Box
Cable Grommet Plate
Temperature Range
Dimensions (h x w x d)
Weight
Protection Rate:
Delivery:
130
Description
MR connection box (for Burning Zone Monitoring)
MI connection box (for Shadow Monitoring)
Aluminum die cast
Polyamide, halogen free and thermoplastic rubber
-40 to +80°C (-40°F to 168°F)
90 x 225 x 130 mm (3.54 x 8.85 x 5.11 in.)
1.8 kg (3.96 lb)
IP65 (NEMA 4)
Connection Box
Cable grommet plate
Set of grommets for different cable sizes
