13.8.1 Terminal Wiring W8

Position Indicator
(CS210)

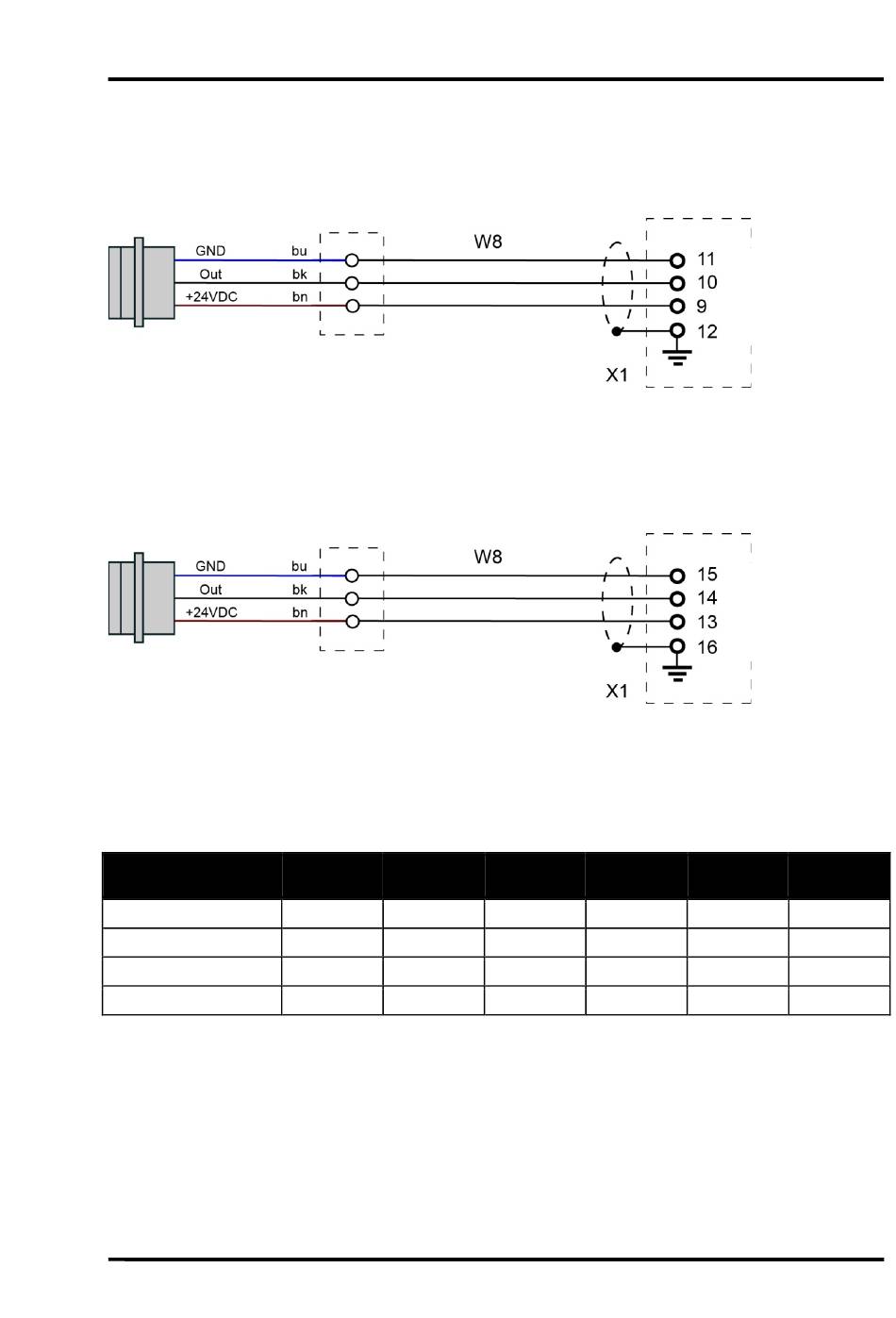

Figure 114: Terminal Wiring for the Position Indicator (Kiln Trigger)
Position Indicator
(LRM)
Figure 115: Terminal Wiring for the Position Indicator (Ring1)
W8 – Complete Terminal Wiring for all Position Indicators
Position Indicator
Shield
+ 24 VDC
Out
GND
CS210
Junction Box
Junction Box
Ring 1 Ring 2
Pin Pin
16 20
13 17
14 18
15 19
Rev. B4 Feb 2015
LRM Remote Control Box
LRM Remote Control Box
Ring 3 Ring 4
Pin Pin
24 28
21 25
22 26
23 27
Drawings
Kiln trigger ground
Kiln trigger input
Kiln trigger VDC
Shield
Ring1 ground
Ring1input
Ring1 VDC
Shield
Ring 5 Ring 6
Pin Pin
32 36
29 33
30 34
31 35
