10.8 Internal Heater

The internal heater is for the use in the system connection box for ambient temperatures below 0°C
(32°F).
The surface temperatures on the accessible side surfaces of the housing are kept down as a result of
the heater design. The heater comes with plug-in thermostat and is designed for permanent operation.
Technical data:
Voltage
Heating capacity
Wiring
Mounting
Fitting position
Operating temperature
Storage temperature
For more detailed information see section 13.4
94
100 to 240 VAC
max. 50 W (170 BTU/hour)
cable diameter max. 2.5 mm² (AWG 14)
DIN rail
vertical
-20 to 70°C (-4 to 158°F)
-45 to 70°C (-49 to 158°F)

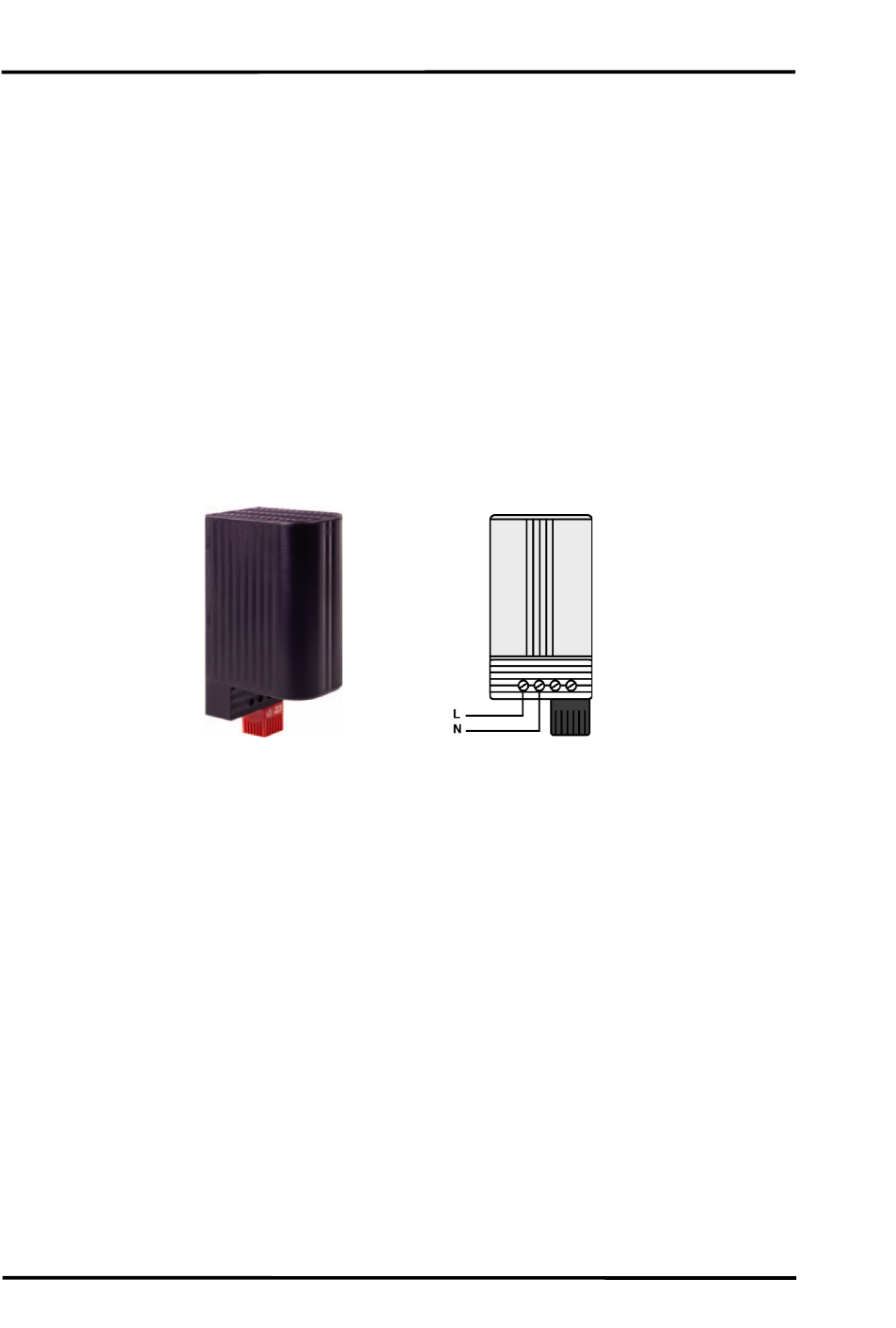

Figure 91: Internal Heater (left: photo, right: connection)
