Configuration

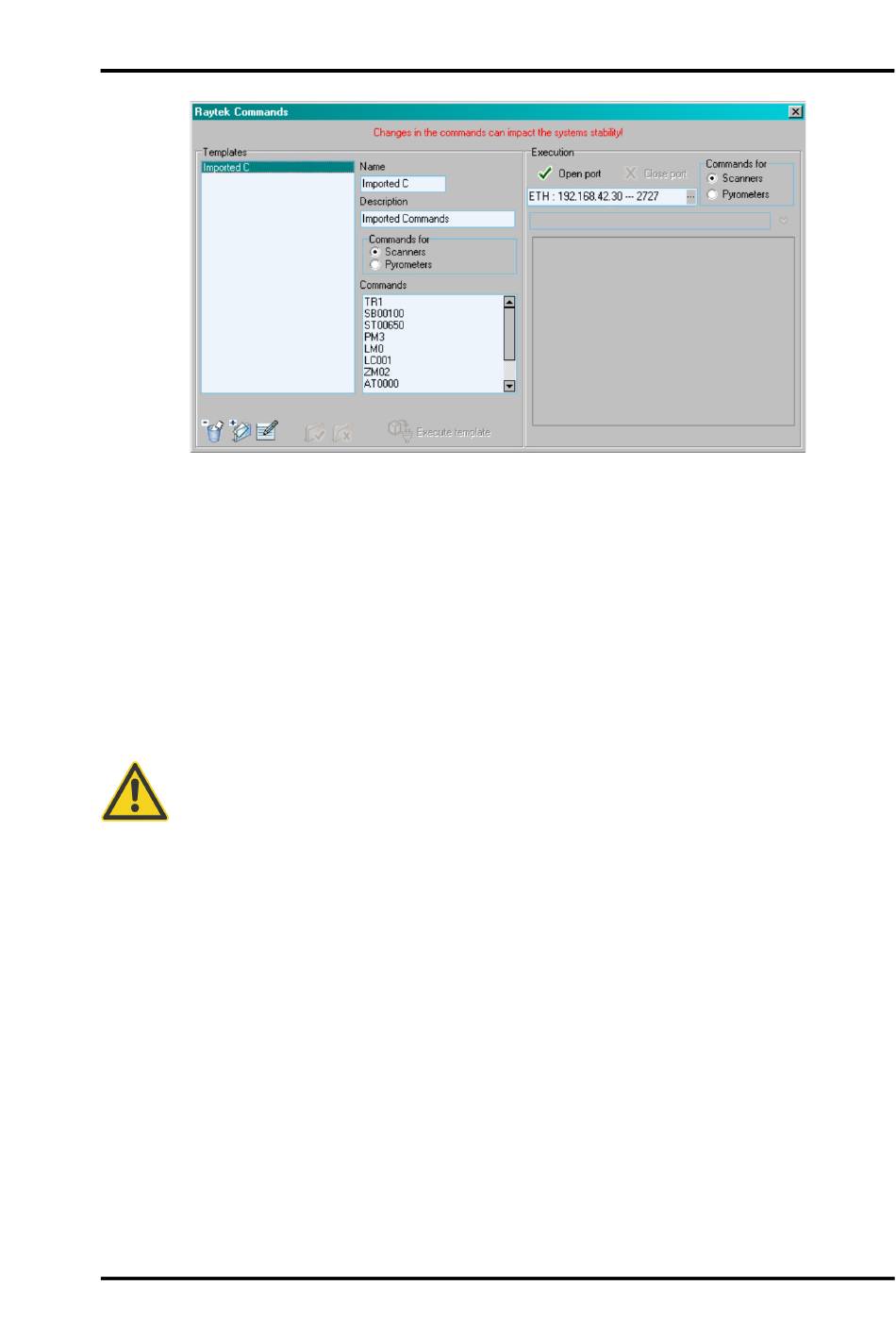

Figure 28: Window of Raytek Commands
In order to create a template you must enter the name, the description, and the commands to be
executed, indicating if such commands are for Scanners or for Pyrometers.
You will also be able to delete and modify these templates.
To execute a command group you must first select the template, the port and the connection speed.
After that, click on the button to open the port. Once the connection with the device has been
established, the <Execute template> button will be active.
It is also possible to send a single command to a device. In such a case, you need only to select the type
of device, the port and the connection speed. Then you will have to open the port and introduce the
command to be executed. Afterwards, click on the button to run it.
Wrong set commands can suspend the whole CS210 system!
6.2.6 <Alarm zones>

6.2.6.1 Repository of alarm zones configuration

Within the CS software platform, several alarm zone configurations can be defined to accommodate
different parameters of kiln operation. This screen shows all of the alarm zone configurations existing
in the system. Obviously, just one of them can be active at any given time selectable by the <Set active>
button.
The buttons along the lower toolbar are used to create new configurations, and also to edit or delete
existing ones.
