Colours And Axes Definition; Colors> Tab; Axes> Tab - RayTek CS210 Instruction Manual

Configuration
6.2.2 <Colours and axes definition>
6.2.2.1 <Colors> Tab
With this tabbed dialog box, the user can define their options for the thermogram colour palette. To
select colours, click on the RGB colours. <Scales> sets the number of colours to be included as the
palette colours. Blending is possible by selecting the <Color progression> option.
The <Range> value defines the temperature scale range of the temperature difference view in the CS
main software, see section 7.2.13 <Graphic> <Difference between images>, page 75.

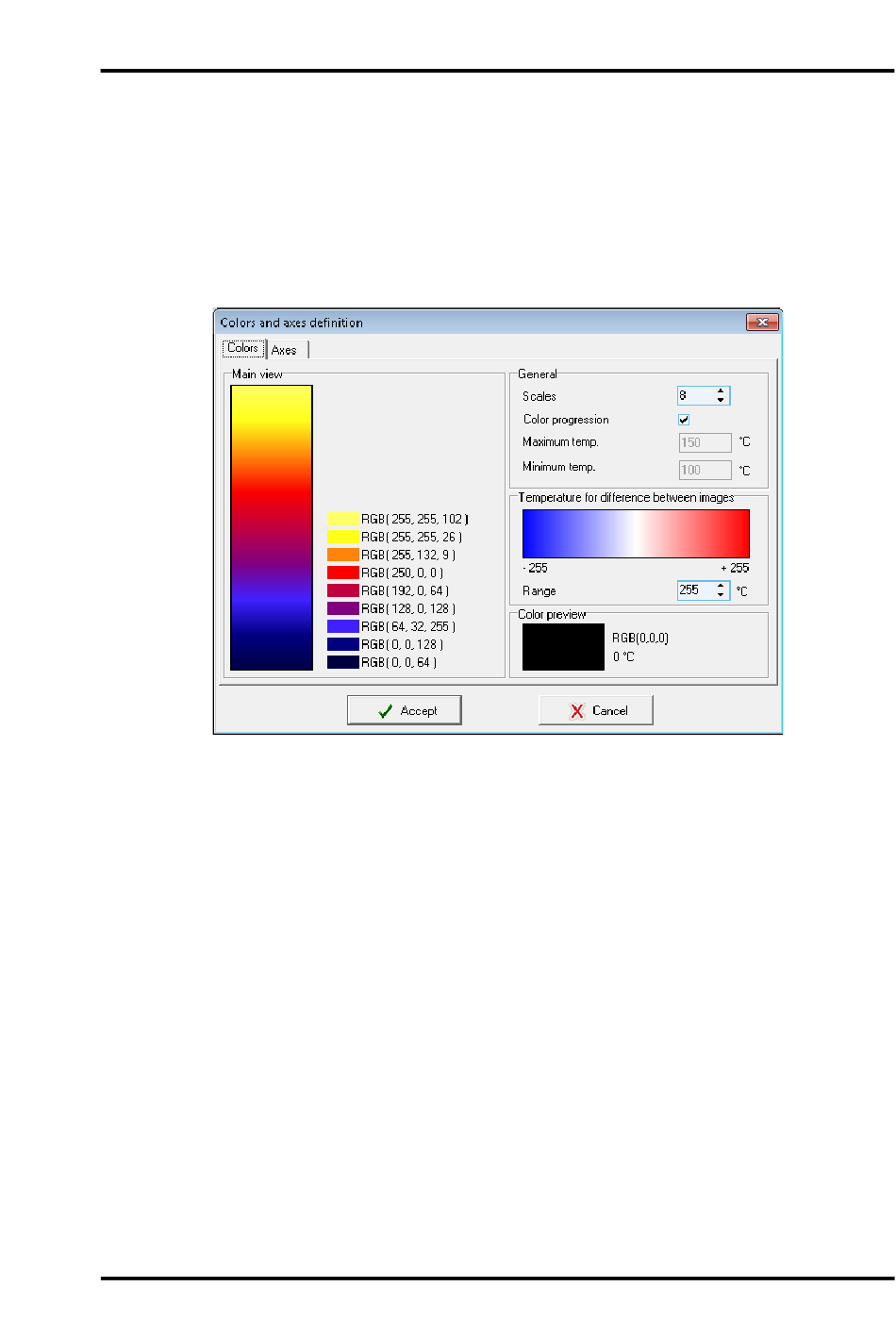

Figure 20: Colours and axes definition: <Colours> Tab
6.2.2.2 <Axes> Tab
This tab lets you configure the appearance for the different axes shown in the graphical representation
of the thermogram, as well as the units representing the kiln diameter.
It also lets you configure the type font used for the axes in the graphical representation of the
thermogram.
