images into the database. The <Real time> view shows scanned lines based on a simulated kiln speed
of <Rotation velocity>. The minimum kiln speed for synchronized measurements is 0.02 rpm.
A kiln speed below <Rotation velocity> and a missing trigger pulse are the two main
reasons for a non-synchronized alarm!
6.2.4 <Position of Scanners / Pyrometers>
On this screen the user configures the characteristics of the several devices (scanners and pyrometers)
that will be used to monitor the kiln temperature. Up to four scanners can be arranged to cover the
whole kiln shell.
The features for the different devices (scanners and pyrometers/shadow sensors) are displayed on the
screen on the basis of the type of device: the top-left area is assign to scanners, and the top-right one is
assign to pyrometers. The different devices and their positions are displayed on the centre of the
screen. However, there are few general parameters that must be modified from the screens shown
when clicking on the <Configuration> buttons.
Each pyrometer is only capable of triggering a single alarm zone. If the measurement spot of a
pyrometer is overlapping two alarm zones, only one will trigger. To avoid these kind of problems
ensure each pyrometer is aligned with a single alarm zone only.
The position of the scanners can be adapted very comfortable by using the mouse. For doing so, make
a right mouse click in the drawing area to open the context menu <Settings>. Being in that mode, the
left/right cursor keys can be used to change the Alpha angle dynamically.
CS210

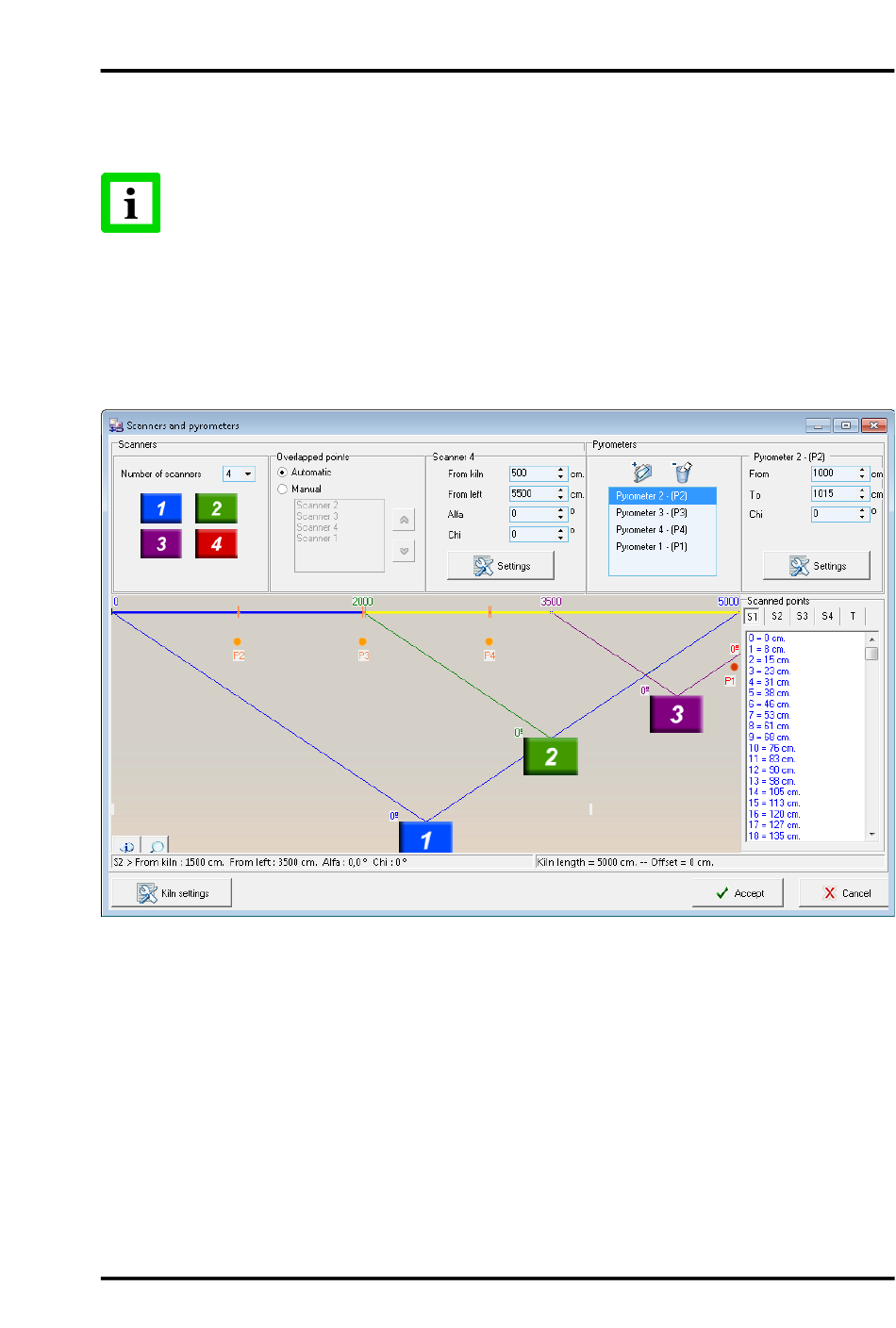

Figure 23: Scanners Position
