the circuit board in the communication box as shown in the figure below. To switch the shunt you
must first open the box lid.

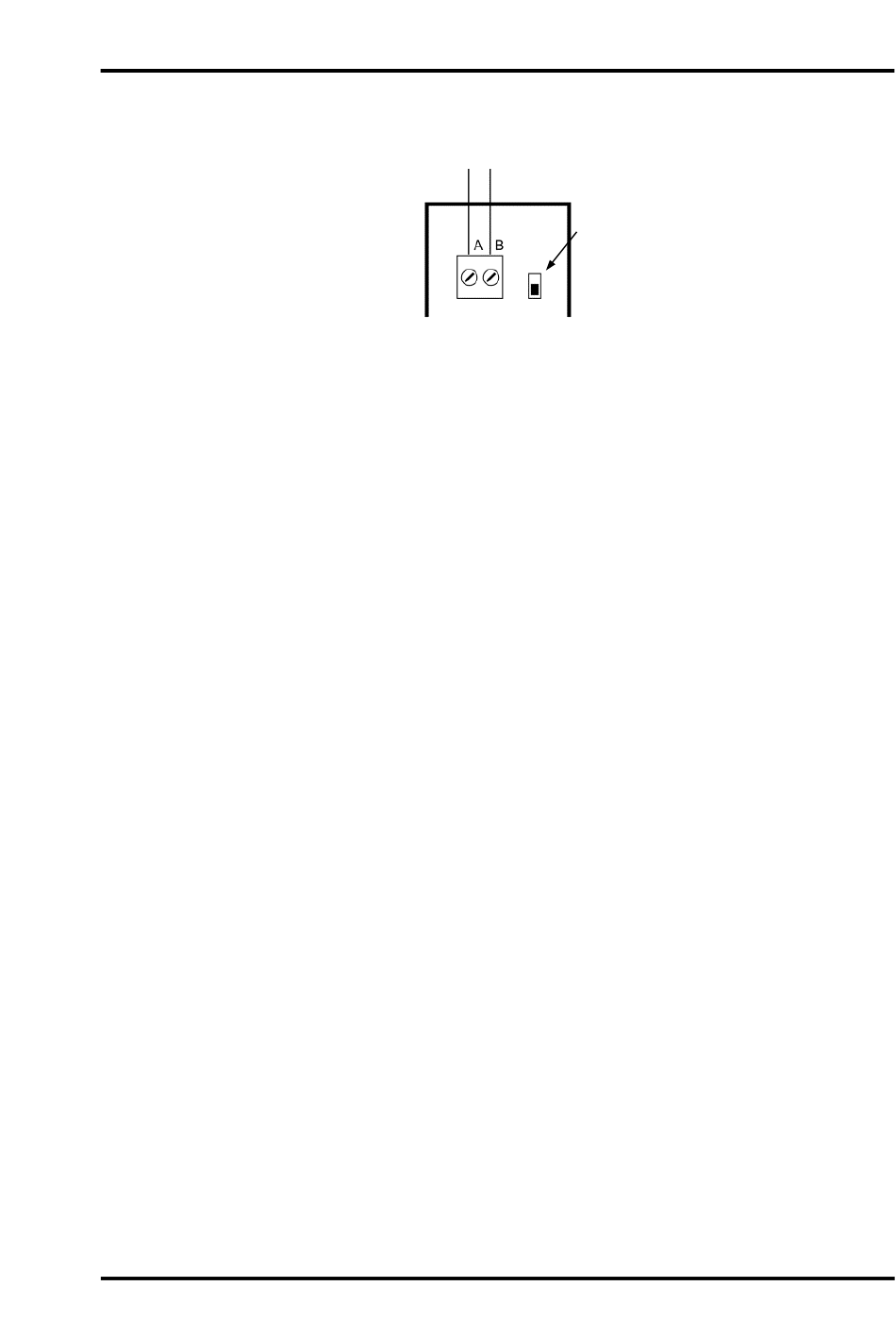

Figure 89: MI3 Circuit Board with Termination for Activating the Shunt
For detailed wiring of Shadow Monitoring see section 13.9
For recommended cables see section 4.5
Technical data:
Temperature range
Spectral response
Accuracy
Optical resolution
Head ambient temperature
Head cable length
Protection rate (head)
Digital interface
For other technical data see MI3 operators manual.
CS210
Shadow Monitoring
Cable Requirements, page 14.
-40 to 600°C (-40 to 1112°F)
8 to 14 µm
± (1% of reading or 1°C) whichever is greater
10 : 1 (90% energy)
0 to 180°C (32 to 356°F)
8 m (26 ft.)
IP65 (NEMA-4)
RS485
Rev. B4 Feb 2015
Accessories
Termination
Wiring, page 125.
