Appendix – Technical Data

14.6 Output Modules

Dimensions (W x L x H) 72 x 122 x 25 mm (2.8 x 4.8 x 1 in.)

14.6.1 Digital Output Module 7043 (16 channels)

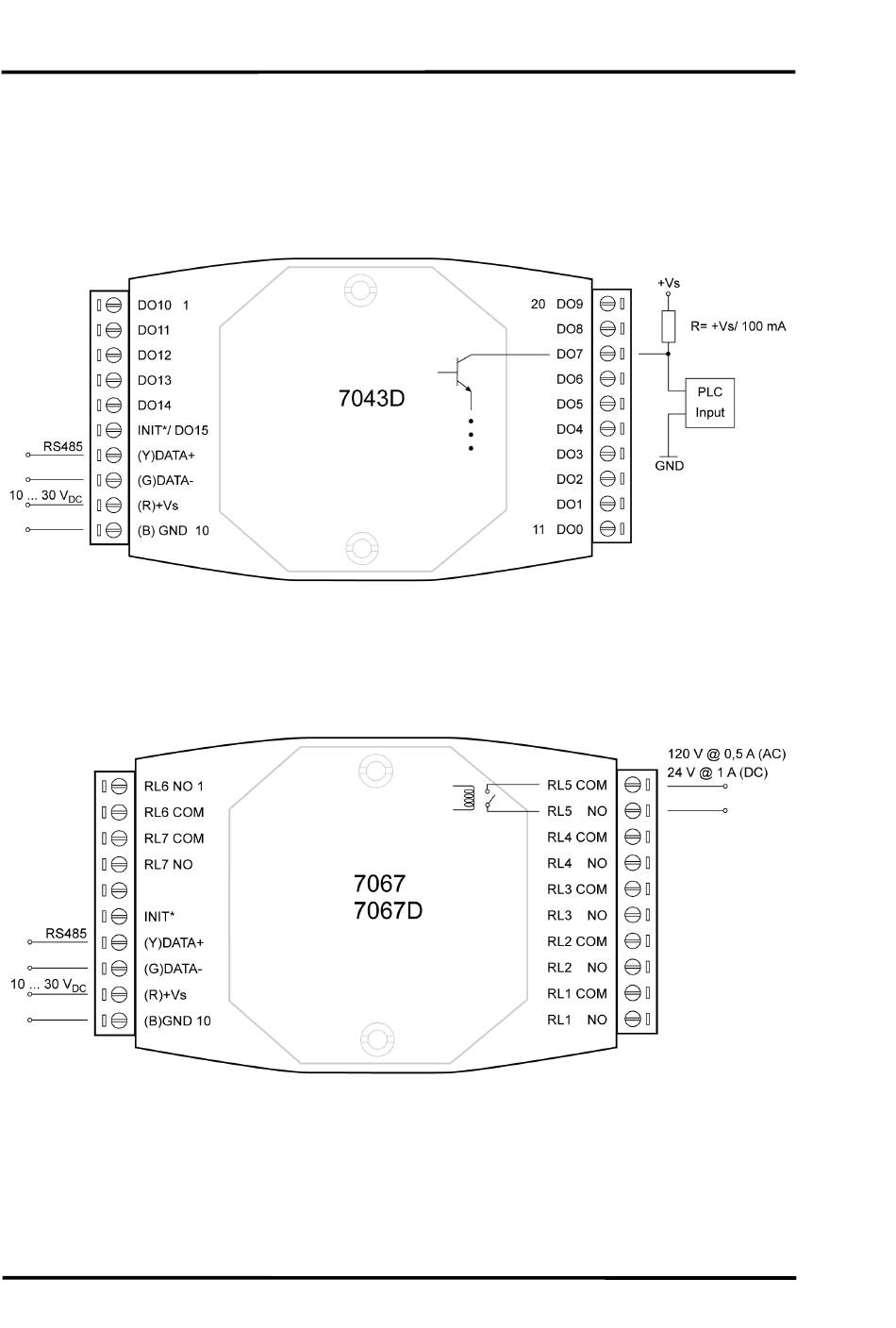

Figure 118: Wiring Example for connection to a PLC

14.6.2 Relay Output Module 7067 (7 channels)

Figure 119: Wiring the 7067 Module
