13.3 CS21x with Multiple Scanners

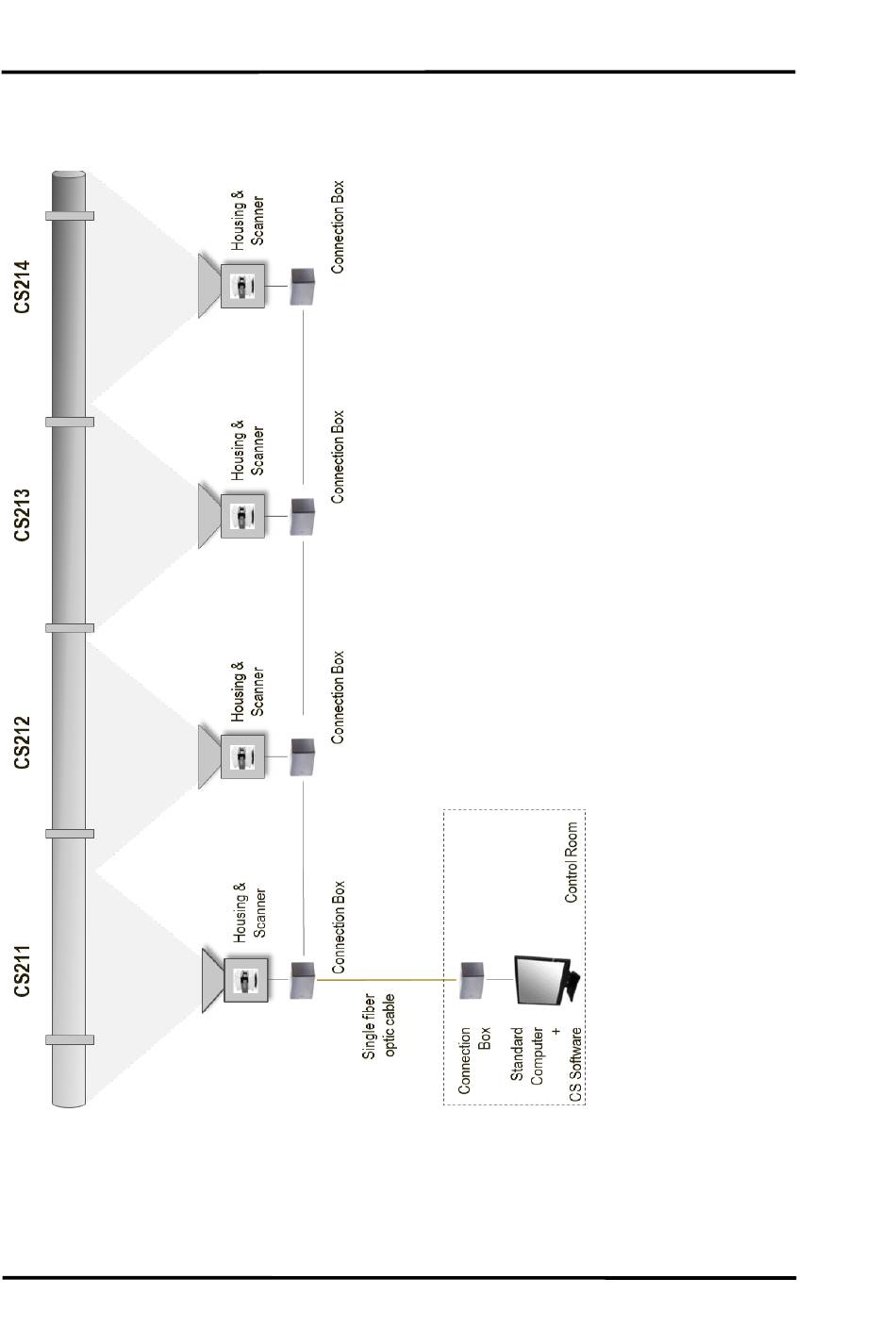

The drawing above shows the principle design of a CS21x system with up to 4 scanners. The detailed
wiring is the same for all scanners. The position indicator for the kiln can be connected to any of the
connection boxes.
