Fibre Optic Converter Box - RayTek CS210 Instruction Manual

Installation
Trigger bar
Adjustment of the position indicator:
1. Mount the trigger bar.
2. Mount the position indicator mounting plate .
3. Check the distance between position indicator and trigger bar.
4. Lock the position indicator in place and monitor its' operation. With each revolution of the
kiln you should obtain a trigger pulse indicated by an LED in the junction box (field).

5.5 Fibre Optic Converter Box

The Fibre Optic Converter Box is located in the control room and connects the fibre optic cable from
the field to the Ethernet interface of the computer. For more technical data, see section 14.2
Box, page 128.
24
Kiln axis

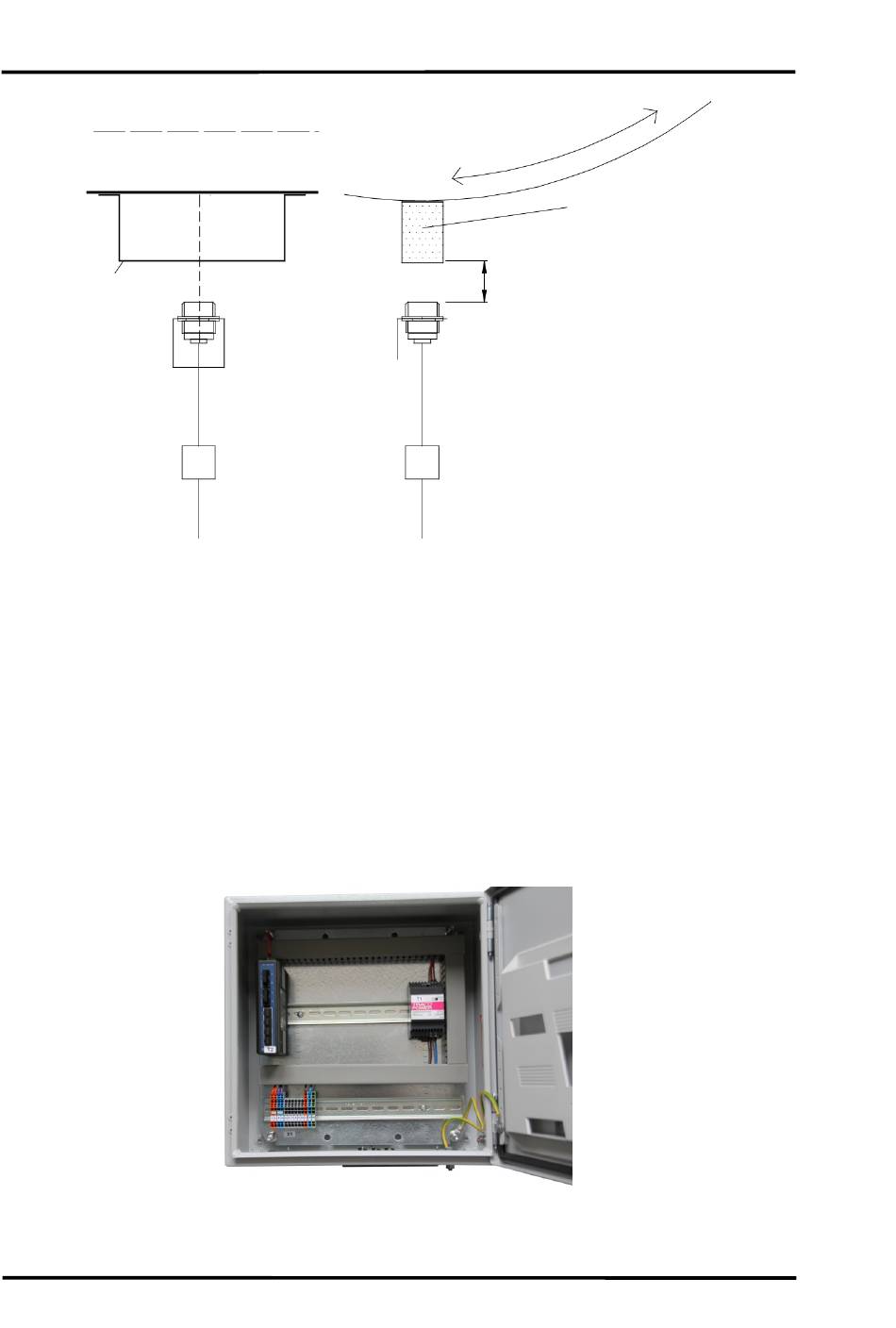

Figure 9: Mounting the Position Indicator
Figure 10: Fibre Optic Converter Box
Rev. B4 Feb 2015
Rotation
Kiln
Trigger bar
steel St37, sized 50 mm in
square (2.16 in. in square)
Distance: max. 20 mm (0.79 in.)
Position indicator with
mounting plate
PTFE cable, 5 m (15 ft.)
Junction box
Cable W8 to system connection box
Connection
CS210
