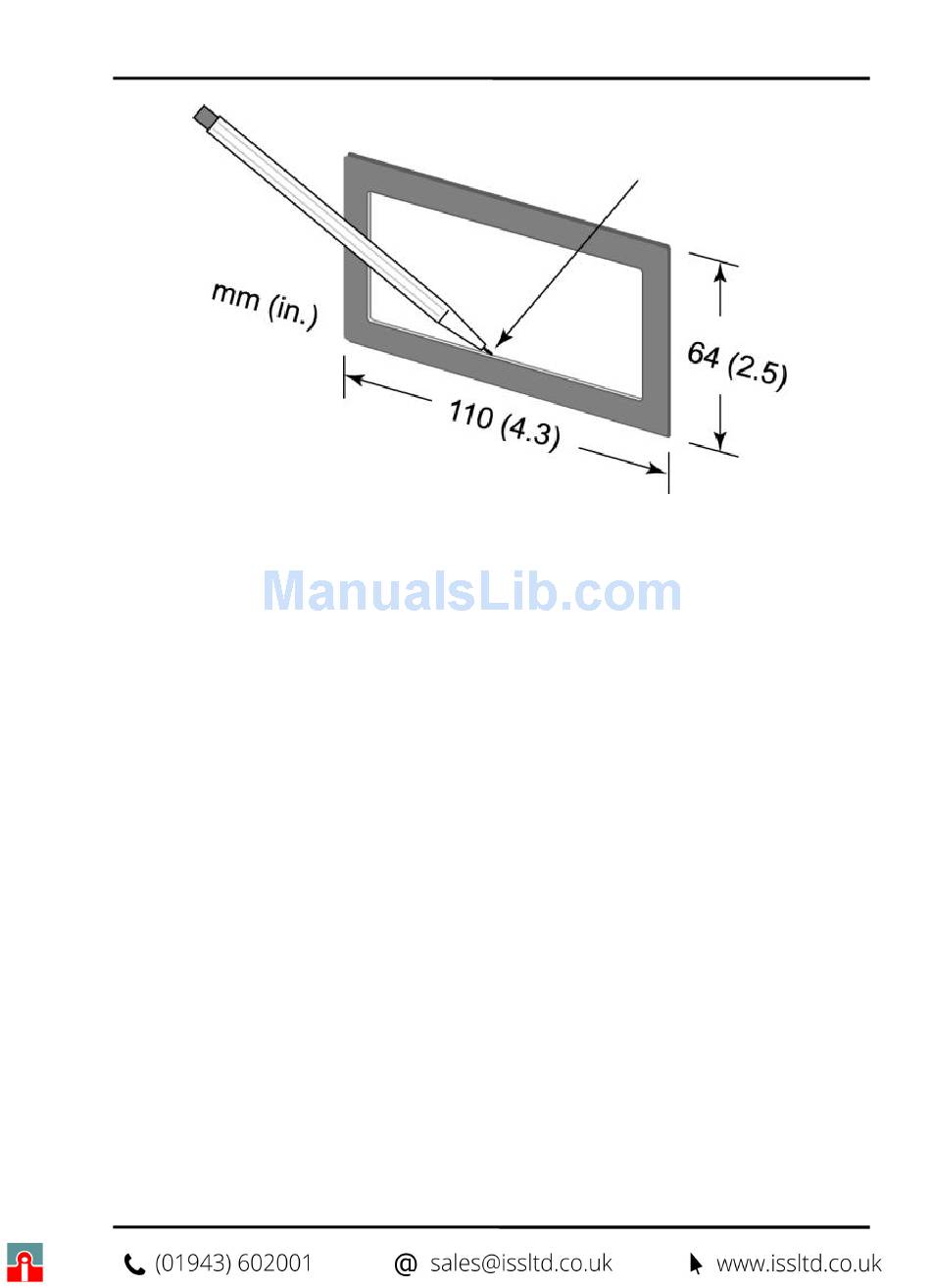

Figure 5: 1/8 DIN Cutout Template and Cosmetic Frame

3.3 Electrical Installation

3.3.1 Terminal Block Layout

Either soldered spade lugs or bare wires are acceptable for
connections.
GP Series
Rev. F 10/2011
GP Monitor
Mark around
inside edges
11
