4. Secure the monitor to the panel by tightening both fixing clamp screws
until the flanges are snug against the back surface of the panel.
5. Connect the terminal cable as described in the following section.
6. After you complete the electrical installation, secure the rear cover to the
back of the monitor. (Do not operate with rear cover removed because of
electrical shock hazard.)
2.3

ELECTRICAL INSTALLATION

2.3.1

Terminal Block Layout

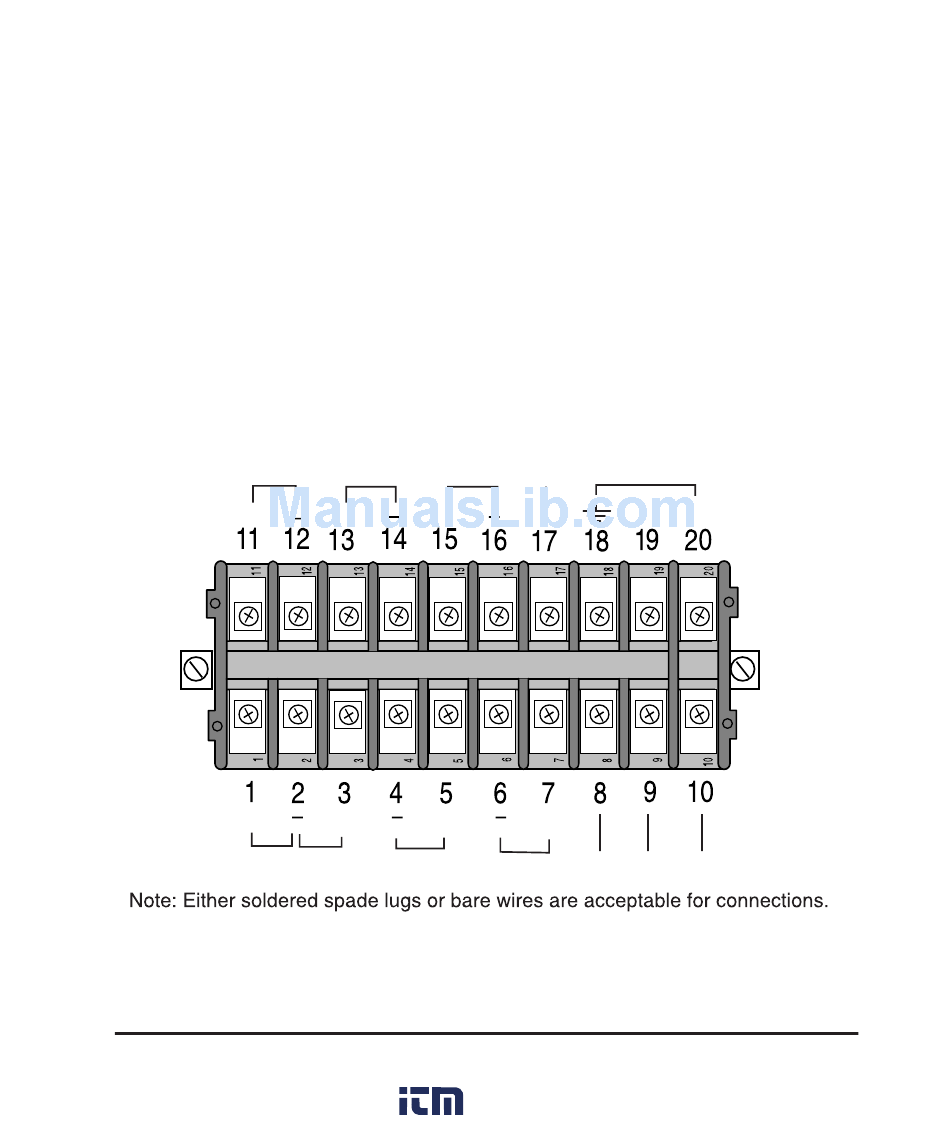

The terminal block layout is shown in Figure 3. (Terminal definitions are on
the following page.)
Thermalert GP Series Operator's Manual
1.800.561.8187
SP1 SP2
+ +
+ +
mA out TC out Input 1
Figure 3: Terminal Block Layout
www.
RST NC Power
+
+ +
Input 2 SHD 24V Input3
information@itm.com
.com
N H
