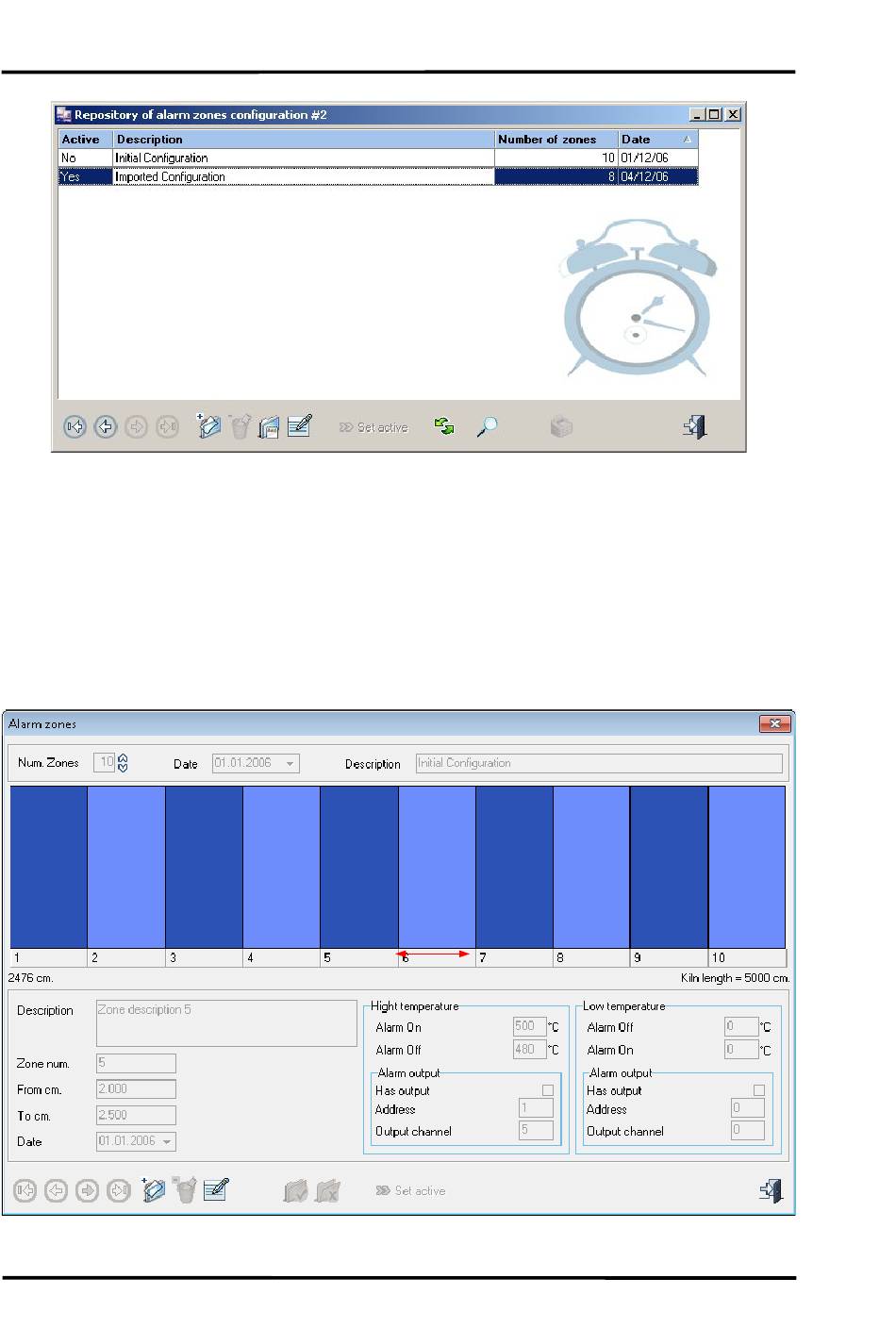

Figure 29: Managing of alarm zone configurations

6.2.6.2 Alarm Zone configuration detail

Clicking on any alarm zone configuration will open an Alarm Zone configuration detail screen. The
alarm zones will be displayed on a mimic diagram along with some basic configuration information
along the bottom of the screen. Click on any zone to see more detailed configuration information.
It is possible to adjust the size of a zone directly in that dialog box. To do this, you need to drag the
edges of the lower bar (adjacent to the Zone number) corresponding to the zone to be edited.
By a right mouse click an existing zone can be split into two ones.
Figure 30: Alarm zone configuration detail
