10.7 Burning Zone Monitoring

With Burning Zone Monitoring (XXXTCS200BZ) a two-color point sensor (MR ratio pyrometer) can be
installed looking into the burn zone of the kiln to monitor the temperatures in this very important
area. The two-color unit will essentially "see" through the smoke and other by-products of
combustion and the temperature reading will be displayed on the main screen.
For an overview of a system configured with Burning Zone Monitoring, see section 13.2
Installation with Accessories, page 115.
Delivery:
 MR ratio pyrometer, type: MR1SB
 MR connection box
 High temperature cable, 15 m
 ThermoJacket for MR pyrometer, with adjustable mounting bracket
 Blast gate assembly with quartz window
 Sighting tube, 30 cm length, stainless steel
 Adjustable pipe adapter assembly
 Air flow regulator
 Air pressure regulator
92

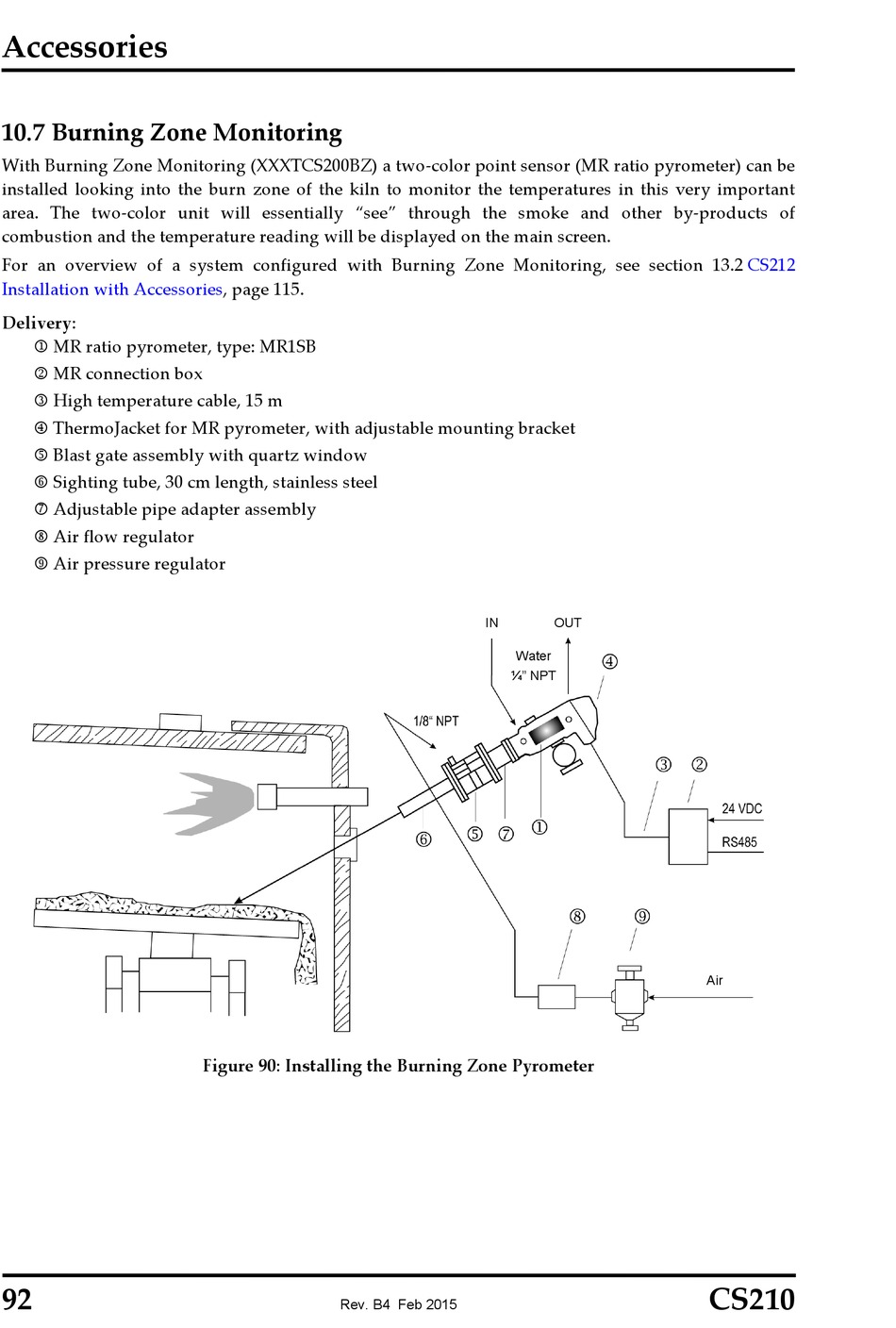

Figure 90: Installing the Burning Zone Pyrometer
